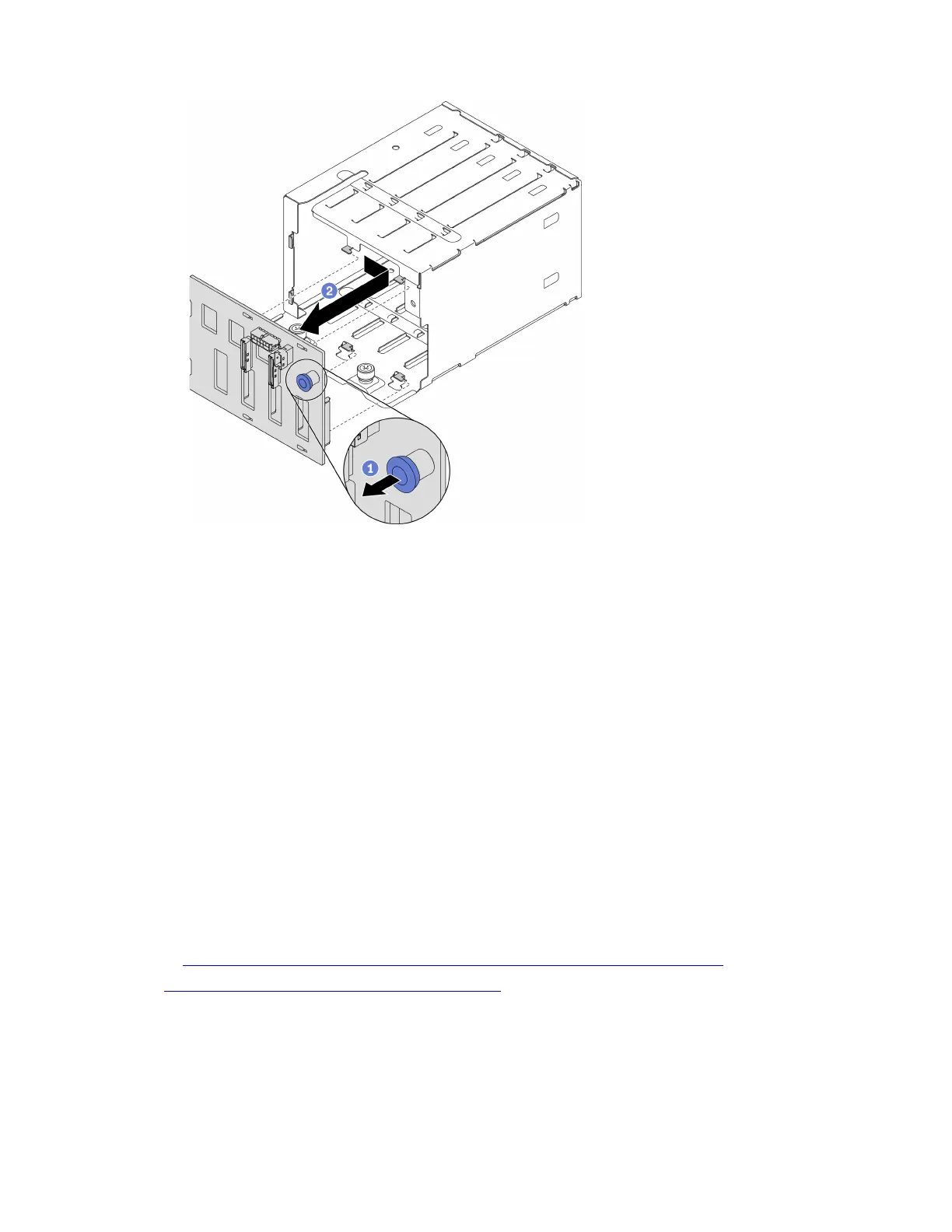

Figure 166. Removing the 3.5-inch drive backplane
After you finish
• Install a replacement unit. See “Install the 2.5-/3.5-inch drive backplane” on page 234.
• If you are instructed to return the component or optional device, follow all packaging instructions, and use
any packaging materials for shipping that are supplied to you.
Install the 2.5-/3.5-inch drive backplane
Follow instructions in this section to install the 2.5-inch or 3.5-inch drive backplane.
About this task
Attention:
• Read “Installation Guidelines” on page 121 and “Safety inspection checklist” on page 122 to ensure that
you work safely.
• Touch the static-protective package that contains the component to any unpainted metal surface on the
server; then, remove it from the package and place it on a static-protective surface.
Watch the procedure. A video of the installation and removal process is available:
• YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-BXei6L6c05osQVLt4w5XYx
• Youku: https://list.youku.com/albumlist/show/id_59636529
Procedure
Step 1. Based on your configuration, follow the corresponding procedures to install the 2.5-inch or 3.5-inch
drive backplane.
Install the 2.5-inch drive backplane:
234
ThinkSystem SR670 V2 Maintenance Manual
