After you finish
• Install a replacement unit. See “Install the retimer assembly” on page 322.
• If you are instructed to return the component or optional device, follow all packaging instructions, and use
any packaging materials for shipping that are supplied to you.
• If you plan to recycle the component, see “Disassemble the retimer assembly for recycle” on page 365.
Install the retimer assembly
Follow instructions in this section to install the retimer assembly.
About this task
Attention:
• Read “Installation Guidelines” on page 121 and “Safety inspection checklist” on page 122 to ensure that
you work safely.
• Touch the static-protective package that contains the component to any unpainted metal surface on the
server; then, remove it from the package and place it on a static-protective surface.
Watch the procedure. A video of the installation and removal process is available:
• YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-BXei6L6c05osQVLt4w5XYx
• Youku: https://list.youku.com/albumlist/show/id_59636529

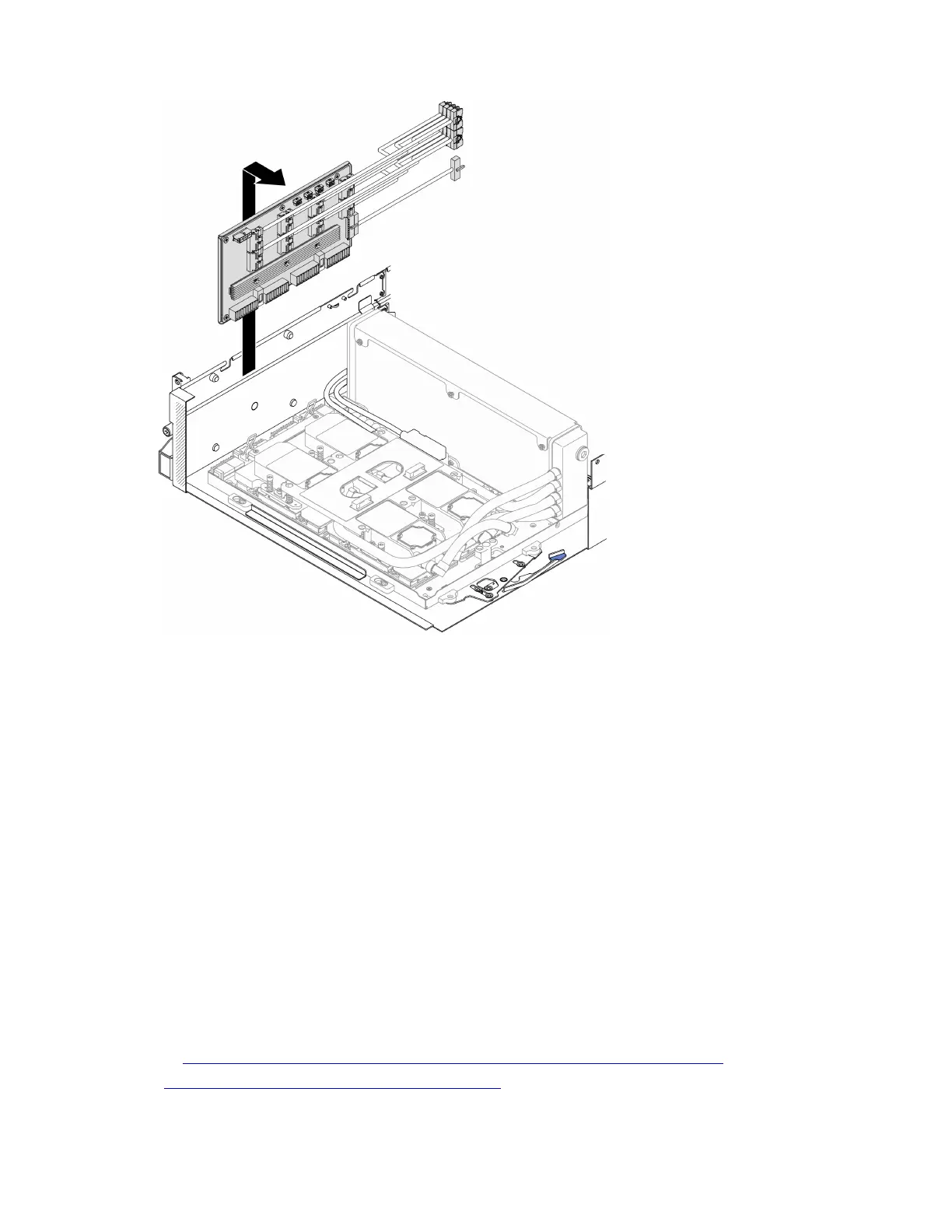

Procedure
322 ThinkSystem SR670 V2 Maintenance Manual
