4.3.2 Possible settings for error messages
Overview of the fault sources detected by the controller, and the corresponding reactions
The current error number is also displayed in the PLC program in the
variable
DCTRL_wFaultNumber .
Cause and remedy of a fault are described in Chapter 4.7, Troubleshooting and Fault elimination.

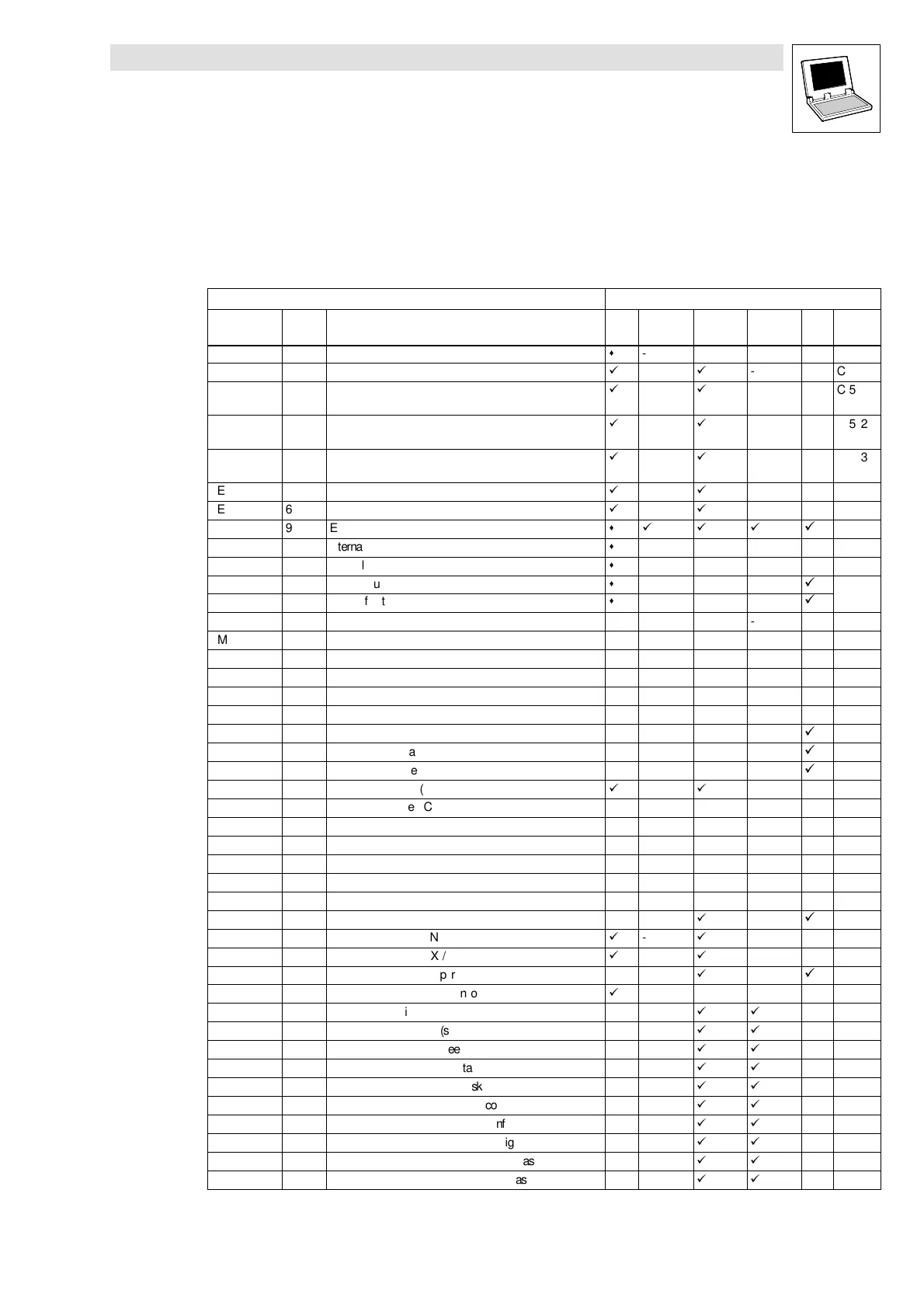

Fault message Possible settings / Reaction
Display Error
no.
Meaning TRIP Message War nin g Fault/
QSP
Off Code
CCr 71 System error s - - - - -
CE0 61 Communication error (AIF) á - á - w C0126
CE1 62 Communication error at the process data input object
CAN1_IN (time monitoring can be set under C0357/1)
á - á - w C0591
CE2 63 Communication error at the process data input object
CAN2_IN (timemonitoring can be set under C0357/2)
á - á - w C0592
CE3 64 CE3 Communication error at the process data input object
CAN3_IN (timemonitoring can be set under C0357/3)
á - á - w C0593
CE4 65 BUS-OFF state (many communication errors occurred) á - á - w C0595
CE5 66 CAN Time-Out á - á - w C0306
EEr 91 External monitoring s á á á á C0581
H05 105 Internal error s - - - - -
H07 107 Internal error s - - - - -
H10 110 Sensor fault: heat sink temperature s - - - á C0588
H11 111 Sensor fault: indoor temperature s - - - á
LU 30 Undervoltage - w - - - -
NMAX 200 Maximum speed exceeded (C0596) w - - - - -
OC1 11 Short circuit w - - - - -
OC2 12 Earth fault - w - - - - -
OC5 15 Ixtoverload w - - - - -
OH 50 Heat sink temperature 1 (max. permissible, fixed) w - - - - -
OH3 53 Motor temperature 1 (max. permissible, fixed) w - - - á C0583
OH4 54 Heat sink temperature 2 (adjustable; C0121) - - w - á C0582
OH7 57 Motor temperature 2 (can be set; code: C0121) - - w - á C0584
OH8 58 Motor temperature (fixed) via inputs T1/T2 á - á - - C0585
OU 20 Overvoltage in the DC bus - w - - - -
PEr 74 Program error w - - - - -
PI 79 Fault during initialization w - - - - -
PR0 75 General fault in parameter sets w - - - - -
PR1 72 Fault in parameter set 1 w - - - - -
PR6 80 Too many user codes displayed w - - - - -
Sd2 82 Re solve r fault w - á - á C0586
Sd3 83 Encoder fault at X9 PIN 8 á - á - w C0587
Sd5 85 Encoder fault at X6/1 X6/2 (C0034 = 1) á - á - w C0598
Sd6 86 Sensor fault: motor temperature (X7 or X8) w - á - á C0594
Sd7 87 Fault in the absolute value encoder at X8 á - - - w C0025
overrun Task1 201 Time-out task with Id.2 (see task configuration) w - á á - 1)
overrun Task2 202 Time-out task with Id.3 (see task configuration) w - á á - 1)
overrun Task3 203 Time-out task with Id.4 (see task configuration) w - á á - 1)
overrun Task4 204 Time-out task with Id.5 (see task configuration) w - á á - 1)
overrun Task5 205 Time-out task with Id.6 (see task configuration) w - á á - 1)
overrun Task6 206 Time-out task with Id.7 (see task configuration) w - á á - 1)
overrun Task7 207 Time-out task with Id.8 (see task configuration) w - á á - 1)
overrun Task8 208 Time-out task with Id.9 (see task configuration) w - á á - 1)
float Sys-T 209 Floating point error (REAL) in the system task w - á á - 1)
float Cycl.-T 210 Floating point error (REAL) in the cyclic task w - á á - 1)
