2. Product Overview VINX-1x0-HDMI Extenders – User's Manual 13
2.1. VINX-120-HDMI-ENC

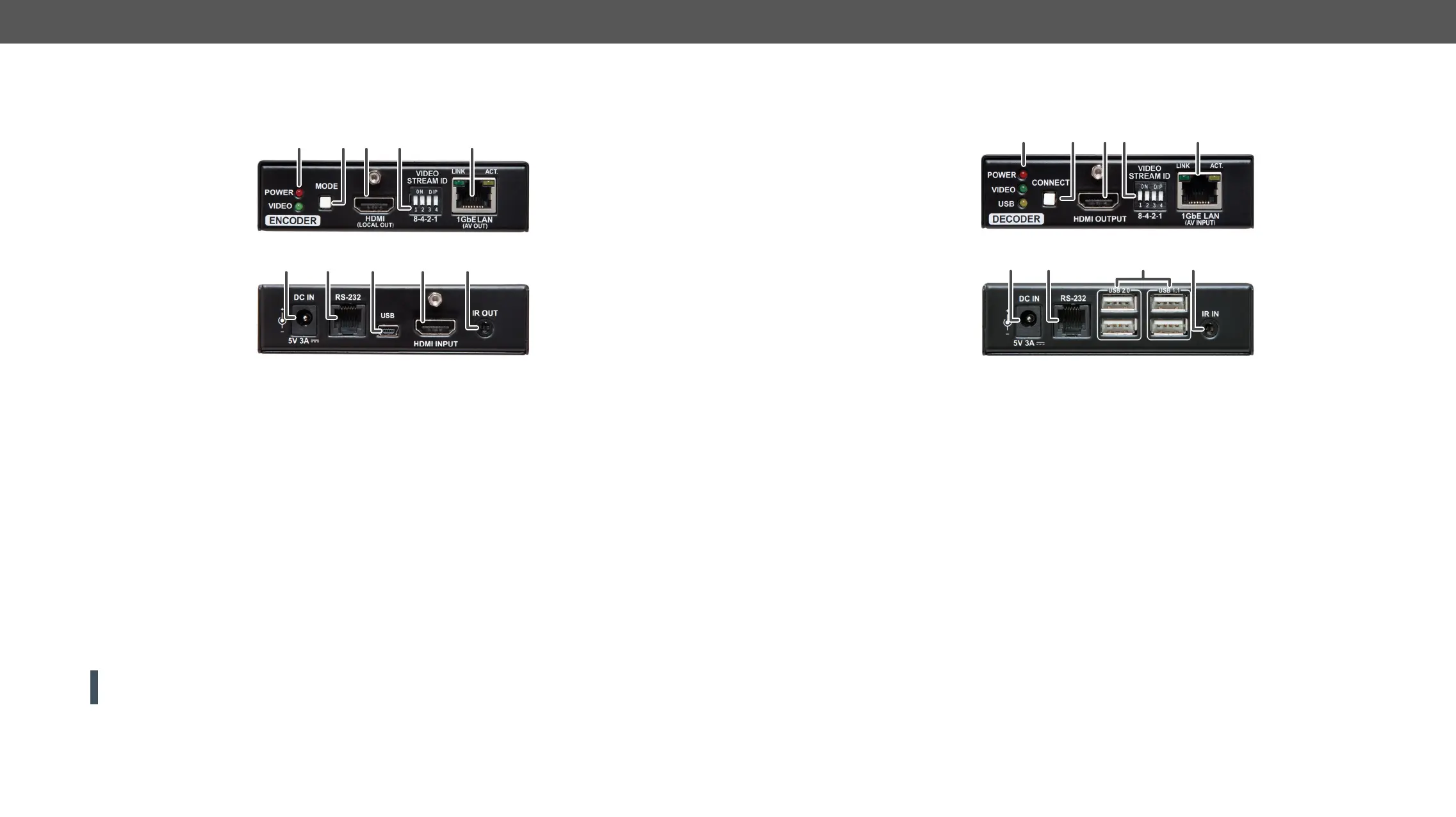

Front and Rear View
WARNING! Always use the supplied 5V power adaptor. Warranty void if damage occurs due to use of a
different power source.
1 3 4 52
96 7 q8
1
Status LEDs See the section.
2
Mode Button Short press: switching between Video and Graphics modes.
Long press (more, than 10 seconds): reset to factory default settings.
3
HDMI Output Port
4
DIP Switch
DIP Switch section.
5
AV Output Port
6
DC 5V Input
7
RS-232 Port RJ12 connector for transparent serial communication (point-to-point
or point-to-multi point).
8
USB Port Mini B-type connector for USB pass-through (IP KVM) application.
9
HDMI Input Port Video port for DVI or HDMI signal.
q
IR Output Port
2.2. VINX-110-HDMI-DEC
Front and Rear View
1
Status LEDs See thesection.
2
Connect Button Short press: acquire USB connection (this is required only in Multicast
mode)
Long press (more, than 10 seconds): reset to factory default settings.
3
HDMI Output Port HDMI output to a sink device.
4
DIP Switch
DIP Switch section.
5
AV Input Port
6
DC 5V Input
7
RS-232 Port RJ12 connector for transparent serial communication (point-to-point
or point-to-multi point).
8
USB Ports USB 1.1 and 2.0 compatible A-type ports for transmitting USB HID
and mass storage devices. USB 1.1 port can be used for changing
the video stream by a keyboard, see the Keyboard Shortcuts section.
9
IR Input Port
