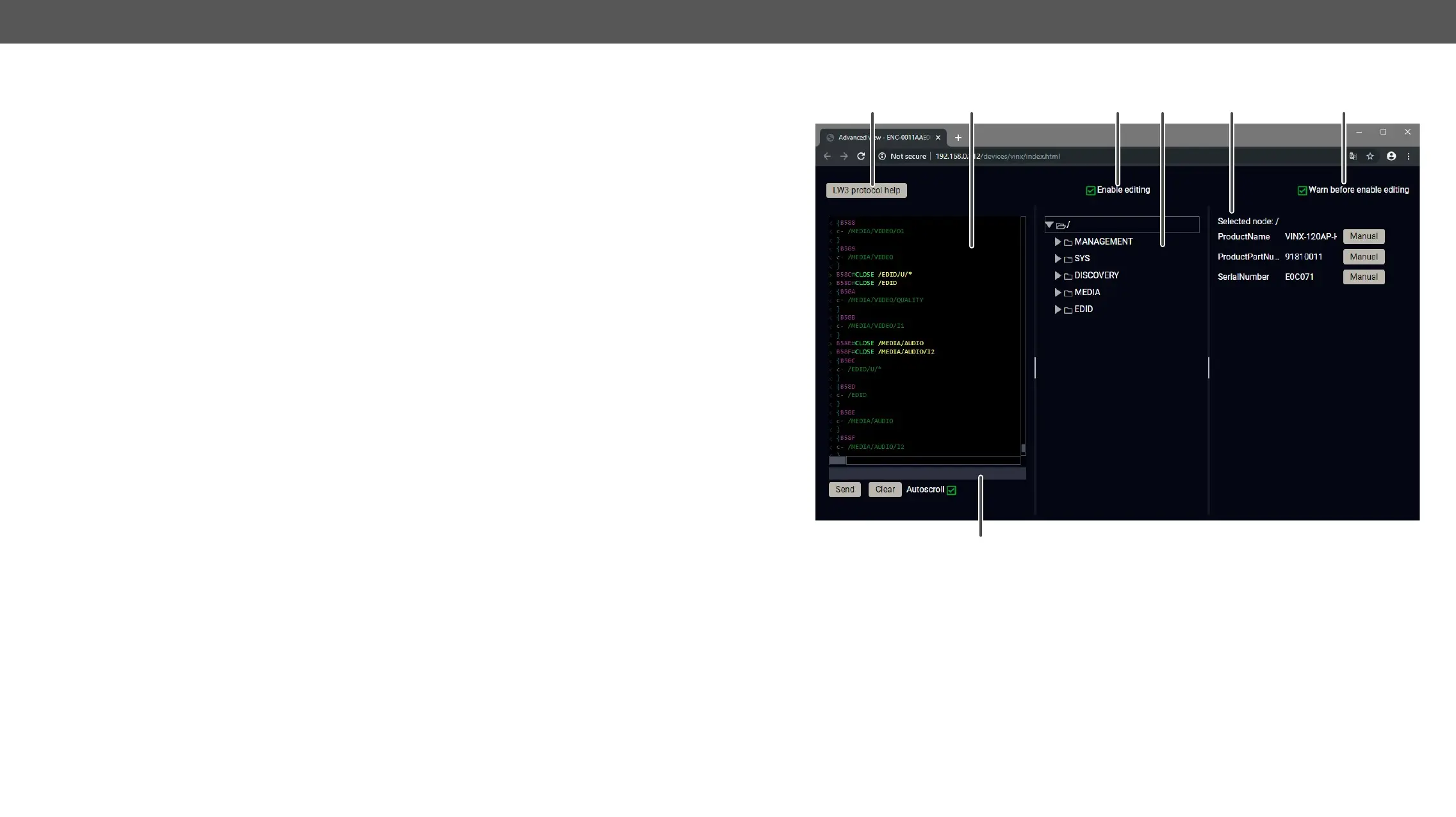

5.9.3. LW3 Terminal
Programmer's
Reference section.
Legend #terminal
1
LW3 Protocol Help
commands in a new window.
2
Terminal Window Commands and responses with time and date stamps are listed in this
window. Sent command starts with ‘>’ character, received response
starts with ‘<’ character. The content of the window can be emptied
by the Clear button. If the Autoscroll option is ticked, the list is scrolled
automatically when a new line is added.
3
Edit Mode The default appearance is the read-only mode. If you want to modify the
your selection.
4
Protocol Tree
5
Node List The parameters and nodes of the selected item in the protocol tree are
shown.
Manual button: displaying the manual (short description) of the
node in a pop-up window.
Set
Call button: Executing the method, e.g. reloading the factory default
settings.
6
Warning Mode If this option is enabled, a warning window pops up when you enable
the Edit mode.
7
Command Line Type the desired command and execute it by pressing the Send button.
The Terminal Window
1
7
2 3 4 5 6
