5.6. Crosspoint Menu
The page allows the user make crosspoint switches between the encoders and the decoder end-points
(individual decoders or video walls) in the system. Only at most the rst 16 Encoders shall appear in the
Crosspoint page. If the subnet contains more encoders, the Crosspoint page shall display an appropriate
message indicating why the Crosspoint pane and the Property panel is not displayed. The Crosspoint page
can show up to 24 devices (Encoder+Decoder) at most. #crosspoint #switch
The TX means the Encoder, the RX means the DecodersVideo Walls are shown as VW.
ATTENTION! Please note that the Decoders which belong to a Video wall will not be displayed as individual
devices.

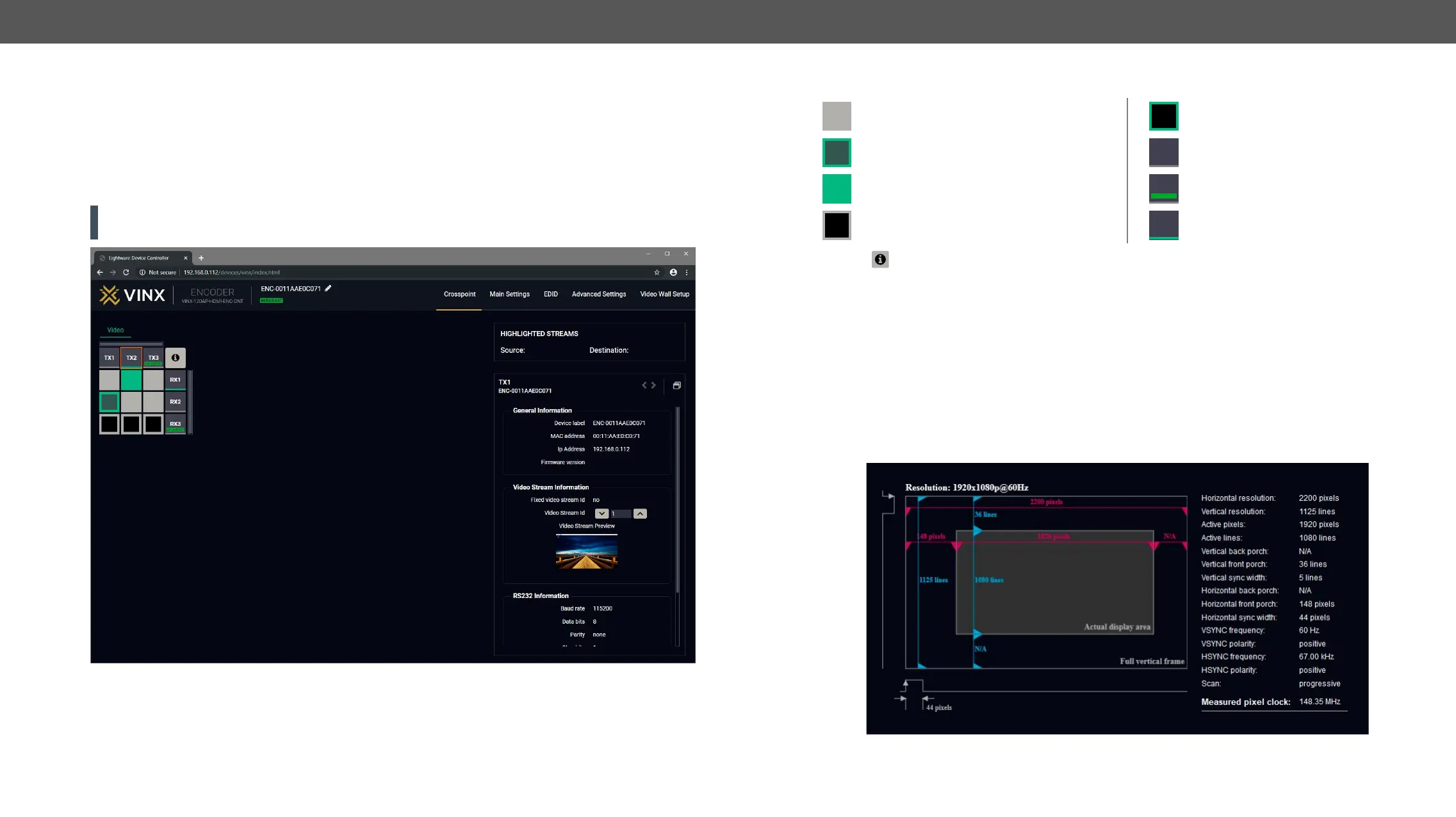

The Crosspoint Menu
The applied icons in the Crosspoint mean different states as follows:
Press the
button to open the Legend window and display above list.
5.6.1. Frame Detector
The ports can show detailed information about the signal like blanking intervals and active video resolution.
format that is present on the port, thus helps to identify many problems. E.g. actual timing parameters may
differ from the expected and this may cause some displays to drop the picture. #framedetector
Frame Detector measures detailed timings on the video signals just like a built-in oscilloscope, but it is
full frame is the blanking interval which can contain the info frames and embedded audio data for HDMI
signals. Shown values are measured actually on the signal and not retrieved only from the HDMI info frames.
Frame Detector (Opened in a New Tab)
Unselected connection Selected but disabled connection
Selected connection with no signal present
Active stream, but no signal present
Selected connection with signal present
DIP SWITCH
Stream ID is set by DIP switch
Unselected and disabled connection
Signal present
