3.4. Connecting Steps
ATTENTION!  

3.4.1. Preparing the Network


routing.
ATTENTION!  VINX Encoder and Decoder send certain system commands over multicast packages. If the
multicast routing is disabled on the network, the signal transmission may fail.
Layer 2 vs. Layer 3 Switch
The VINX Encoders and Decoders use multicast routing. The managed switch in the network shall offer the
following capabilities:
▪ IGMPv2
▪ IGMP snooping
▪ IGMP fast leave
▪ 
▪ 
▪ 

network requirements in the  section.

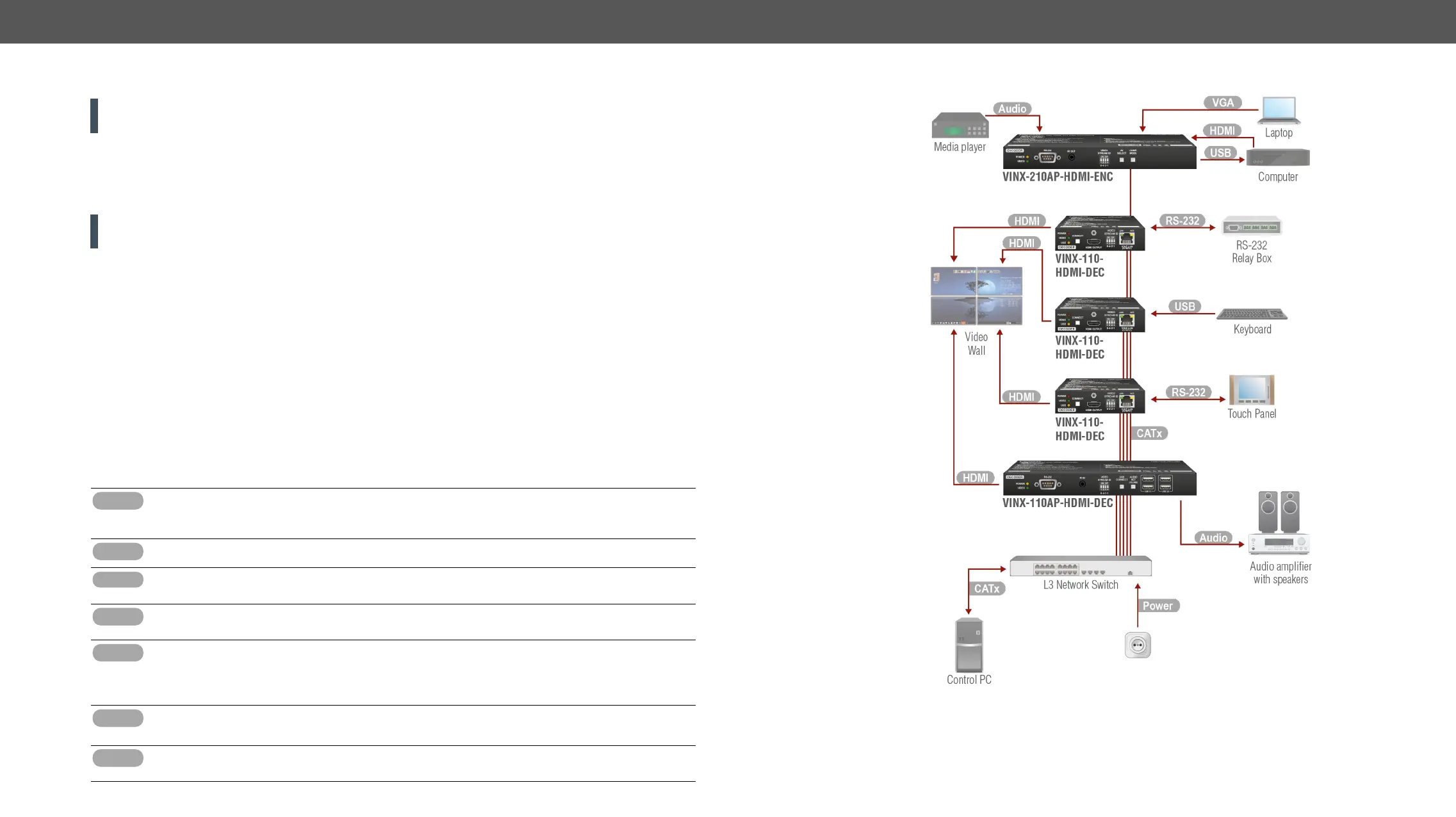

3.4.2. Point-to-Multipoint Transmission (Multicast Mode)
HDMI
Connect an HDMI source device (e.g. a computer) to the HDMI input port of the Encoder.

































application.
VGA
Connect the desired VGA source (e.g.a laptop) to the Encoder.
RS-232
Optionally for RS-232 serial transmission: connect the desired devices (e.g. a touch Control, relay box)
to the RS-232 ports by the supplied serial cables.
USB
Optionally for USB extension: connect USB devices to the USB ports of the Decoders. Connect the
desired host device (e.g. computer) to the Encoder via the USB mini-B type port.
Audio
Optionally for audio transmission: connect the desired audio source device (e.g. a media player) to the
audio input port of the Encoder.































the Decoder
.
CATx
          Applied cable shall be max.

Power

then
to the AC power socket.
For more information about installation techniques please see the Installation Checkpoints section.




