5.4.2. Video Status and Settings
The properties of the incoming and outgoing video signals are displayed in the following sections.
Video Settings #hdcp
▪ The emulated EDID can be selected (see the EDID Operations section).
▪ Setting the HDCP status on the input:
– Enable: the connected source will detect the Encoder is HDCP-compliant.
– Disable: the connected source will detect the Encoder is not HDCP-compliant. Thus, if the content
allows the signal will not be HDCP encrypted.
Video Status #status
▪ Input signal presence and Video stream preview. The image is updated approx. every third seconds.
▪ Displaying the Frame Detector in a new window, see the Frame Detector section.
ATTENTION!
to apply the settings.
ATTENTION! The EDID information cannot be read by the source attached to the HDMI input of an Encoder
if HDCP is disabled on the input. That may stop the video transmission in case of certain source devices.
Video Source Selection #source
DIFFERENCE: The feature is available in VINX-210AP-HDMI-ENC device only.
▪ The desired video source can be selected by the drop-down menu: HDMI / VGA / Auto.
▪ Auto mode:
input. If sync is lost for at least 3 seconds, a switch over to the other source shall occur. No automatic
switch back to the original input shall occur when the signal is restored.
Video Bandwidth Settings
Compression Mode #compression
in the Encoder:
▪ Movie mode
bandwidth. If the bandwidth is decreased the image quality will be lower, but the video streaming will
be continuous.
▪ Graphics mode
bandwidth is decreased the image quality does not change, but frame dropoing may appear.
The setting has an affect when the available bandwidth is less than required.
Video Stream Bandwidth #bandwidth
affects only the video signal transmission. The
following values are available:
The Auto setting is the default value which means: the available bandwidth is determined according to
ATTENTION!
restarted to apply the settings.
5.4.3. Audio Settings

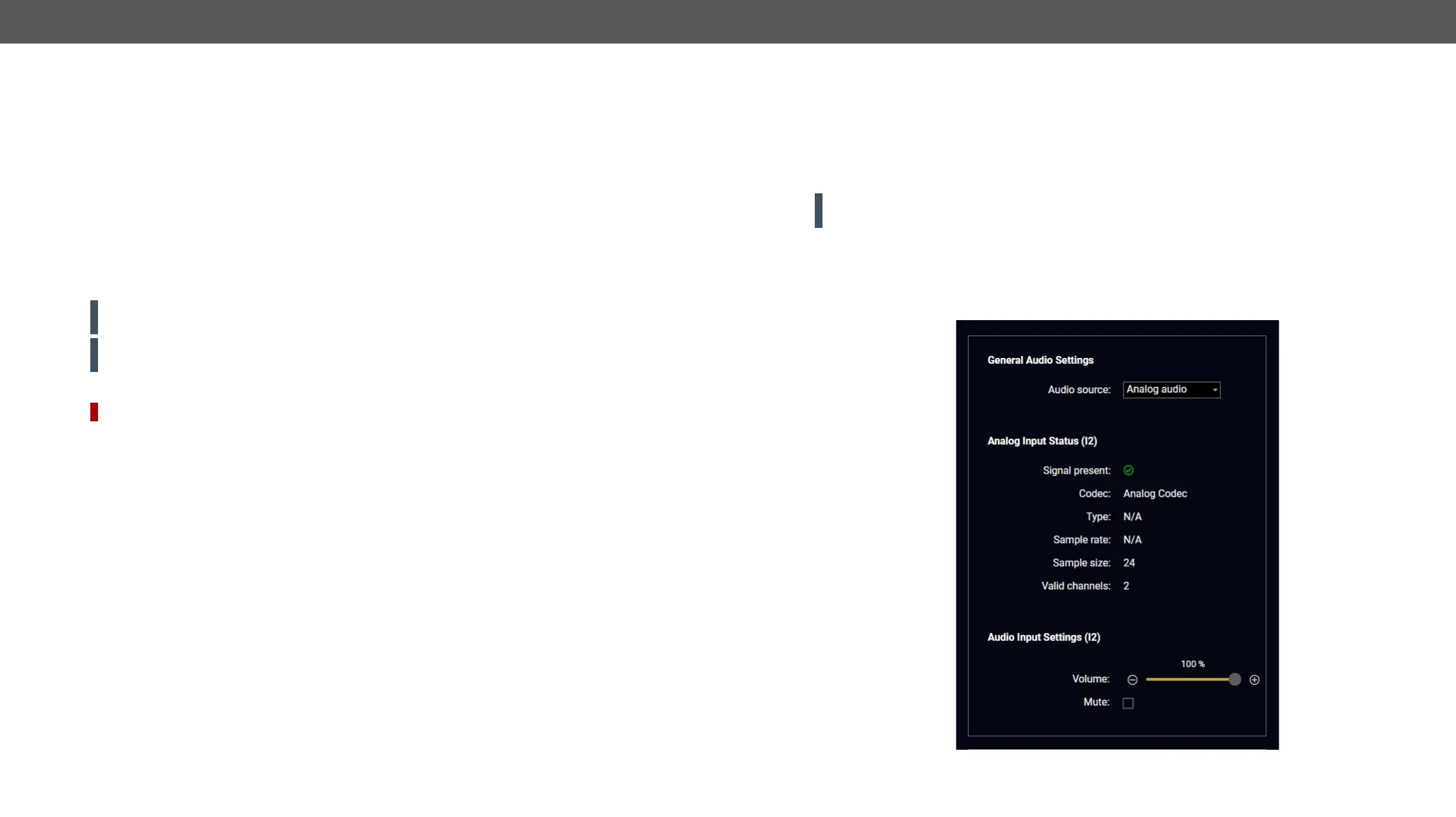

The General audio settings allows selecting the desired audio source and setting the volume of the output
signal.
Auto select analog mode: the Analog audio input port is selected when a plug is connected.
#audio #analogaudio #volume #mute #unmute
