2.5. VINX-210AP-HDMI-ENC

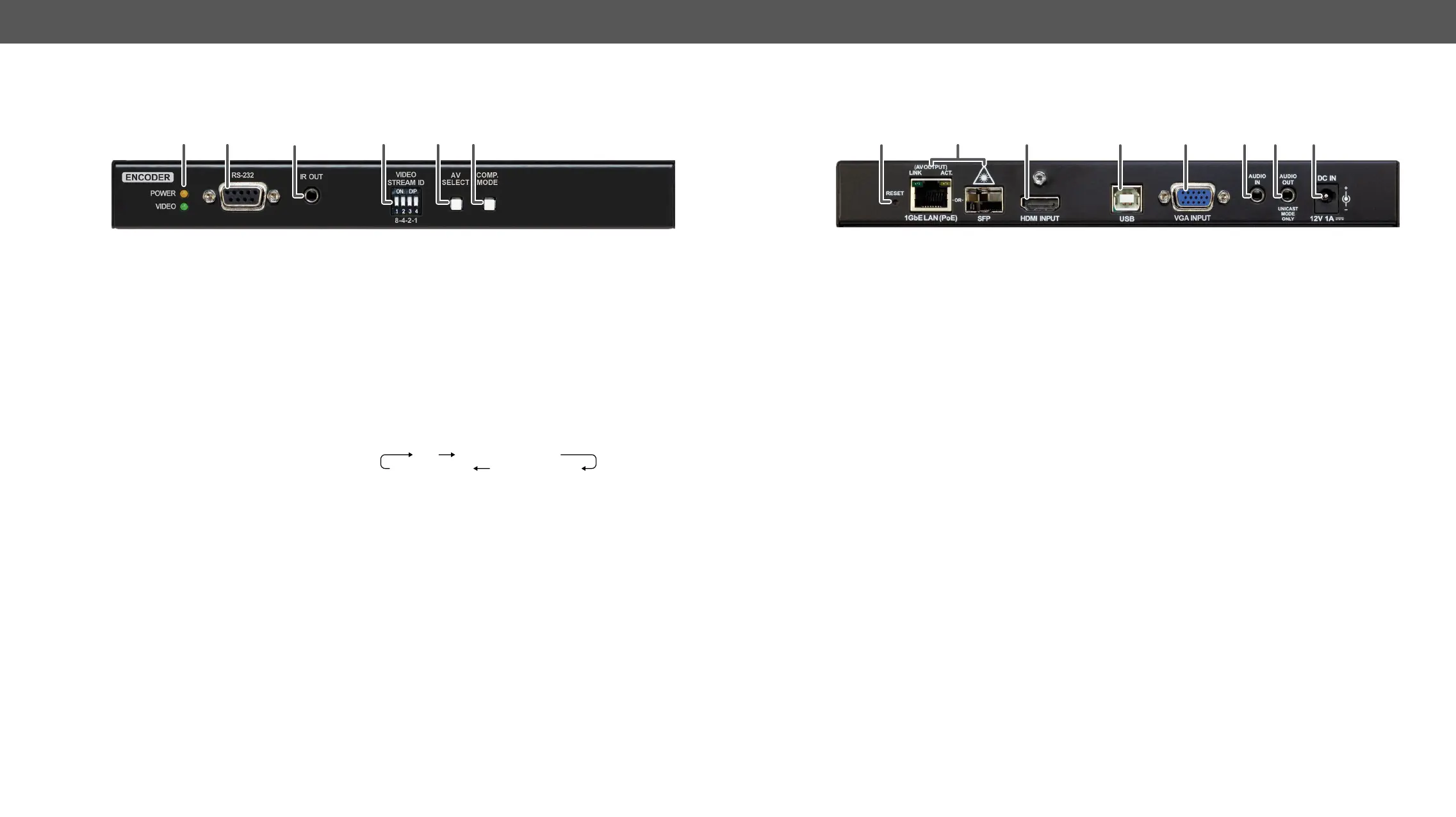

Front View
1 2 3 4 5 6
1
Status LEDs See the section.
2
RS-232 Port
or point-to-multi point).
3
IR Output Port
4
DIP Switch
5
AV Select Button Press the button to toggle between the following modes:
Auto
HDMI+Embedded audio
HDMI+Analog audio
VGA+Analog audio
See more details in the Front Panel Buttons section.
6
Compression Mode
Button
Short press: switching between the Video and Graphics modes.
Long press (more, than 10 seconds): reset to factory default settings.
Rear View
1 6 7 8
2 3 4 5
1
Reset Button Reboots the device.
2
AV Input Ports
Please note that SFP module is not supplied
with the device.
3
HDMI Input Port Video port for DVI or HDMI signal.
4
USB Port B-Type connector for USB pass-through application (e.g. for connecting
the Encoder to a computer).
5
VGA Input Port Video port for analog VGA signal on VINX-120AP-HDMI-ENC.
6
Audio Input Port For unbalanced analog audio signal.
7
Audio Output Port Presenting the audio signal coming from the Audio input port of the
connected Encoder. This feature is available only in Unicast mode and if
the Analog audio input is selected as an audio source on the Encoder.
8
DC 12V Input 12V DC input for local power supply.
