5.9. Advanced Settings
5.9.1. Common Settings (Encoder and Decoder)
The submenu contains two tabs: Multicast and Unicast. The currently valid mode is highlighted with yellow.
Press the desired button to choose the mode and access the settings. #unicast #multicast
ATTENTION!
Network Settings #network #ipaddress #dhcp
The factory default IP address of the extender is set to get it from the DHCP server in the network. The drop-
down list and the further parameters allow changing the network settings to the desired value.
ATTENTION! Apply changes button; the device
will reboot.
Please use the port number 6107 for connecting to the device directly from a third-party application.
Upgrade Firmware #rmwareversion
For the details please see the Firmware Upgrade section.
Programmers' LW3 Terminal
See the section.
RS-232 Settings #rs232 #rs-232 #serial
The RS-232 serial data transmission is fully transparent between the Encoder and the connected Decoder
devices. All data received on the serial port of the Decoders is transmitted to the serial port of the Encoder
and vice versa: the data received on the serial port of the Encoder is transmitted to the serial port of all
connected Decoders.
ATTENTION! The data transmission works only if the serial port parameters were set to the same values
See more information in the RS-232 Interface section.
USB Settings (Multicast Mode)
The Encoder displays the name of the currently connected Decoder.
The Decoder displays if the USB connection is established; press the button to acquire the connection if
needed. #usbkvm #kvm
Restart and Factory Default Settings #reboot #reset #restart
Scroll down to these dedicated buttons. #factory

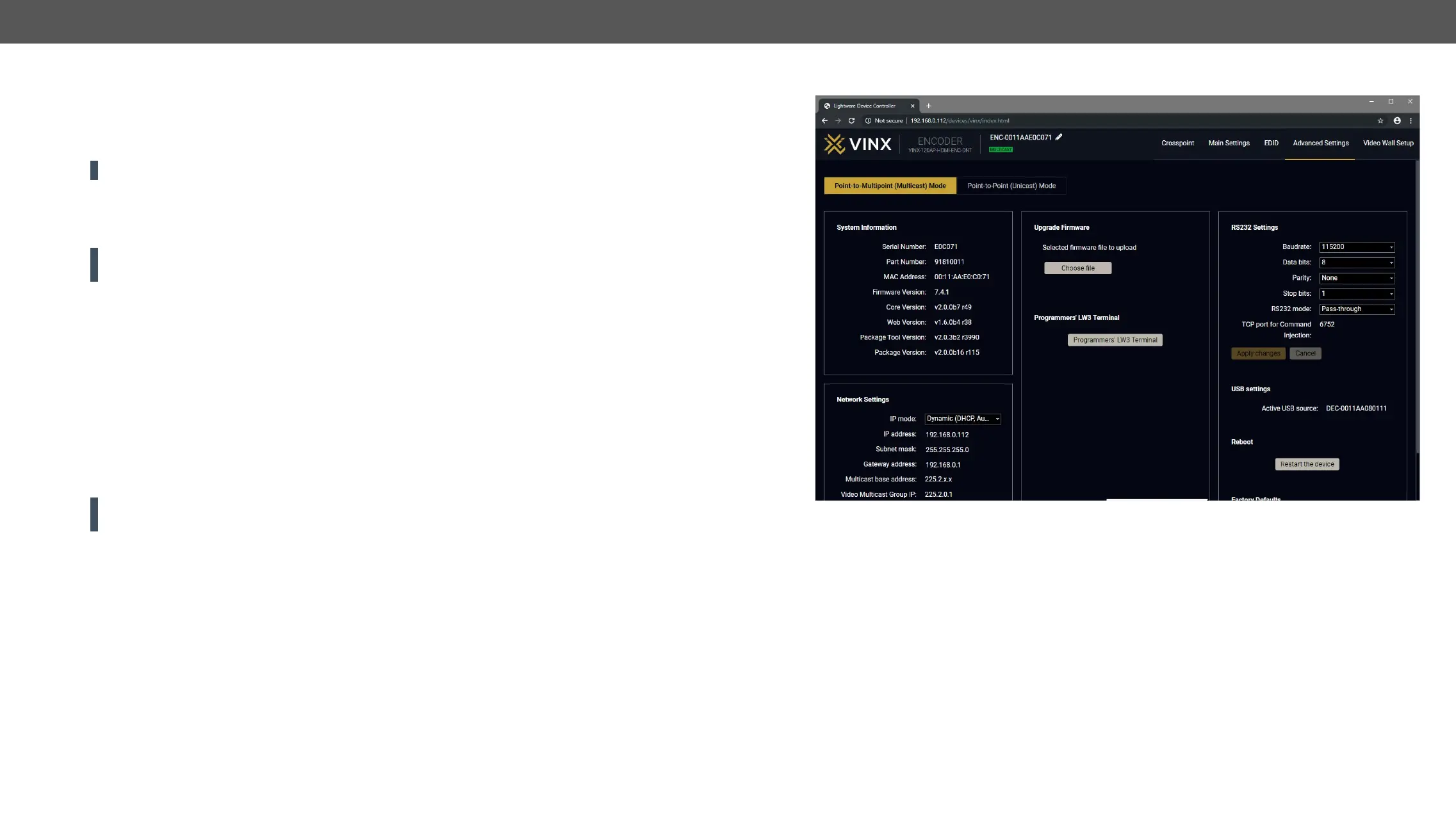

The Advanced Settings Menu of an Encoder in Multicast Mode
