6. Programmer's Reference
6.1. Overview
Advanced View
6.2. Instructions for the Terminal Application Usage
Terminal Application
receiver using a terminal application. You need to
install one of them to your control device, for example
Putty or CLI. #terminal
Establishing Connection
Follow the steps for establishing connection to the
receiver:
Step 1.
Step 2. Open the terminal application (e.g. Putty).
Step 3. Add the IP address of the device (default:
port number (6107).
Step 4. Select the Raw connection type, and open the
connection.
Once the terminal window is opened, you can enter
following sections.

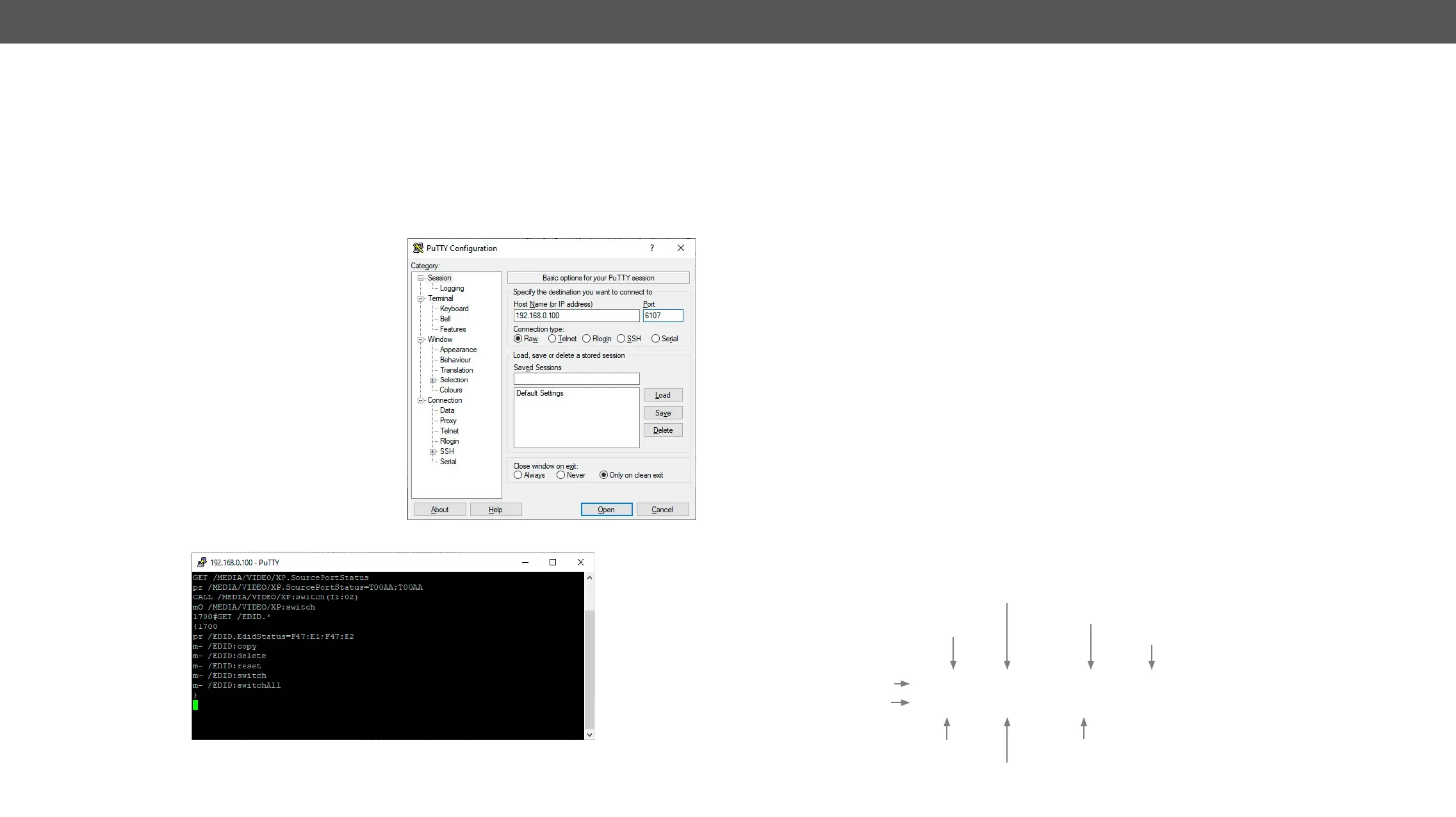

LW3 protocol command communication in a terminal window
6.3. Protocol Rules
6.3.1. The LW3 Tree Structure
6.3.2. The LW3 Command Structure
MEDIA
VIDEO
XP
SourcePortCount
SourcePortStatus
DestinationPortCount
DestinationPortStatus
DestinationPortAutoselect
[...]
I1
I2
I3
I6
O1
AUDIO
UART
IR
GPIO
ETHERNET
EDID
SYS
MANAGEMENT
[...]
ç GET /SYS/MB/GPIO.DipSwitch
æ pr /SYS/MB/GPIO.DipSwitch=0x8
Command type
Parameters
Command
Response
