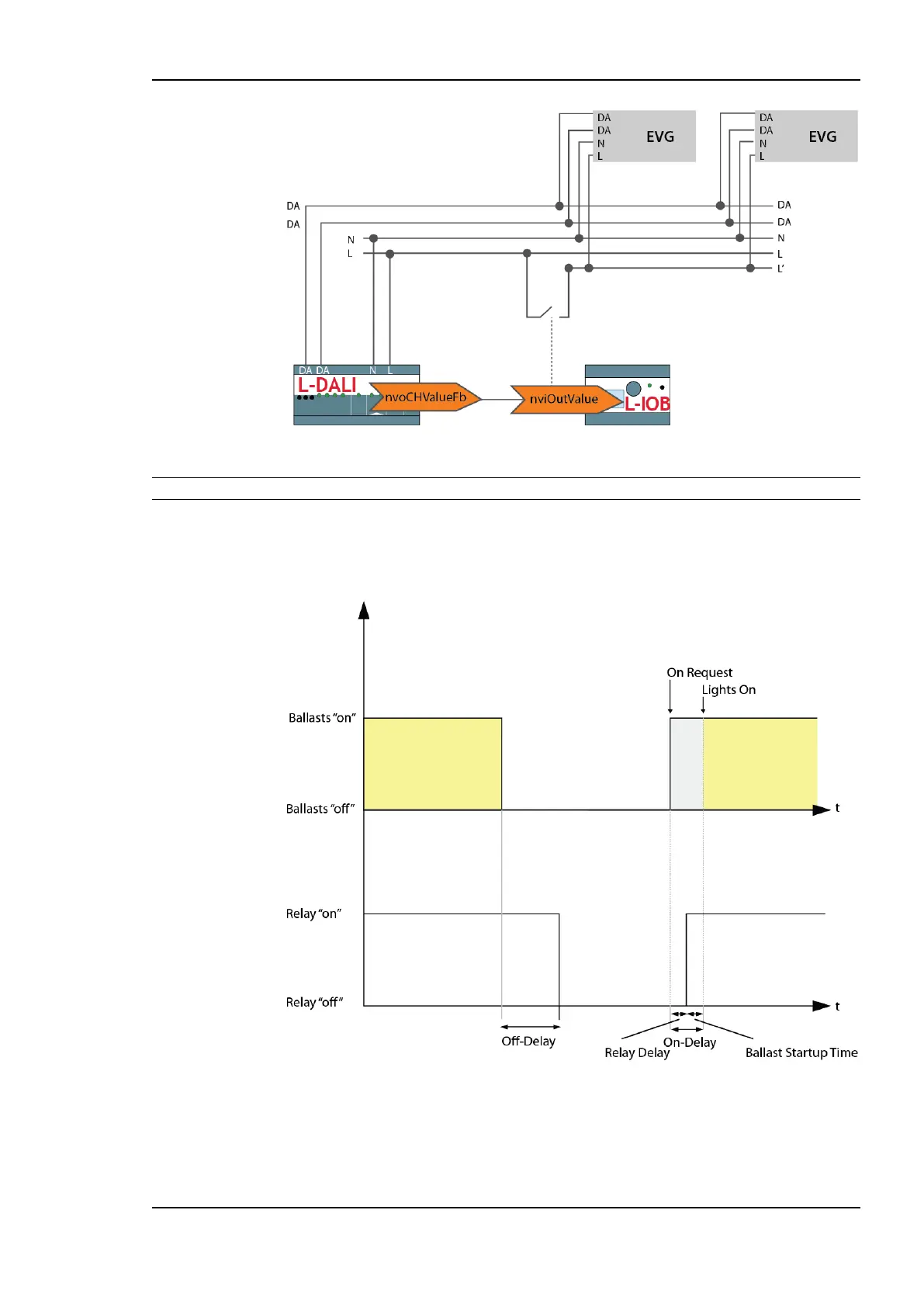

Figure 242: Wiring example for switching ballast mains using L-IOB relay output.
Important: The channels DALI bus power must not be switched off by the relay!
The feature is enabled by setting the Mains-Off handling mode of the channel to L-DALI
either using the LINX Configurator software (see Section 7.5.1.1) or the Web-Interface (see
Section 5.3.4.10).
Figure 243: Timing parameters of Mains-Off handling function.
The function has two parameters (see Figure 243):
