5.6 MAINTENANCE OF THE CENTERING/BLOCKING SYSTEM
ZONE
5.6.1 CLEANING THE BEARING SURFACE
To replace the bearing surface, proceed as follows:
CAUTION! AVOID CONTAMINATING THE INSTALLATION SURFACE WITH GREASY SUBSTANCES OR YOUR FINGERS.
ANY LOSS OF OPACITY OF THE INSTALLATION SURFACE MAY LEAD TO MALFUNCTIONS OF THE APPARATUS
NOT COVERED BY THE WARRANTY.
*NOTE: It is recommended to clean the installation surface with a circular movement from the
centre outwards.
5.6.2 CLEANING THE LOWER LENS OF THE COLLIMATOR
To replace the lower lens of the collimator, proceed as follows:
*NOTE: It is recommended to clean the lower lens of the collimator with a circular movement
from the centre outwards.

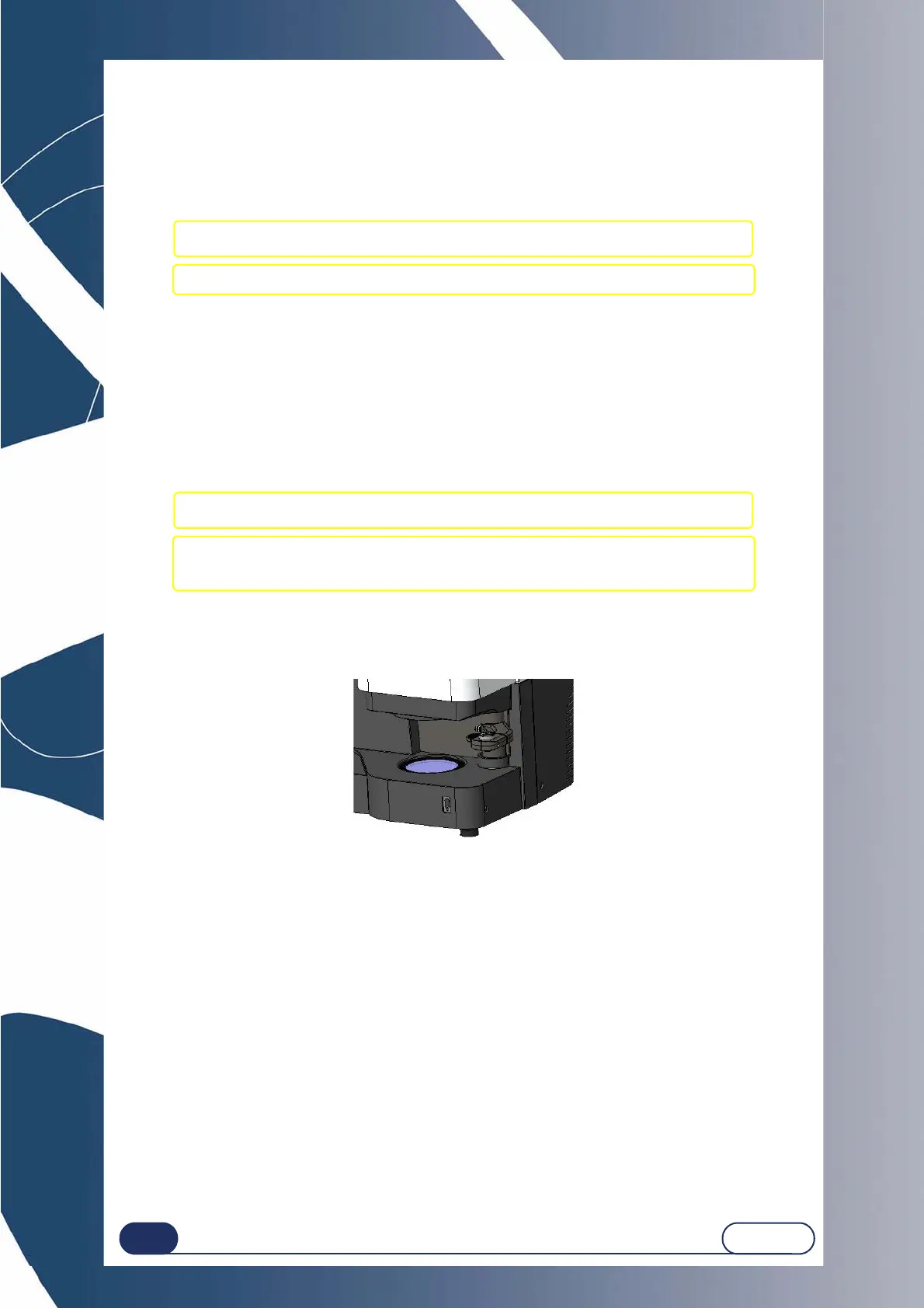

Illustration 5-2: Centering / blocking system
#1 Remove any element that may hinder proper execution of the operation
(e.g. lens holder placed on the bearing surface).
#2 Clean gently with a soft, dry, grease-free and lint-free cloth*
#1 Remove any element that may hinder proper execution of the operation
(e.g. lens holder placed on the ground glass).
#2 Clean the lower lens of the collimator with antistatic cleaning swabs (P/N1000186)
(Figure 1).*
To Next Page
