Luneau Technology Briot perception2 - Preparing the Bench; Machine Dimensions; Space and Drilling Required

Installation...Preparing the bench
1-11
LTO
1.3 PREPARING THE BENCH
1.3.1 MACHINE DIMENSIONS

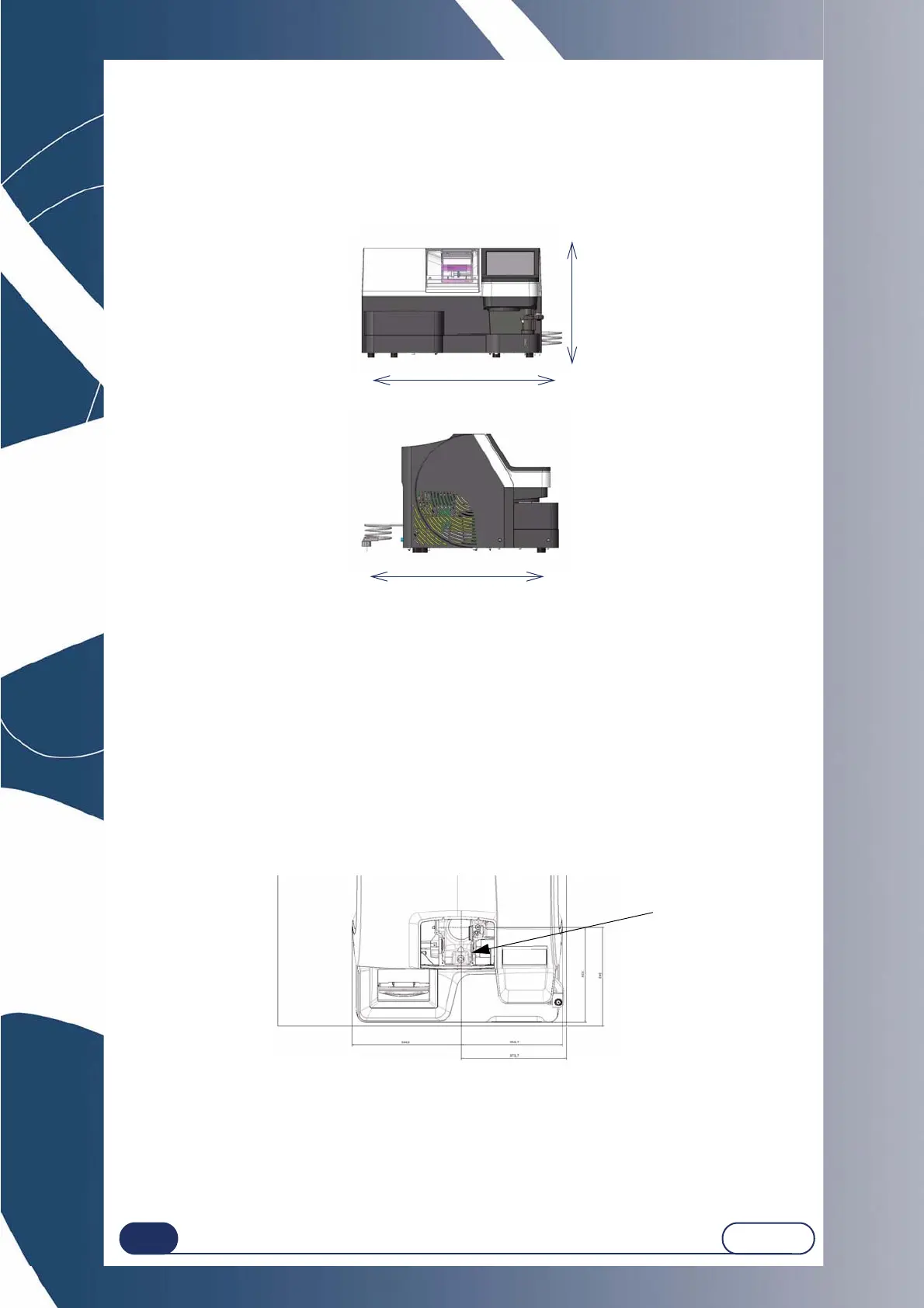

The following illustrations show the machine dimensions.
Illustration 1-3: Edger dimensions
 Height = 455 mm
 Width = 747,3 mm
 Depth = 600 mm
 Emotion2 weight = 69 kg
 Perception2 weight = 66 kg
1.3.2 SPACE AND DRILLING REQUIRED
 ILLUSTRATION
The following sketch shows the positioning of the machine on the bench and the openings which must be
provided.
 Position your machine correctly before drilling the bench!
Illustration 1-4: Positioning the machine on bench and drilling to be made
 RECOMMENDATIONS
 Follow the dimensions given.
 Leave enough space around the edger.
 Ensure that the bench is stable and level.
 Install the edger away from any source of heat.
H = 455 mm
W = 747,3 mm
D = 600 mm
Discharge
