1.4 WATER CONNECTIONS
1.4.1 SPECIFICATIONS
1.4.1.1 GENERAL
 Water intake with a stop-valve fitted with a 20 x 27 mm female connector and a filter seal.
This stop-valve must be reserved for the machine and placed at a maximum of 80 cm from the place
provided for the machine.
The stop-valve must be easy to reach and closed when not in use.
 Water pressure = 3 bar maximum
 Water discharge through a 100 mm diameter pipe.
The slope must be at least 5% to ensure proper evacuation of the refuse.
1.4.1.2 FILTRATION TANK WITH PUMP
 W 600 x H 400 x D 315 mm
 60-liter capacity
 Three levels of filtration
1.4.1.3 PUMP
 W 400 x H 230 x D 300 mm
 Power = 450 W max.
 Q = 20/220 l/min
 V = 220 - 240 V
 H = 8 - 1 m
 F = 50 Hz
 IP = 68
1.4.2 PIPE CONNECTIONS
1.4.2.1 LOCATE THE CONNECTING POINTS

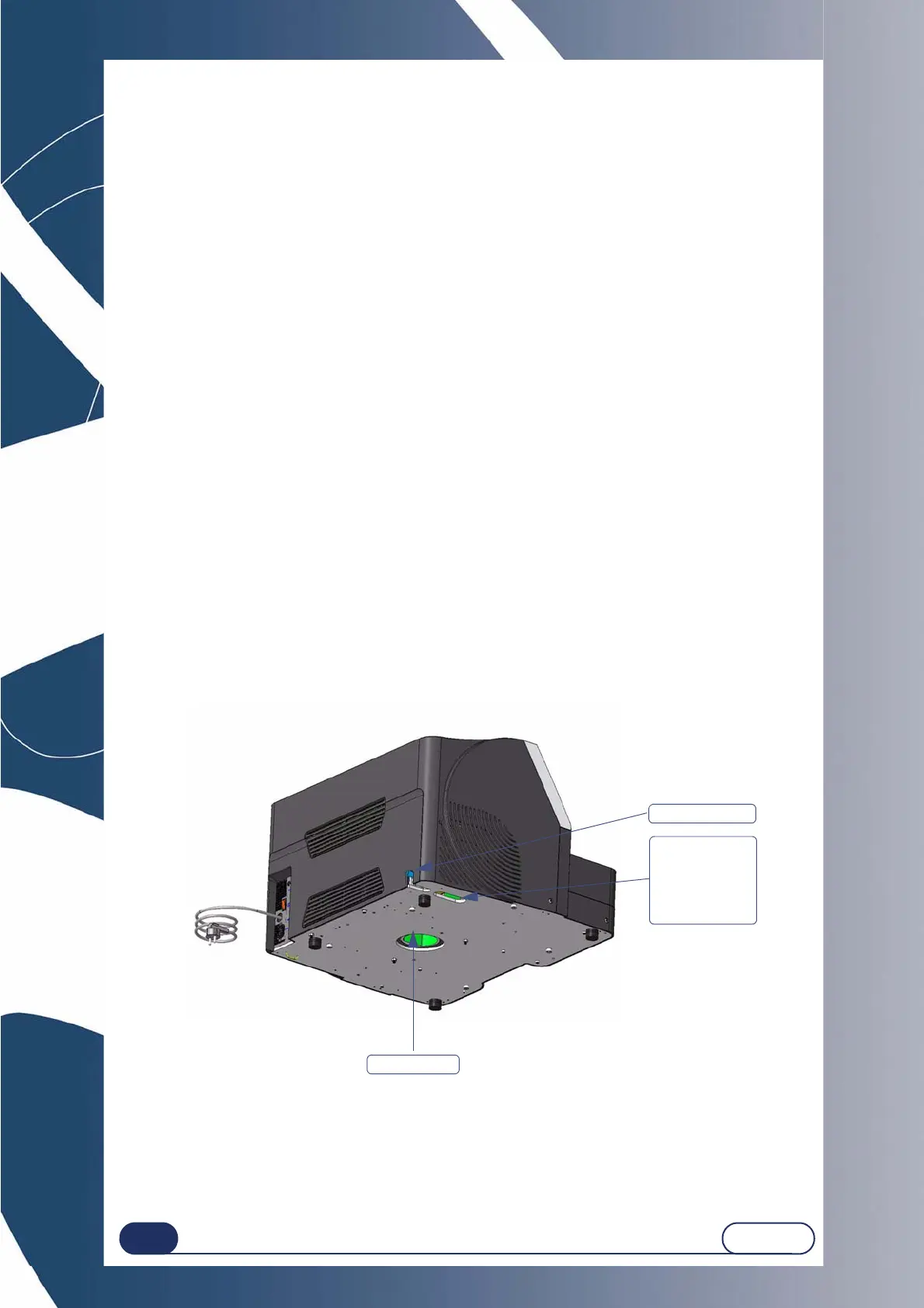

Illustration 1-5: Chassis openings
Discharge
Water supply
Second
possibility
for water
inlet
