Installation...Electrical connections
1-16
LTO
1.6 ELECTRICAL CONNECTIONS
1.6.1 SPECIFICATIONS
2P+T - 16A - 200/240V plug protected by a 30 mA earth-leakage circuit-breaker.
The socket must be earthed.
1.6.2 EDGER WIRING
1.6.2.1 PROCEDURE
Flow chart
To connect the peripheral equipment to the edger, proceed as follows:
Flow chart 1-5: Electrical connections
As shown...

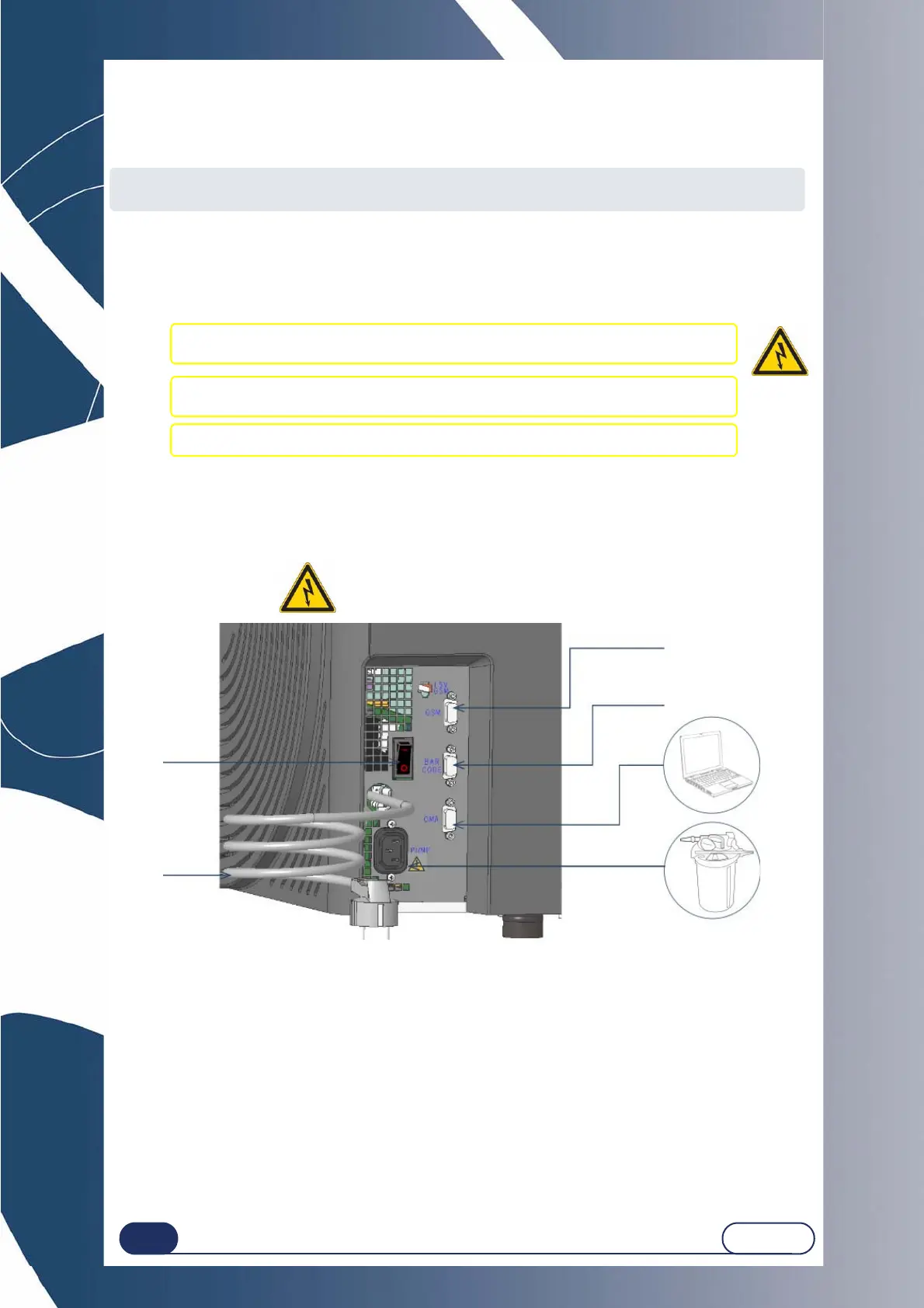

Illustration 1-7: Electrical connections
Note: The pump and reader illustrations are not the property of the manufacturer and are
used purely as examples.
#1 Check that the machine is switched off: On/Off switch OFF and mains plug
disconnected.
#2 Connect the server to the OMA port (if there is a server).
#3 If you operate in closed circuit, plug in the pump.
OMA
Pump
Power
ON/OFF
switch
Bar code
GSM
