Using your Edger...Usual procedure
3-65
LTO
3.2.8.6 SAFETY BEVELS

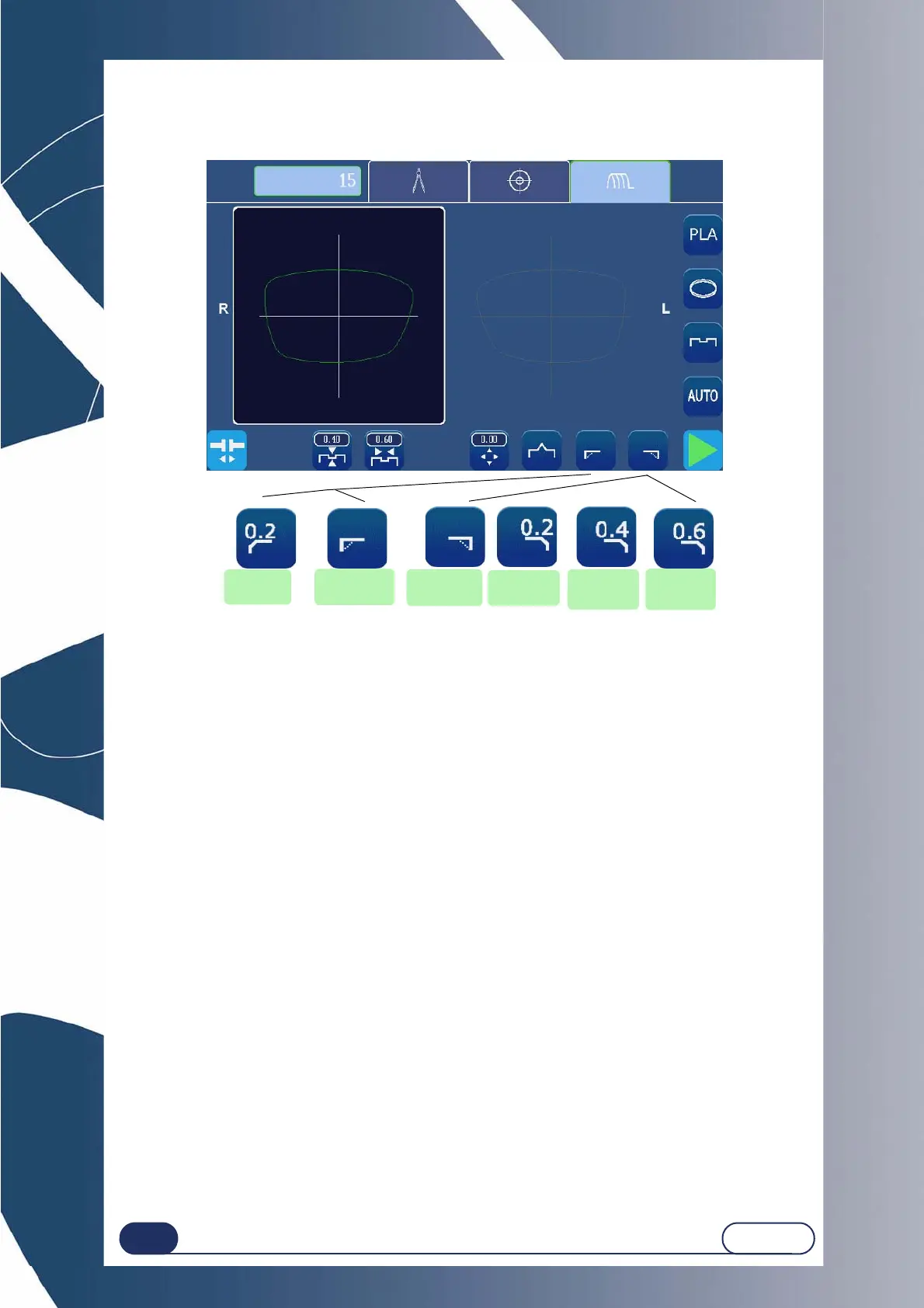

Screen 3-34 : Safety-Bevel Type icons
IMPORTANT NOTES
A safety-bevel can only be made when:
- the distance between the apex of the bevel and the front/rear face of the lens is greater than
1.6 mm.
- the distance between the front edge of the groove and the front face of the lens is greater than 0.4
mm, and the distance between the rear edge of the groove and the rear face of the lens is greater
than 0.4 mm. (depth of safety-bevel = 0.2 mm).
If you make a retouch whose value is greater than 0.20 mm, the lens will be retouched but the safety-be-
vel(s) will be machined or even removed.
More information about limits: Click here or see “Points to remember”, page 78.
Front face
0.2mm
No front face
safety-bevel
Rear face
0.2mm
Rear face
0.4mm
Rear face
0.6mm
No rear face
safety-bevel
