3.3.3 CHECKING A FINISHING BEFORE THE LENS IS EDGED
3.3.3.1 PRINCIPLE
 You may wish to check the position of the desired finishing - bevel and groove - before beginning the lens
edging cycle.
 You may also wish to position the finishing yourself when running a job.
 You may be automatically redirected to this screen.
Example : The desired finishing position cannot be applied to the lens being edged.
A special screen allows you to visualise the finishing and modify its position, if desired.
IMPORTANT NOTE
The indices of zones A and B indicate the same finishing angular position. When you move one, the other moves
as well.
3.3.3.2 PRESENTATION
3.3.3.2.1 MANUAL BEVEL SCREEN

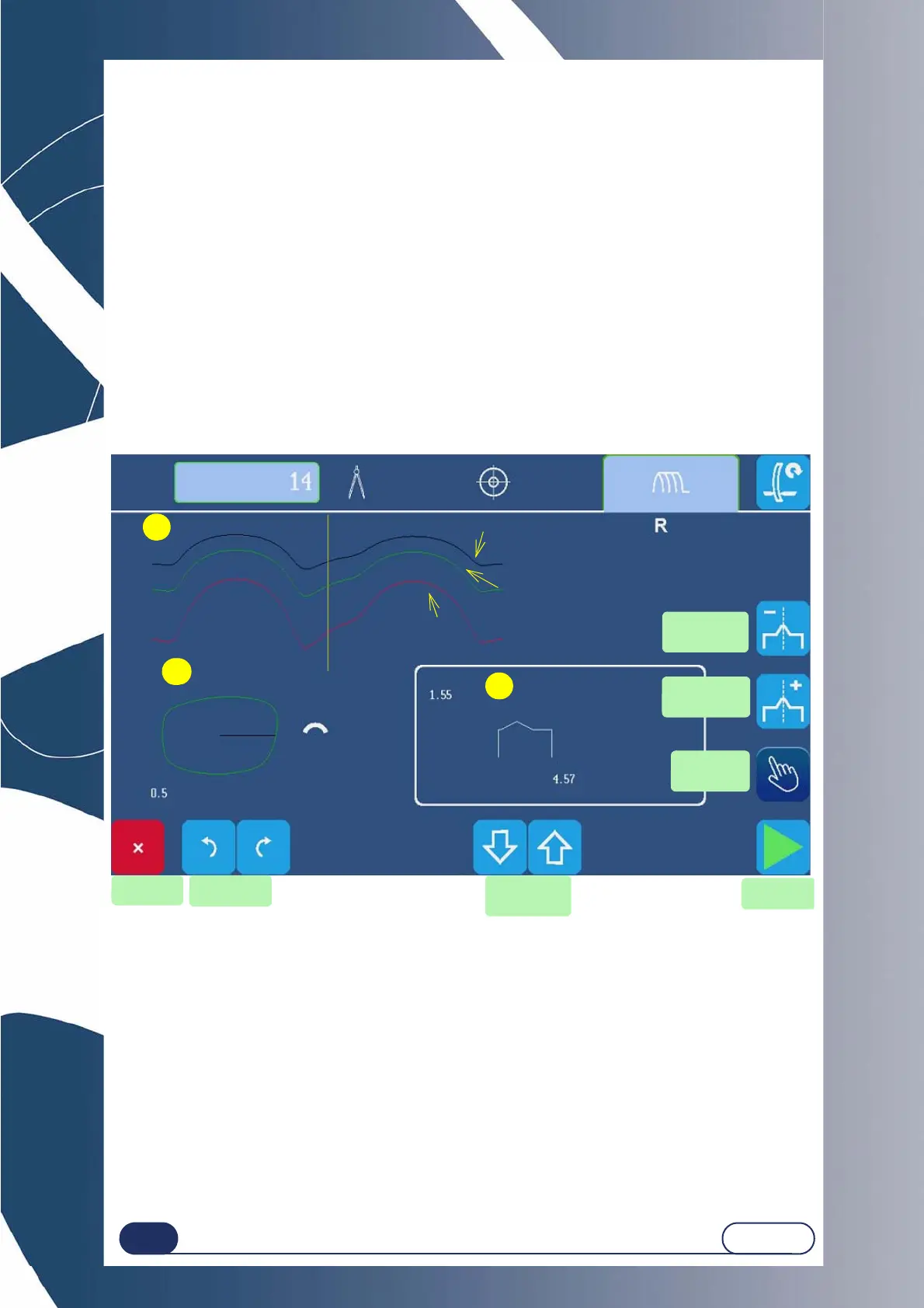

Screen 3-36 : Manual bevel screen
C
Angular position Index
Front face developed curve
Bevel apex developed
curve
Rear face developed curve
Lens section at 
position of index
Lens thickness
A
B
Developed lens profile
Lens shape seen
from the front
Re-feeling
Displacement
of the bevel
forward
Displacement
of the bevel
backward
Modification
of the bevel
position
Stopping
the edging
Start of 
finishing
Displacement
of a finishing
point
Movement of
the index
