1.5 SHIPPING SAFETIES
1.5.1 REMOVE THE SHIPPING SAFETIES
1.5.1.1 PROCEDURE
 Flow chart
To remove the different shipping safeties of the edger, comply with the procedure below:
Flow chart 1-4: Shipping safeties
 As shown...

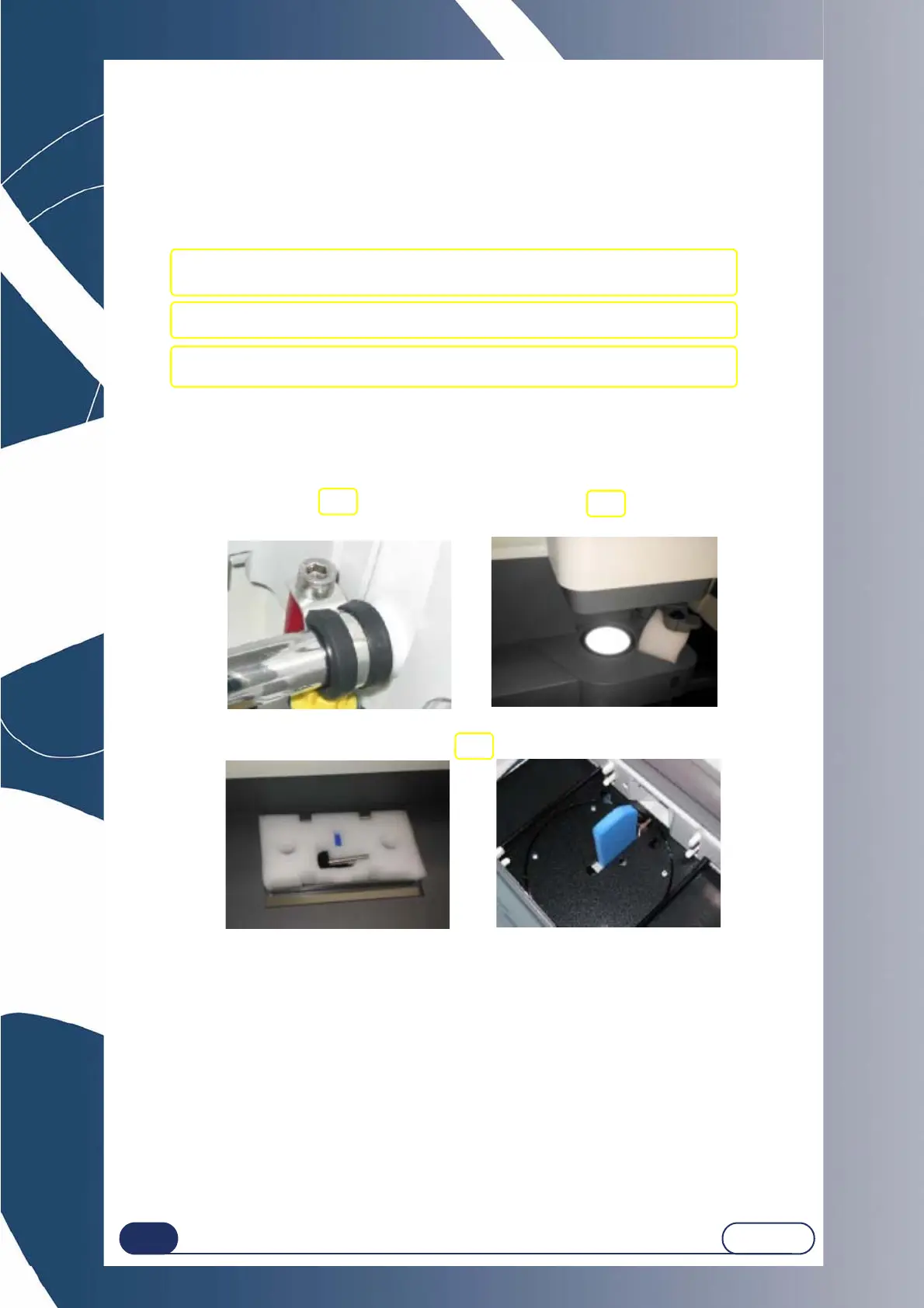

Illustration 1-6: Shipping safeties
IMPORTANT: KEEP THE SAFETY ACCESSORIES AND SHIMS WITH THE PACKING BOXES IN CASE OF FUTURE
TRANSPORT OF THE MACHINE.
#1 Remove the safety assembly (attachment, red spacer and screw) located in
the edging chamber using a 5 mm Allen wrench.
#2 Remove the shim located under the blocking system head.
#3 Remove the shims located on the Scanform.
#1
#2
#3
