262335 17 Revision A
CAUTION
Stand clear when tilting the header, as the header may swing.
IMPORTANT:
Do NOT lift at lean bar when unloading from the trailer. This procedure is only for TILTING the machine over into the
working position.
4. Raise the forks until the lift chains are fully tensioned.

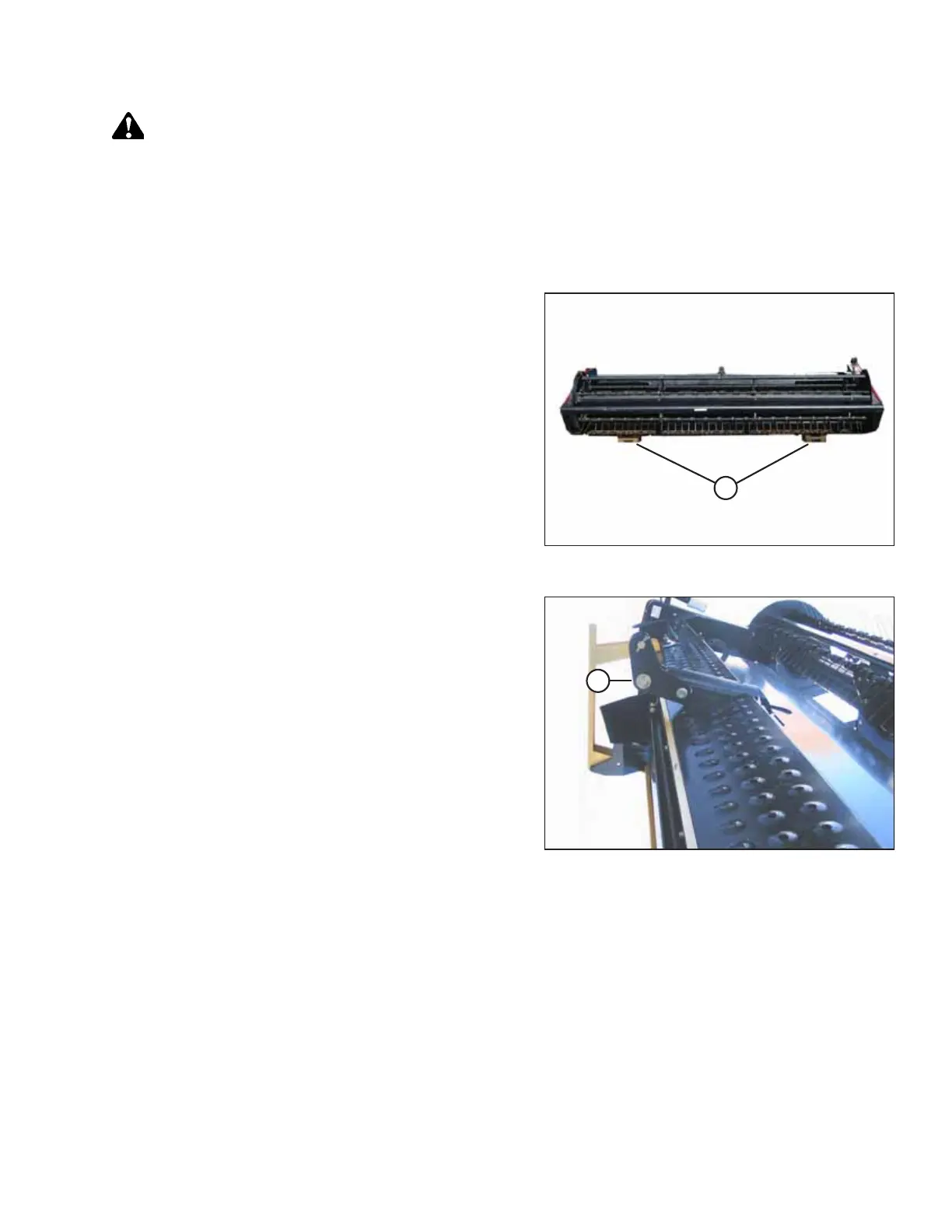

Figure 3.11: Header on Blocks
5. Back up SLOWLY , while simultaneously tilting the machine,
so that cutterbar the skid shoes rest on blocks (A).
6. Remove the chain hooks from the lean bar.
Figure 3.12: Center-Link Anchor
7. Attach the chain to center-link anchor (A) on frame tube
and raise the rear of header approximately 305 mm (12 in.)
off the ground.
ASSEMBLING THE MACHINE
