262335 22 Revision A
Figure 3.21: Center Deflector – Non-GSS Only

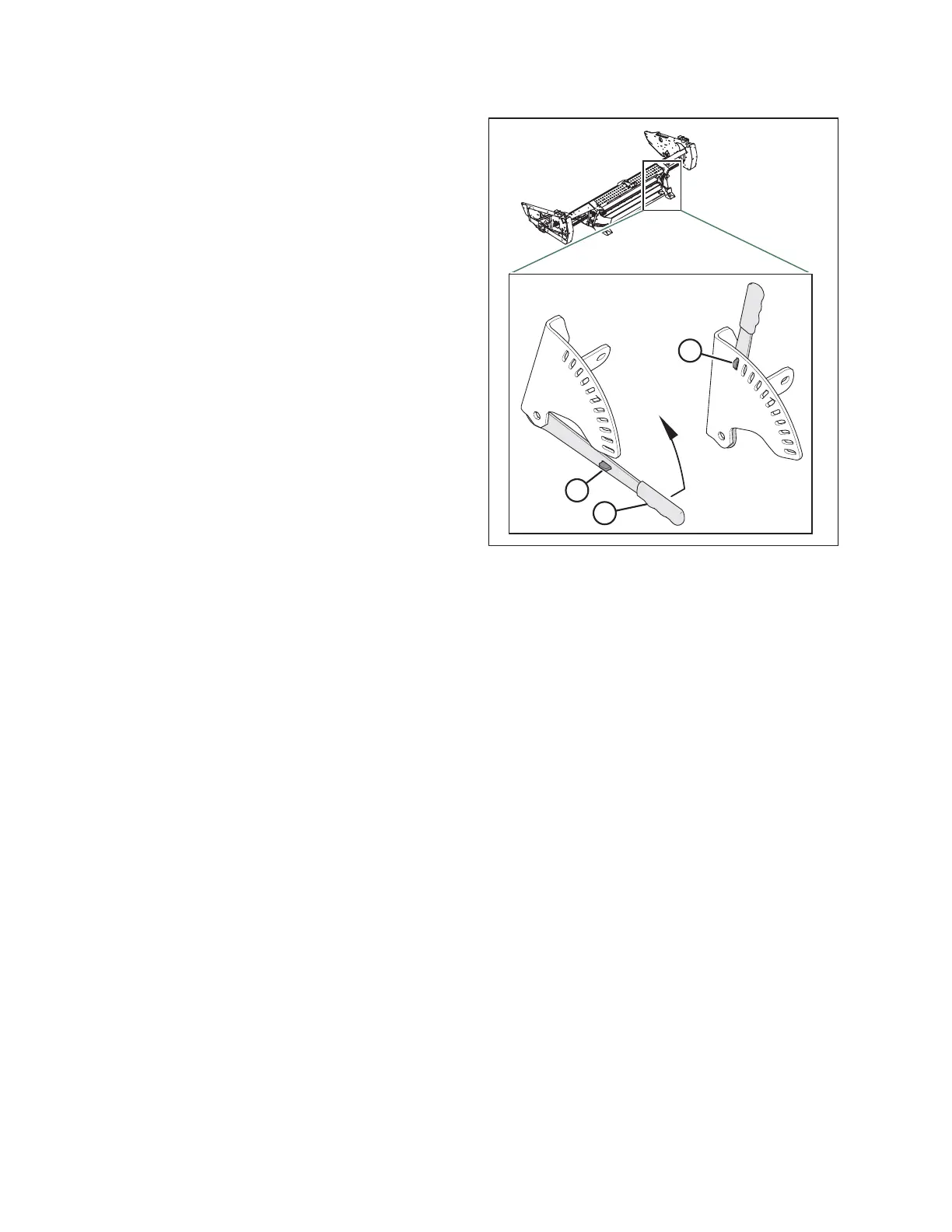

8. Non-GSS headers only: Pull baffle handle (A) towards the
right of the header, and rotate handle until tab (B) locks
into desired slot (C), based on the desired amount of
crop throw.
NOTE:
The baffle is completely open when the tab is locked in top
slot (C) as shown. A completely open baffle will cause the
conditioner to throw the crop as far as possible. Adjust the
baffle position according to the type of crop and/or
windrower attachment. For example, if harvesting heavy
crop using a windrower equipped with a double windrow
attachment (DWA), you might have to open the baffle fully
so the conditioner can throw the heavy crop properly onto
the DWA deck.
ASSEMBLING THE MACHINE
