262335 82 Revision A

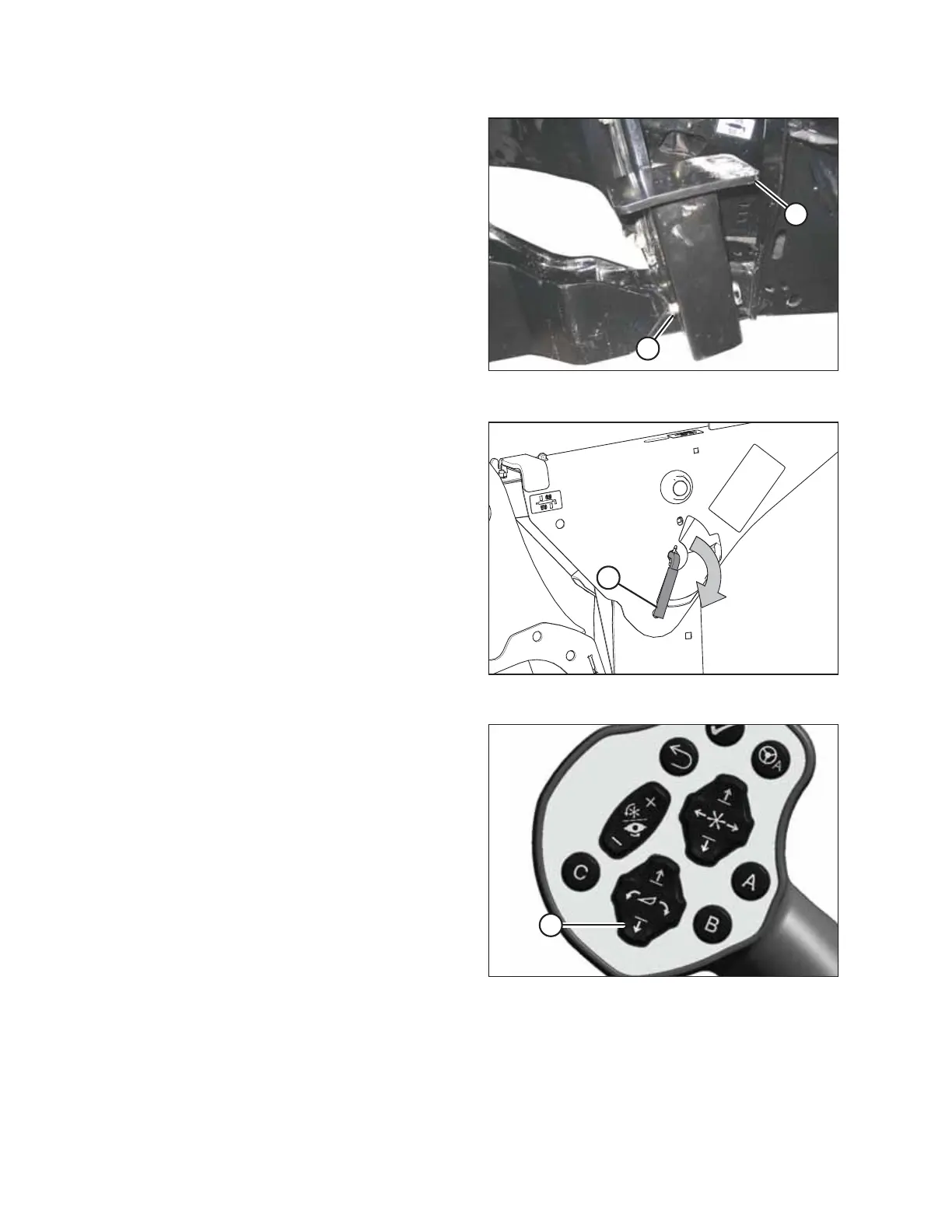

Figure 3.153: Header Stand in Storage Position
13. Remove the lynch pin from clevis pin (A) in stand (B).
14. Hold stand (B) and remove clevis pin (A).
15. Move the stand to its storage position by inverting it and
positioning it onto the bracket as shown. Reinsert clevis
pin (A) and secure it with the lynch pin.
Figure 3.154: Safety Prop Lever
16. Disengage the safety props on both lift cylinders as follows:
a. Turn lever (A) away from the header to raise the safety
prop until the lever locks into the vertical position.
b. Repeat the previous step for the opposite cylinder.
NOTE:
If the safety prop will NOT disengage, raise the header to
release the prop.
17. Start the engine.
Figure 3.155: Ground Speed Lever (GSL)
18. Press HEADER DOWN switch (A) on the GSL to fully lower
the header.
ASSEMBLING THE MACHINE
