3.15.3 Converting from Transport to Field Position
The header needs to be converted back to field position if it was towed to a new location.
Removing Tow-Bar
The transport tow-bar can easily be disassembled and stored on the header.
1001721
A
B
C
D

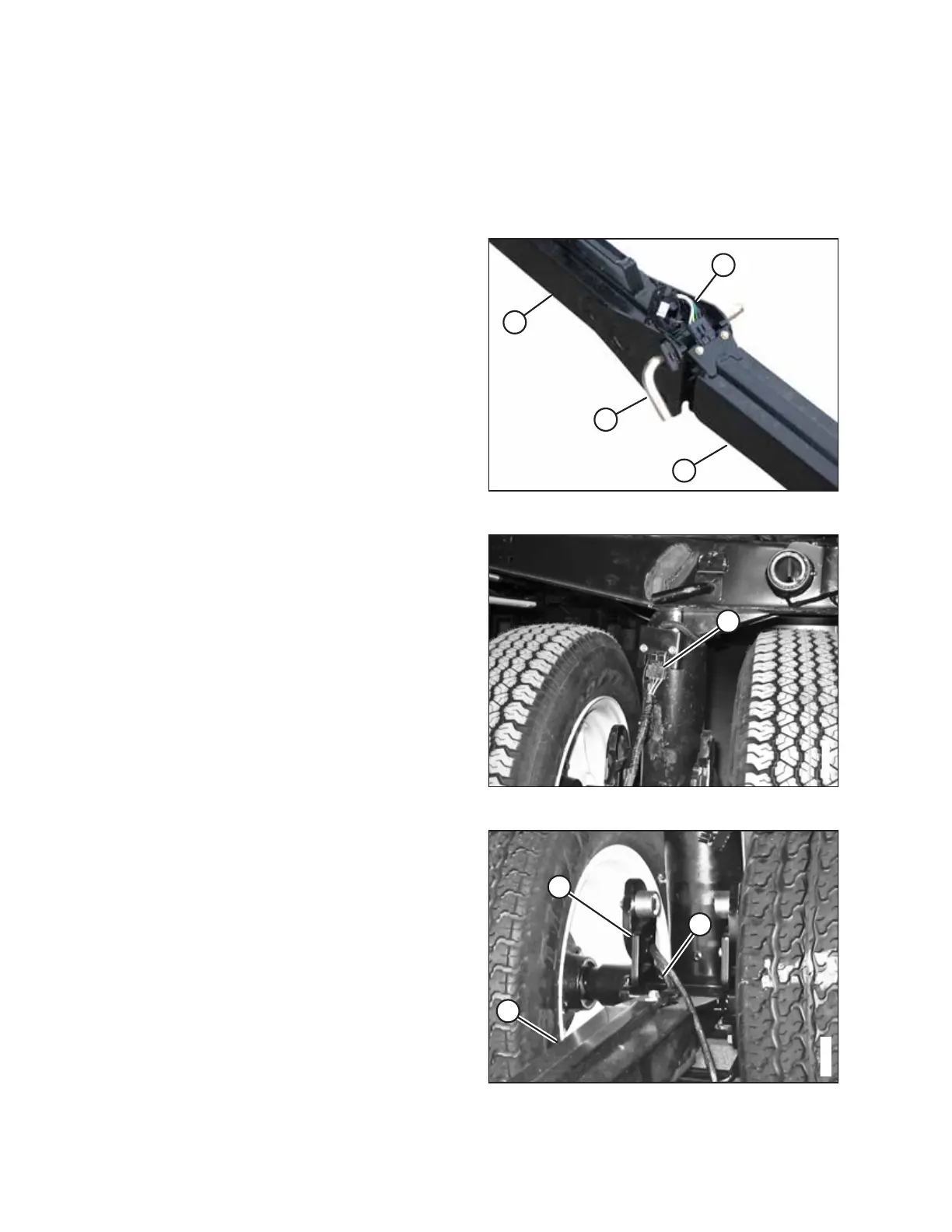

Figure 3.84: Tow-Bar Assembly
1. Block the tires to prevent the header from rolling, and
unhook the header from the towing vehicle.
2. Disconnect electrical connector (A) on the tow-bar.
3. Remove pin (B) from the tow-bar, and detach outer
section (C) from inner section (D).
1001725
A
Figure 3.85: Wiring Connector
4. Disconnect electrical connector (A) at the front wheel.
1001154
A
B
C
Figure 3.86: Tow-Bar Latch
5. Remove clevis pin (A) and set aside for reinstallation.
6. Push latch (B) and lift tow-bar (C) from the hook.
Release latch.
7. Install clevis pin (A).
