MacDon D65 - Installing Crop Dividers with Latch Option Onto Header

214327 73 Revision B
1001841
A
B

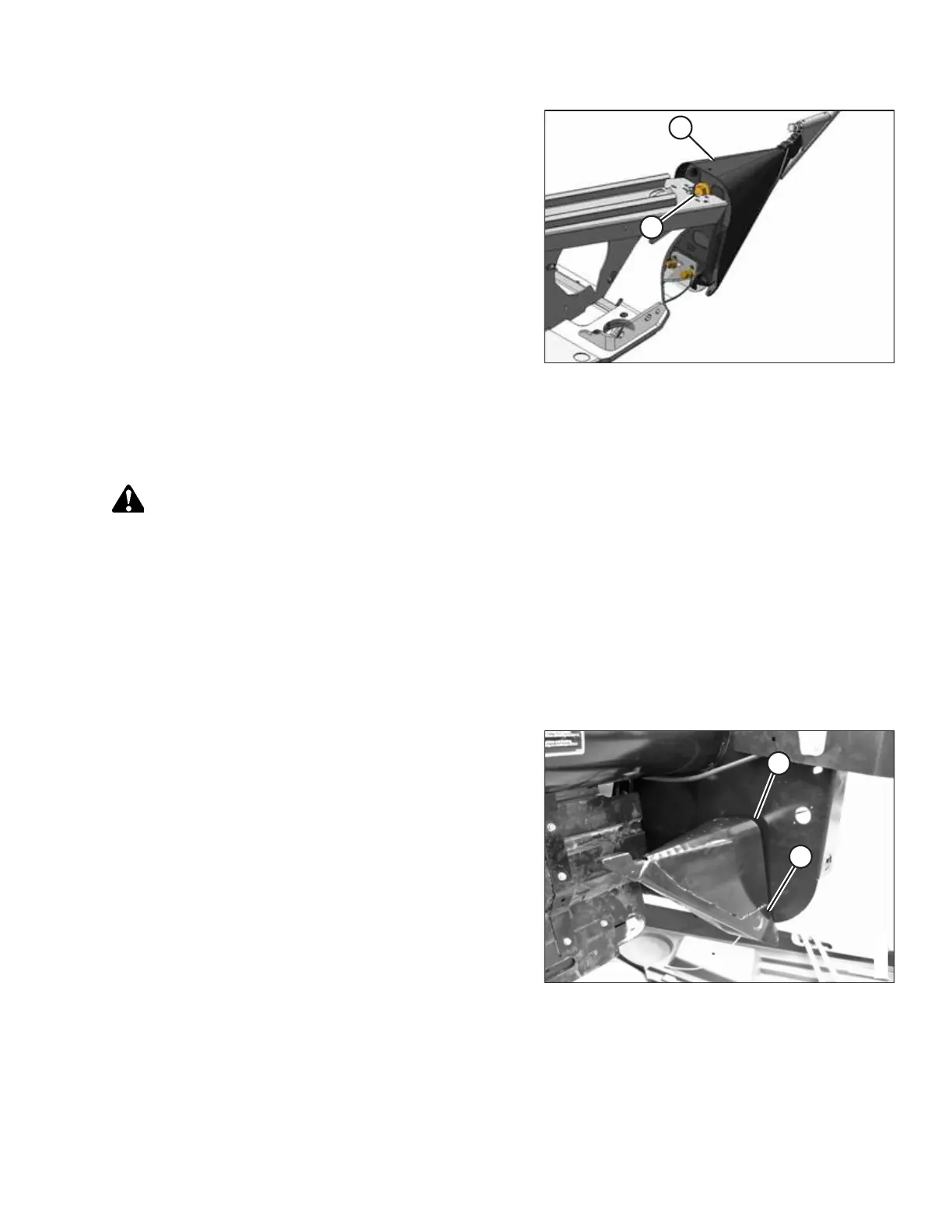

Figure 3.58: Crop Divider
6. Remove bolt (A), lock washer, and flat washer.
7. Lower crop divider (B) and then lift the crop divider to
remove it from the endsheet.
8. Close or install the endshields. For instructions, refer to
3.2.3 Endshields, page 35.
Installing Crop Dividers with Latch Option onto Header
To correctly install crop dividers with the latch option, follow the recommended installation procedure provided here.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine,
remove the key, and engage the safety props before going under the header for any reason.
1. Lower the reel fully.
2. Raise the header fully.
3. Shut down the engine, and remove the key from the ignition.
4. Engage the safety props. For instructions, refer to your windrower operator’s manual.
5. Open or remove the endshields. For instructions, refer to 3.2.3 Endshields, page 35.
1001837
B
A
Figure 3.59: Stored Crop Divider
6. Remove the crop divider from the storage location by lifting
the crop divider to disengage lugs (A) at the lower end and
then lowering it slightly to disengage pin (B) from the
endsheet.
OPERATION
