MacDon D65 - Component Identification

214327 29 Revision B
2.3 Component Identification

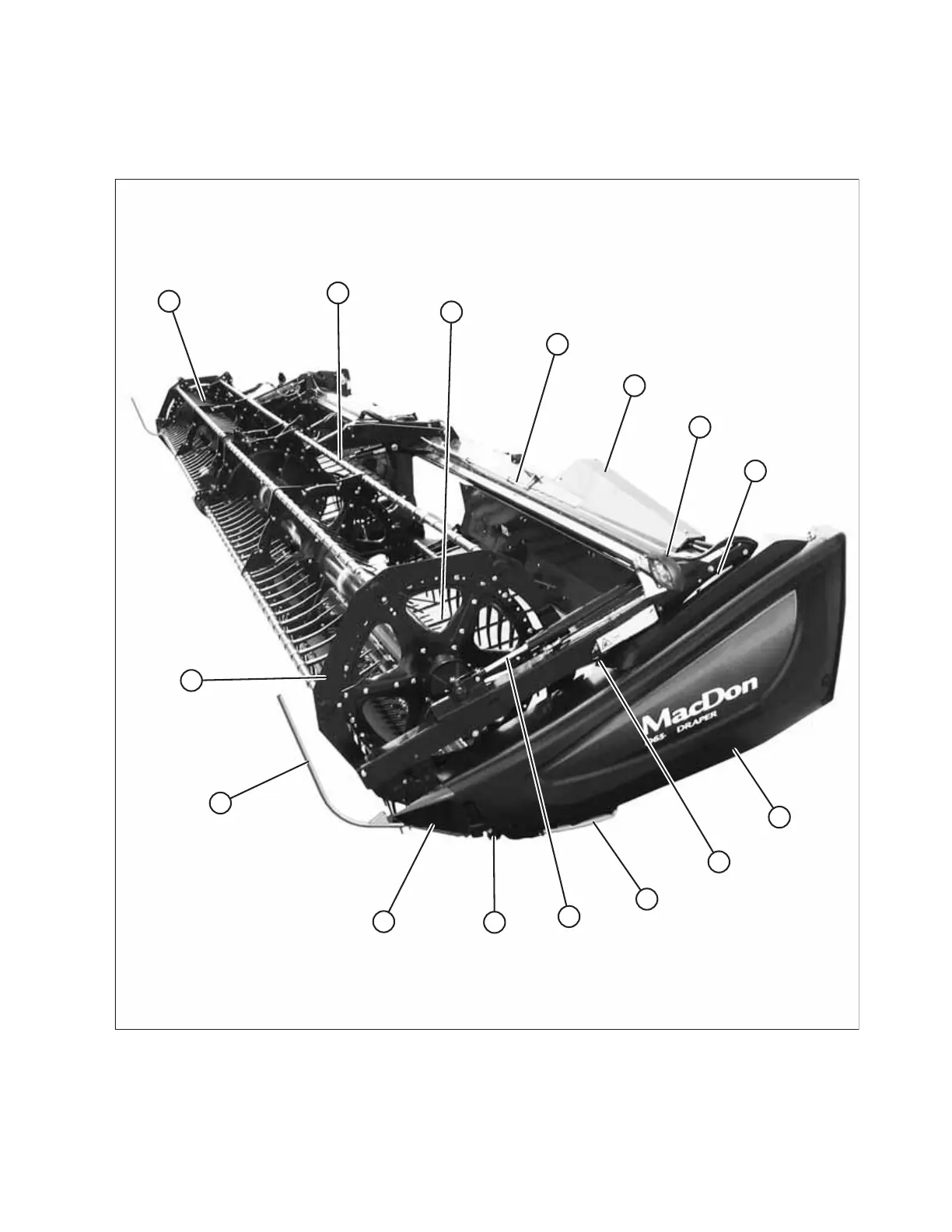

Figure 2.2: D65 Windrower Header Components
1004151
A
B
C
D
E
F
G
H
K
J
M
N
P
Q
L
A - Reel Cam B - Pick-Up Reel Tines C - Drapers
D - Center Reel Arm Prop Handle E - Hydraulic Connections F - Transport Light
G - Reel Safety Prop H - Endshield J - Reel Lift Cylinder
K - Skid Shoe L - Reel Fore-Aft Cylinder M - Knife Drive Box
N - Crop Divider P - Crop Divider Rod Q - Reel Endshield
PRODUCT OVERVIEW
