MacDon D65 - Closing Endshield

214327 36 Revision B
1001363

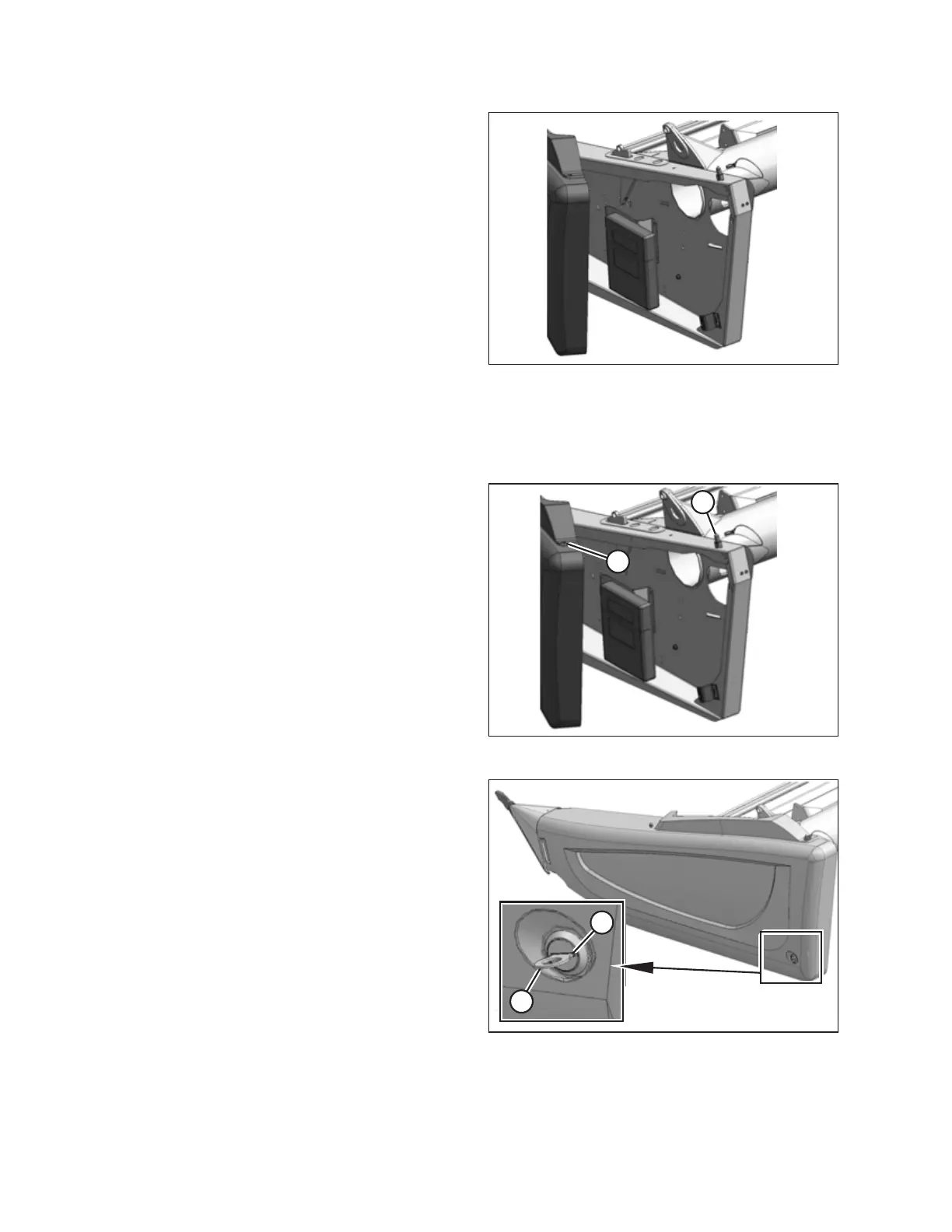

Figure 3.9: Left Endshield Open
IMPORTANT:
Do NOT force the endshield once it has reached its end of
travel or damage to the endshield structure may result. The
endshield is designed to open sufficiently to allow access to
the drive system and manual case.
NOTE:
To access the knife drive box, carefully disengage the front
of endshield from the tab at the front of the endsheet and
swing the front of the endshield away from the header.
NOTE:
If complete access to endsheet area is required, remove
endshield. For instructions, refer to Removing Endshield,
page 37.
Closing Endshield
The header endshields cover components. After accessing the components you will need to close the endshield.
1013787
B
A
Figure 3.10: Left Endshield
1. Maintain forward pressure and swing the rear of the
endshield towards the header.
2. Lift the endshield and engage pin (A) located on the top of
the endsheet frame with the hole in endshield (B).
1001368
B
A
Figure 3.11: Left Endshield
3. Push in the endshield to engage lower latch (A).
4. Use tool (B) to lock lower latch (A).
OPERATION
