MacDon D65 - Installing Wide Draper Deflectors

214327 197 Revision B
7. Open the endshield. For instructions, refer to Opening Endshield, page 35.
1009951
A
B

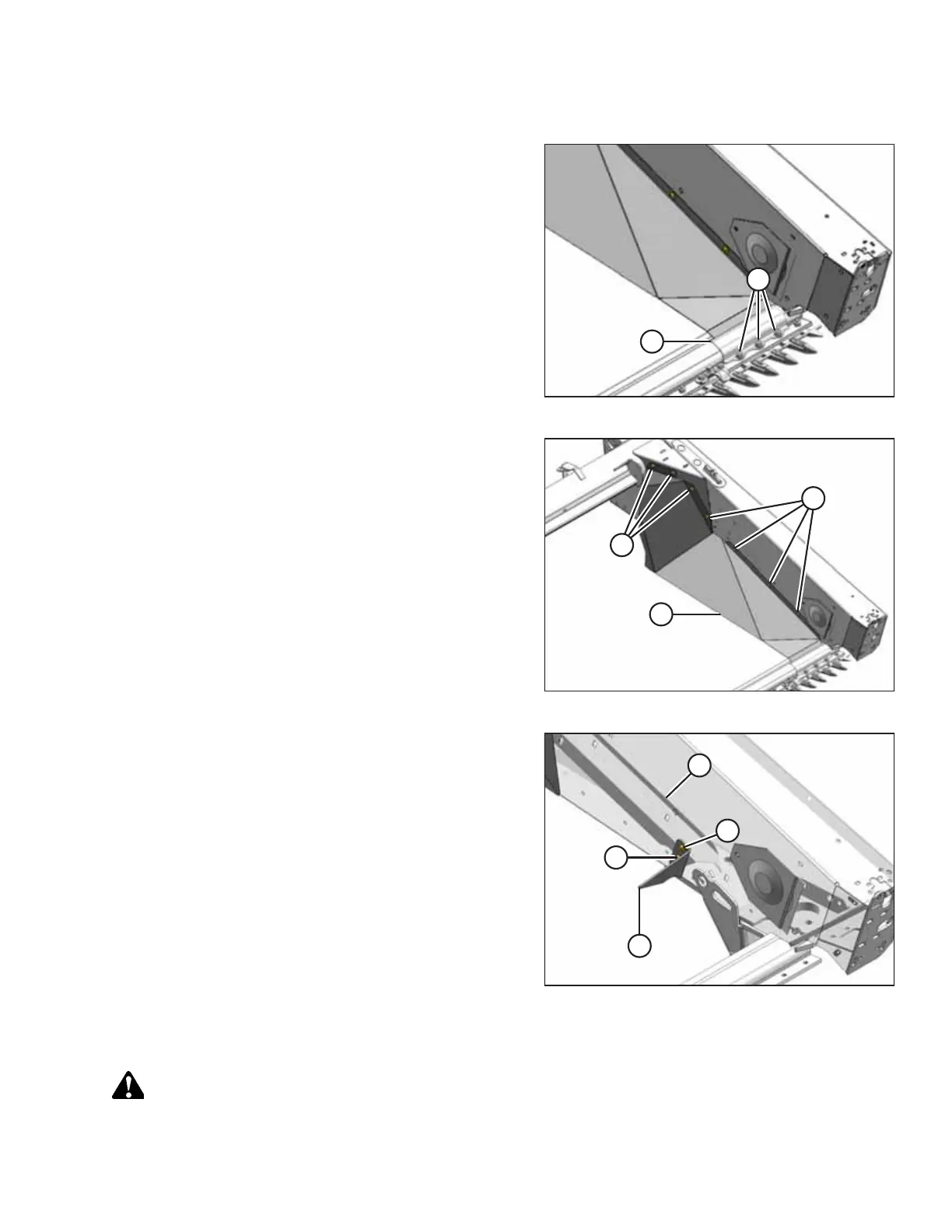

Figure 5.142: Deflector Retainer
8. Loosen nuts (A) on the cutterbar until retainer (B) is loose.
1009952
A
B
C
Figure 5.143: Wide Deflector
9. Remove fasteners securing the deflector to the endsheet.
Nuts (A) are accessible from the side of the endshield, and
nuts (B) on the uppermost fasteners are accessible from
behind deflector (C).
10. Remove deflector (C).
1025209
B
A
C
D
Figure 5.144: Deflector Support
11. Remove bolts (A) and (D), and remove deflector
support (B).
12. Reinstall bolt (D) (if not reinstalling support [B]) to secure
belt guide (C) to the opposite side of the endsheet.
Otherwise, position support (B) as shown, and secure it
with bolt (D).
13. Repeat this procedure at the opposite end of the header.
Installing Wide Draper Deflectors
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before making adjustments to the machine.
