6.4 Crop Delivery
6.4.1 Draper Deflector (Narrow)
1004867

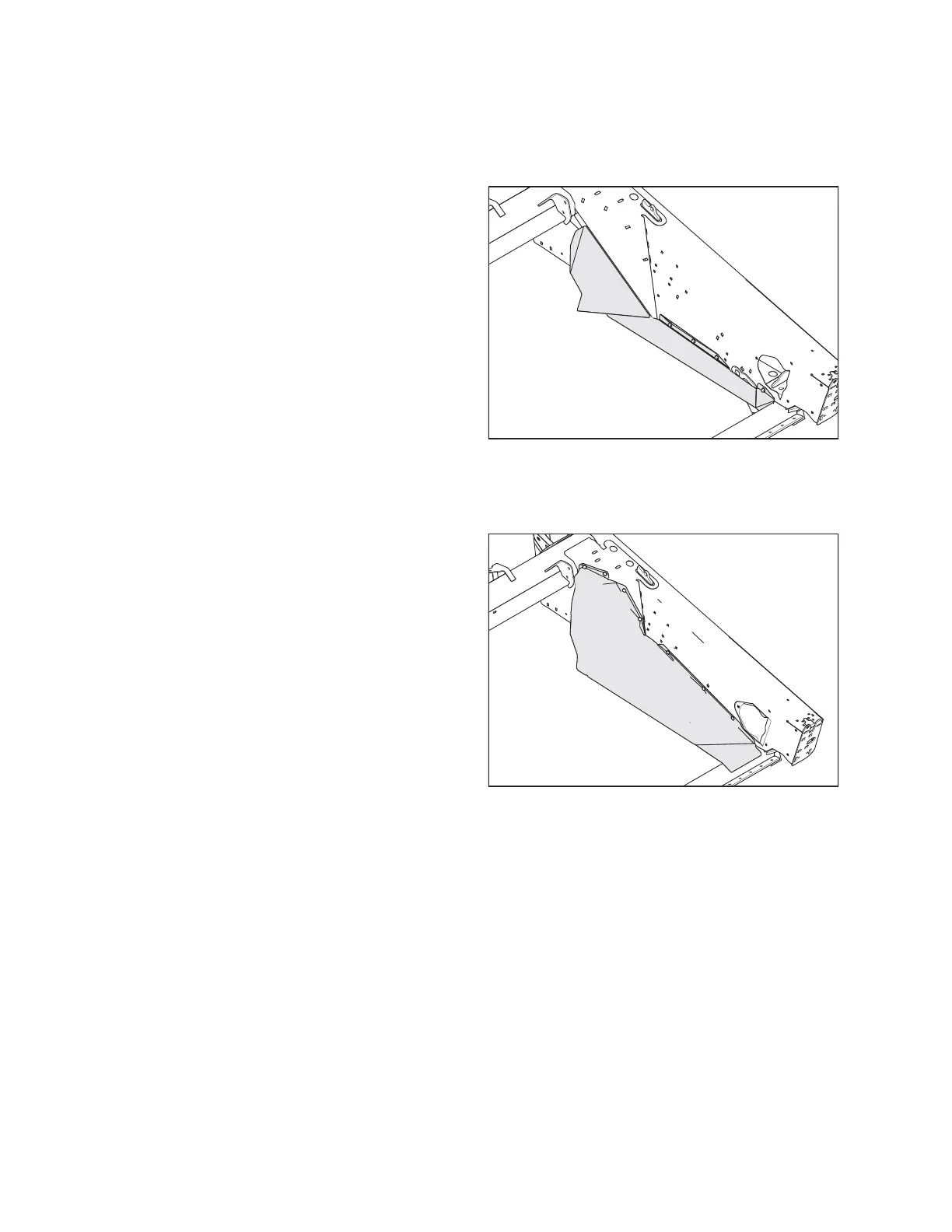

Figure 6.12: Draper Deflector (Narrow)
Narrow metal draper deflectors attach to the inboard side of
the endsheets to prevent material from falling through the gap
between the endsheet and the draper while minimizing reel
carryover in bushy crops.
NOTE:
Narrow draper deflectors are not recommended for double
windrowing – wide draper deflectors are available for this
purpose.
Refer to your parts catalog for the necessary parts.
6.4.2 Draper Deflector (Wide)
1004865
Figure 6.13: Draper Deflector (Wide)
Wide metal draper deflectors attach to the inboard side of the
endsheets to prevent material from falling through the gap
between the endsheet and the draper.
NOTE:
Required for double windrowing only (leaves a gap between the
standing crop and the windrow for the divider to run through).
Refer to your parts catalog for the necessary parts.
