214327 38 Revision B
Installing Endshield

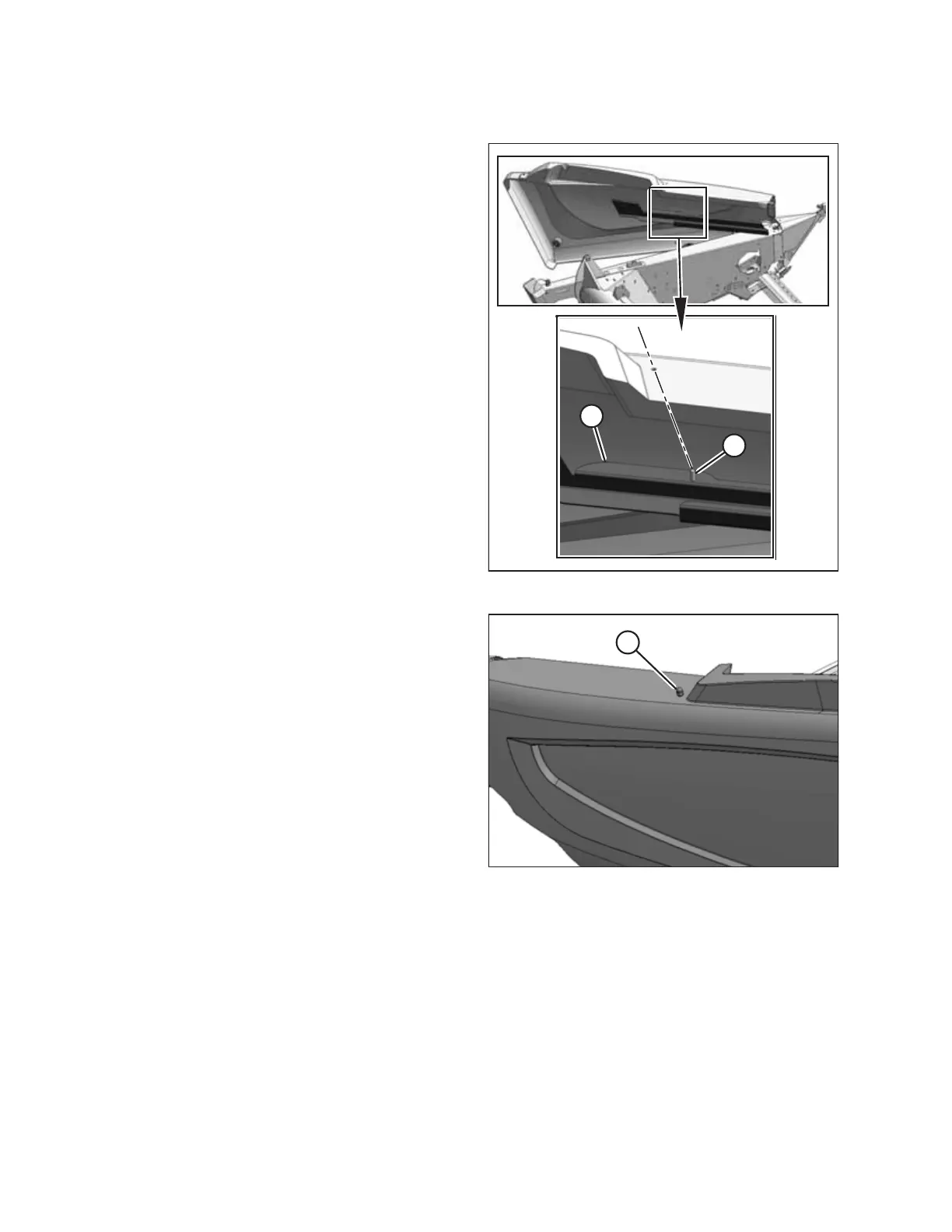

Figure 3.14: Left Endshield
1. Position the endshield onto support (A), and align the hole
in the endshield with stud (B) on the support.
Figure 3.15: Left Endshield
2. Secure the endshield to the support with acorn nut (A).
3. Close the endshield. Refer to Closing Endshield, page 36.
NOTE:
Polyethylene endshields may expand or contract when
subjected to large temperature changes. Top pin and lower
catch bracket positions can be adjusted to compensate for
dimensional changes. Refer to Adjusting Endshield, page 39.
OPERATION
