3.6.3 Reel Settings
The combination of reel positions and reel cam settings allow the operator to adjust to various crops and conditions.
The following chart illustrates the reel profile at each cam setting and the reel location relative to the ground at different
positions on the reel arm. Refer to 3.6.2 Header Settings, page 44 for applicability of each finger pattern and reel position.

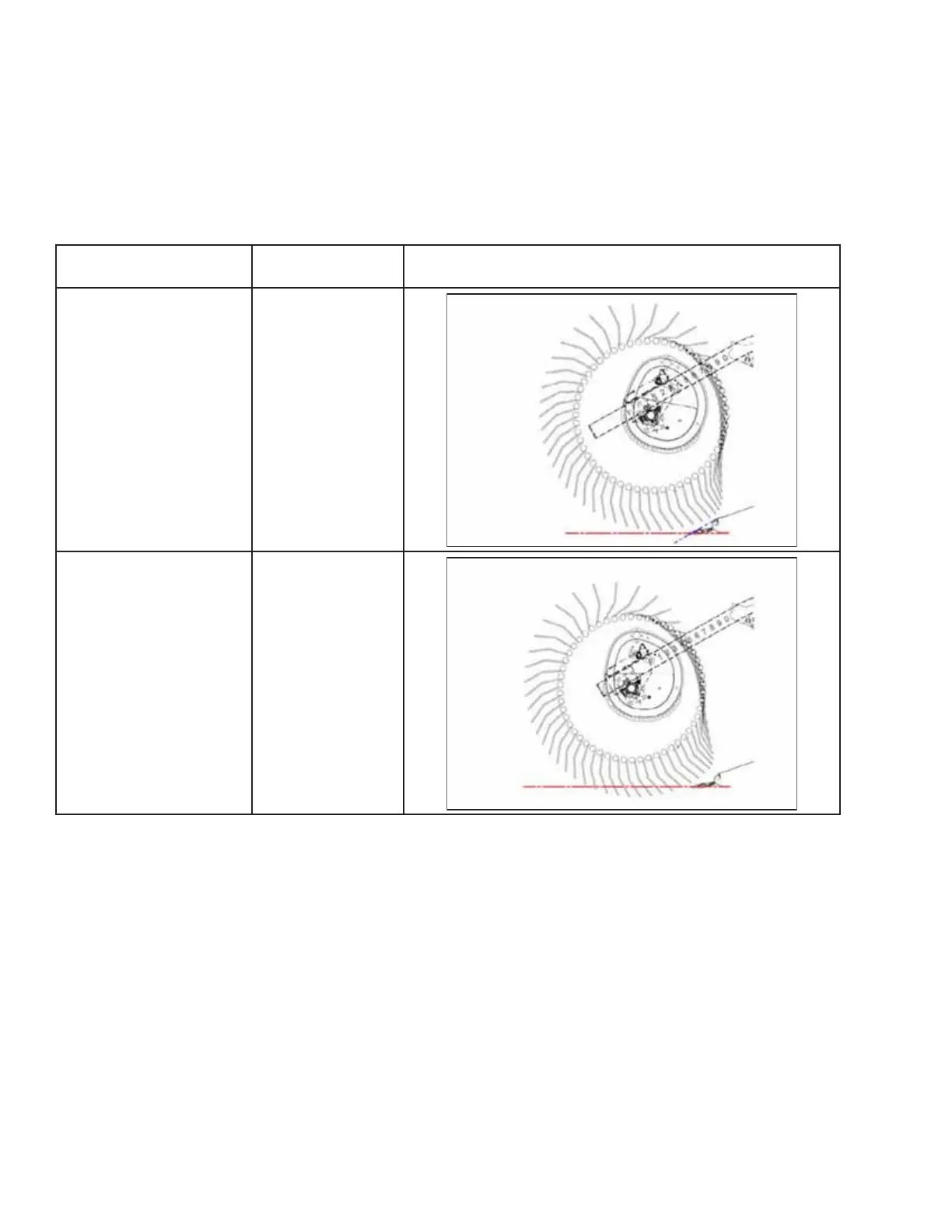

Table 3.3 D65 Recommended Reel Settings
Cam Setting Number
(Finger Speed Gain)
Reel Position
Number
Reel Finger Pattern
1 (0)
6or7
1001819
2 (20%)
3or4
1001820
