MacDon D65 - Removing Crop Dividers Without Latch Option from Header

214327 72 Revision B
1005674
A
B
C

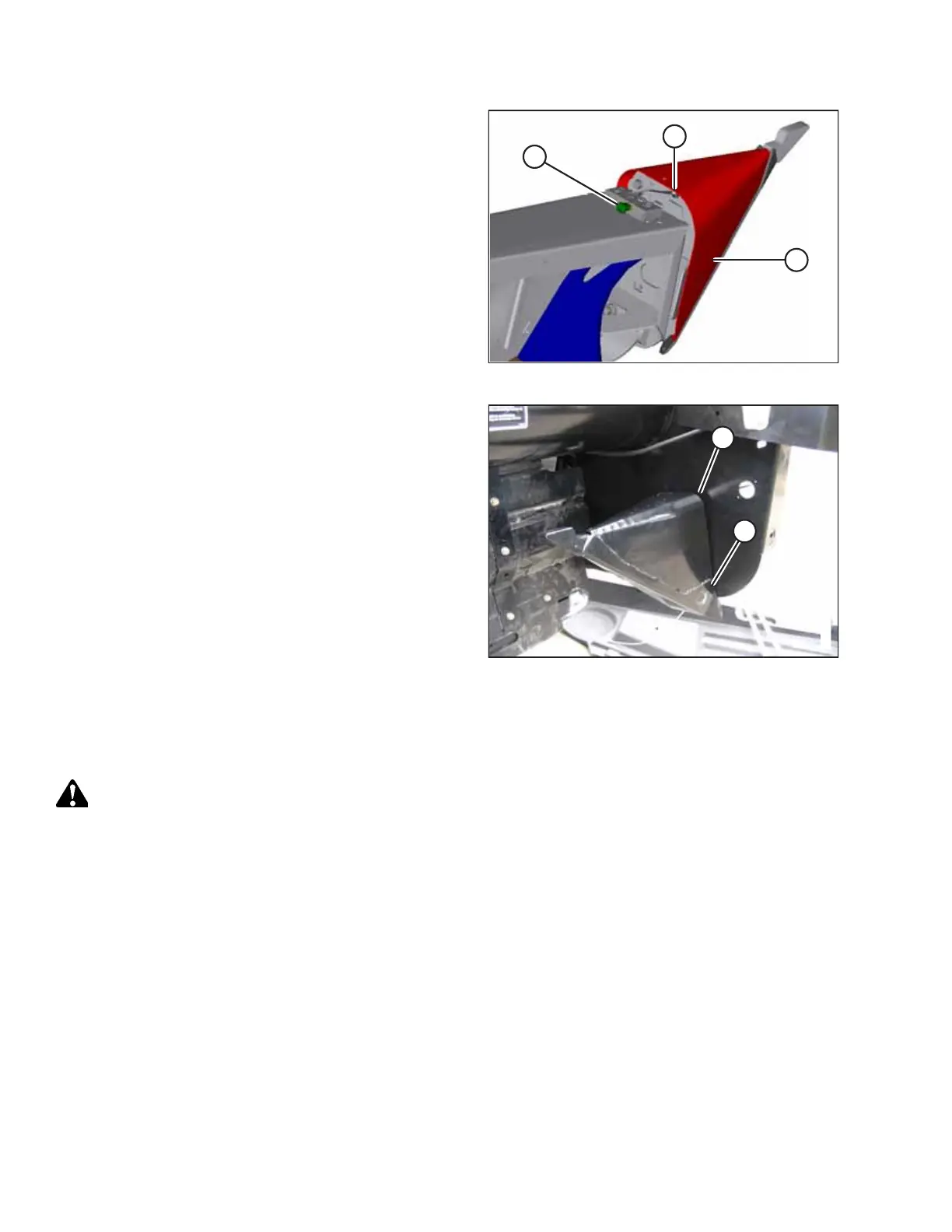

Figure 3.56: Crop Divider
6. Lift safety lever (A).
7. Hold onto crop divider (B), push lever (C) to open the latch,
and lower the crop divider.
1001833
A
B
Figure 3.57: Stored Crop Divider
8. Lift the crop divider off the endsheet and store as follows:
a. Insert the pin on the crop divider into the hole in the
endsheet at location (A) as shown.
b. Lift the crop divider and position lugs (B) on the crop
divider into the bracket on the endsheet. Ensure the
lugs engage the bracket.
9. Close or install the endshields. For instructions, refer to
3.2.3 Endshields, page 35.
Removing Crop Dividers without Latch Option from Header
To correctly remove crop dividers without the latch option, follow the recommended removal procedure provided here.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine,
remove the key, and engage the safety props before going under the header for any reason.
1. Lower the reel.
2. Raise the header fully.
3. Shut down the engine, and remove the key from the ignition.
4. Engage the header safety props. For instructions, refer to your windrower operator’s manual.
5. Open or remove the endshields. For instructions, refer to 3.2.3 Endshields, page 35.
OPERATION
