214327 116 Revision B
4.2 Detaching Header from Windrower
To detach the header from an M Series Windrower, follow the procedure provided here.
1. Lower the header fully.
2. Lower the reel fully.
3. Shut down the engine, and remove the key from the ignition.
Disconnecting reel hydraulics:

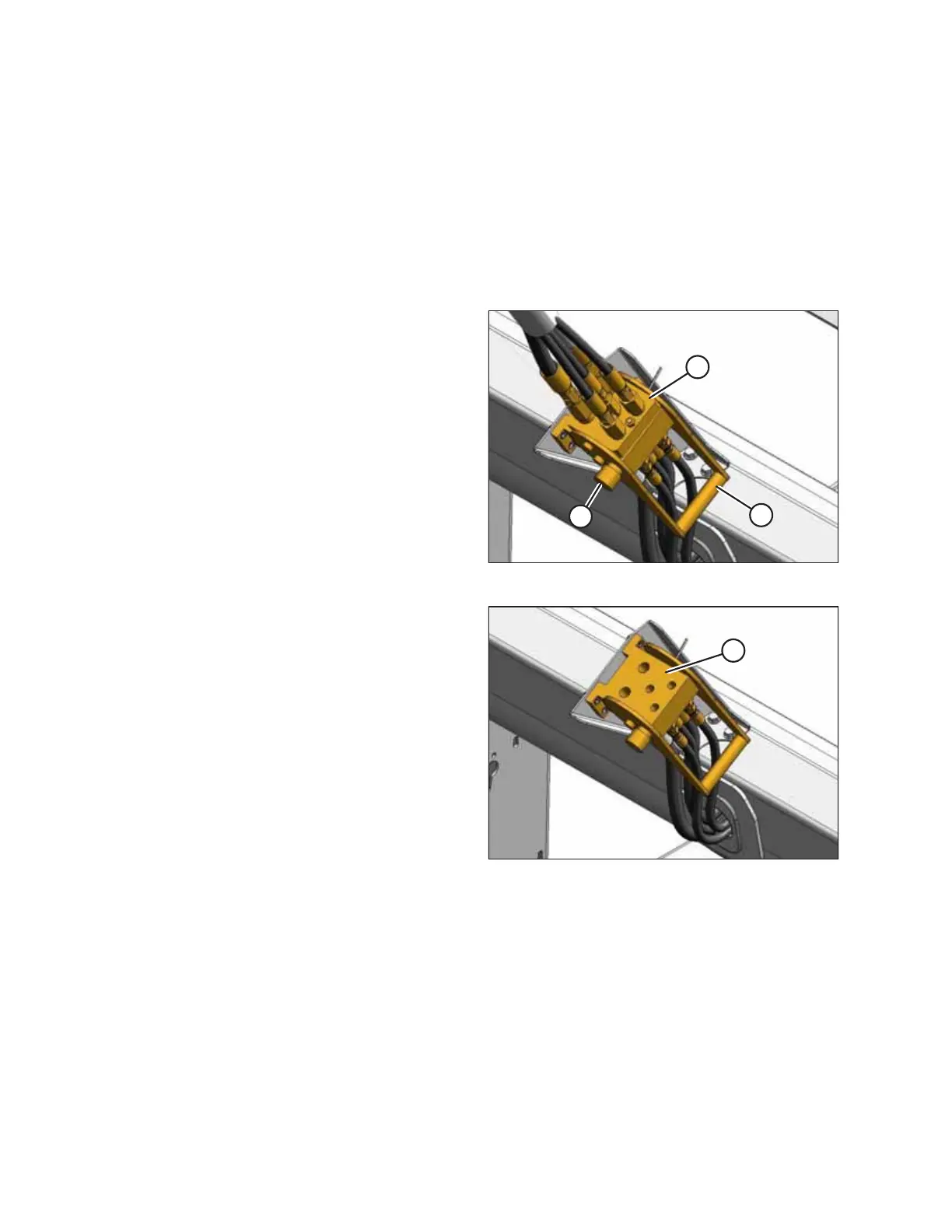

Figure 4.8: Reel Hydraulics
4. Push in lock button (A) and pull handle (B) to disengage
multicoupler (C) from the header receptacle.
5. Route the hose bundle back onto the windrower and store
multicoupler (C) on the hose support.
Figure 4.9: Closed Receptacle Cover
6. Close the cover on header receptacle (A).
HEADER ATTACHMENT/DETACHMENT
