MacDon D65 - Installing Narrow Draper Deflectors

214327 200 Revision B
1010032
B
A
C

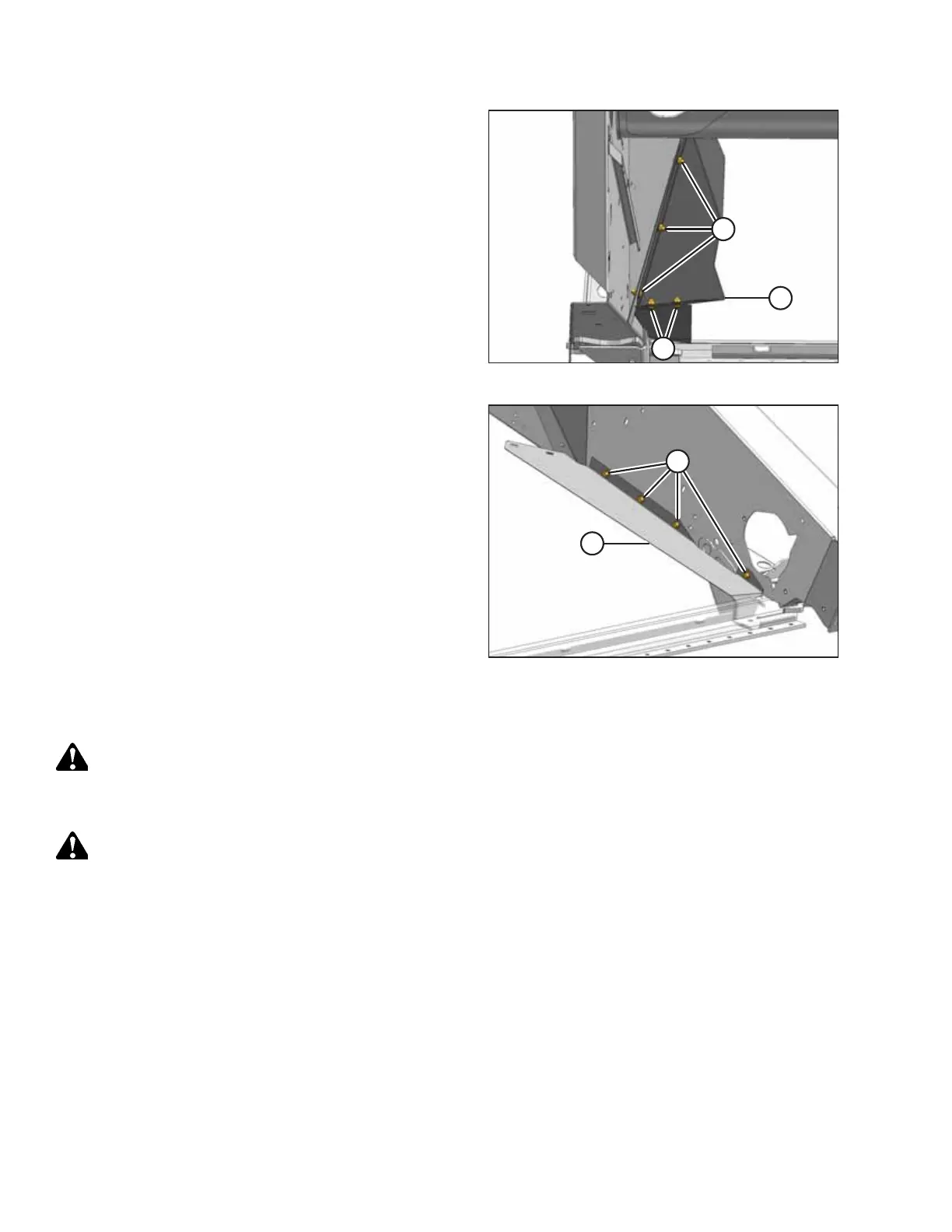

Figure 5.148: Aft Deflector
7. Open the endshield. For instructions, refer to Opening
Endshield, page 35.
8. Remove two Torx
®
head screws (A) and lock nuts.
9. Remove three carriage bolts (B) and lock nuts, and remove
aft deflector (C).
1010031
B
A
Figure 5.149: Forward Deflector
10. Remove four screws (A) and remove deflector (B).
11. Repeat this procedure for the opposite end of the header.
Installing Narrow Draper Deflectors
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before making adjustments to the machine.
WARNING
To prevent bodily injury from the fall of a raised reel, always engage the reel safety props before going under the
raised reel for any reason.
1. Raise the reel fully.
2. Lower the header fully.
3. If hydraulic deck shift is installed: Shift the decks to create work space at one end of the header.
4. Shut down the engine, and remove the key from the ignition.
5. Engage the reel safety props. For instructions, refer to Engaging Reel Safety Props, page 33.
6. If hydraulic deck shift is NOT installed: Move the decks manually to create work space at one end of the header.
7. Open the endshield. For instructions, refer to Opening Endshield, page 35.
MAINTENANCE AND SERVICING
