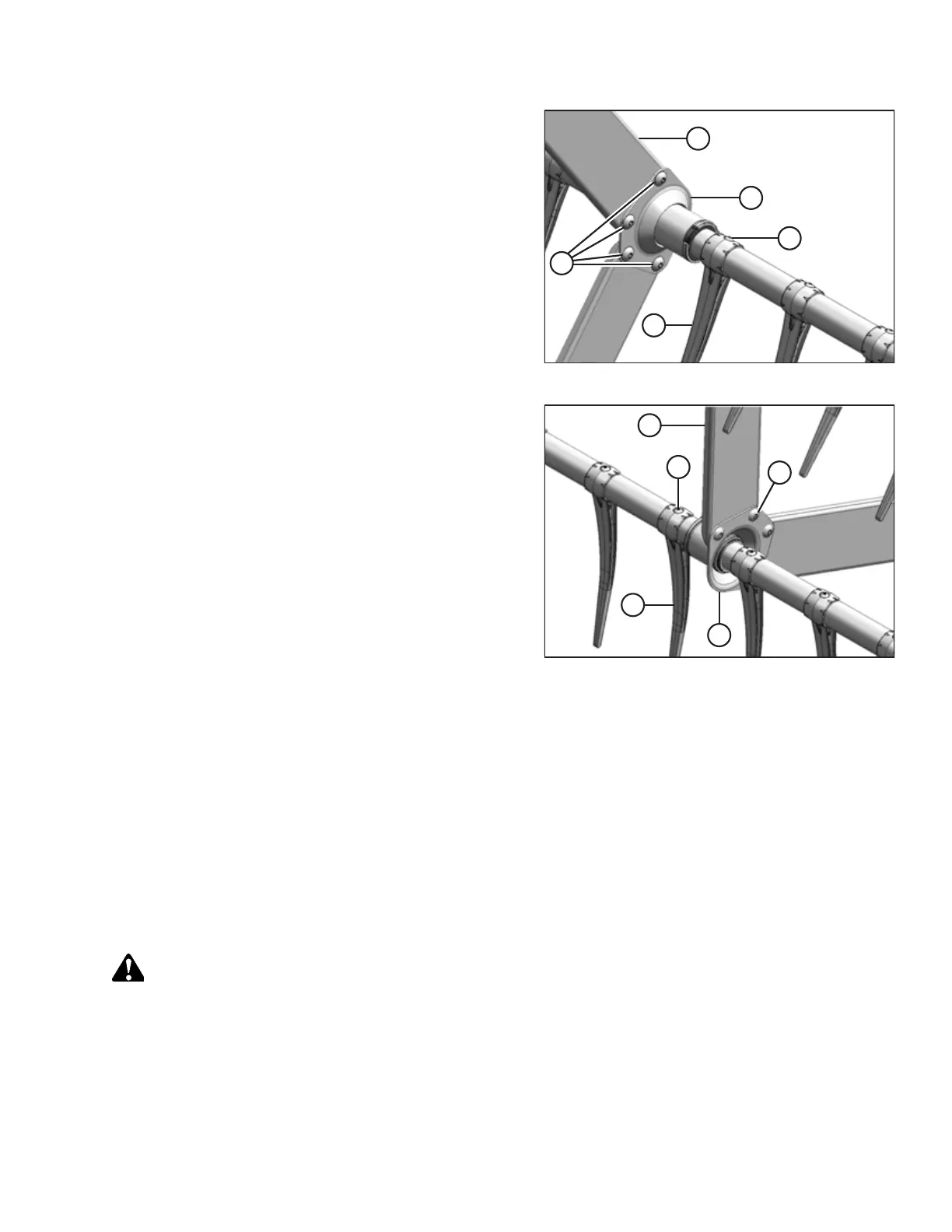

Figure 5.201: Tine Tube Support
26. Reattach channels (C) to support (A) with screws (B) and
nuts. Torque the screws to 43 Nm (32 lbf∙ft).
27. Reinstall any fingers (D) that were previously removed
using screws (E). For instructions, refer to Installing Plastic
Fingers, page 210.
Figure 5.202: Opposite Support
5.8.6 Reel Endshields
Reel endshields and supports do not require regular maintenance, but they should be checked periodically for damage and
loose or missing fasteners. Slightly dented or deformed endshields and supports are repairable, but severely damaged
components must be replaced.
You can attach reel endshields to either end of the reel.
Replacing Reel Endshields
Reel endshields and supports do not require regular maintenance, but they should be checked periodically for damage and
loose or missing fasteners. Slightly dented or deformed endshields and supports are repairable, but it’s necessary to
replace severely damaged components.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
