214327 222 Revision B

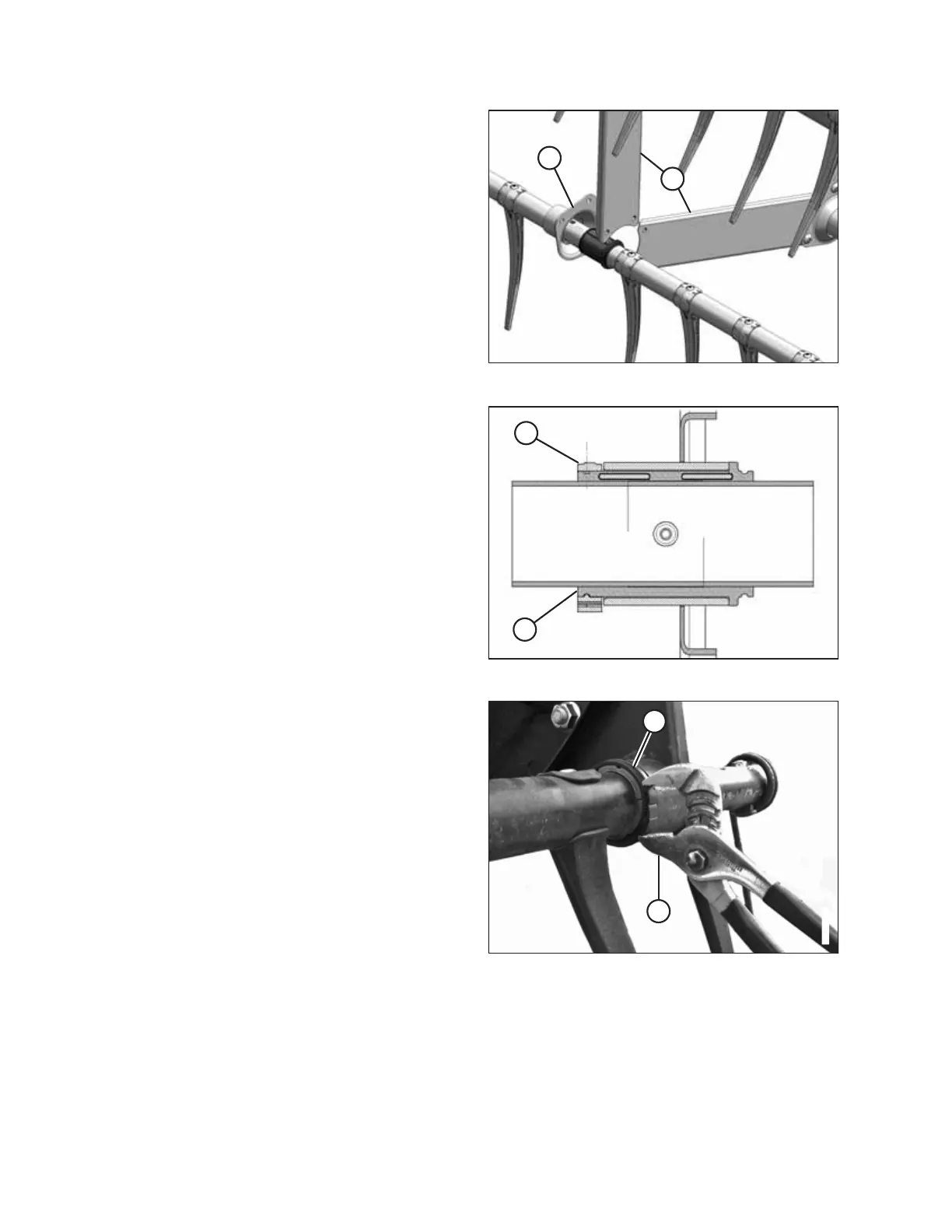

Figure 5.198: Opposite Support
22. For the opposite tine tube, rotate support (A) or slightly
move the tine tube until it clears channels (C).
Figure 5.199: Bushing
23. Install bushing clamp (A) onto the tine tube adjacent to the
flangeless end of bushing (B).
24. Position clamp (A) on bushing (B) so the edges of the clamp
and bushing are flush when the clamp is fit into the groove
on the bushing and the lock tabs are engaged.
Figure 5.200: Clamp on Bushing
25. Tighten clamp (A) using modified channel lock pliers (B)
until finger pressure will NOT move the clamp.
IMPORTANT:
Overtightening the clamp might break the clamp.
MAINTENANCE AND SERVICING
