214327 221 Revision B
1004614
B
C
A

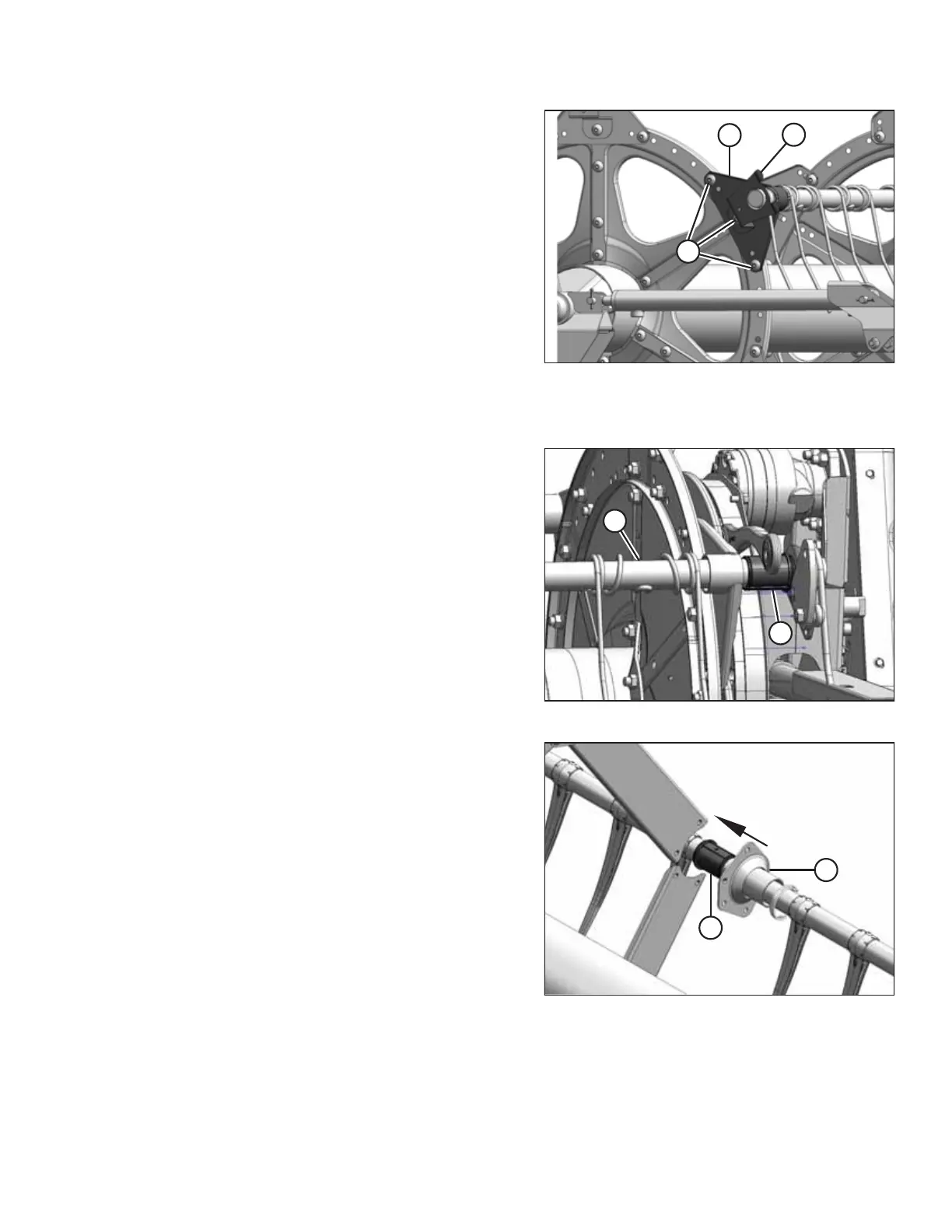

Figure 5.195: Tail End
18. Install bolts (A) securing arm (B) to the center disc.
19. Install reel arm (B) and endshield support (C) to the tail end
of the reel at the applicable tine tube location, and secure
them with bolts (A).
Installing tine tube support (if installed) bushings:
1004616
A
B
Figure 5.196: Cam End
20. Position bushing halves (B) on the tine tube with the
flangeless end adjacent to the reel arm, and position the
lug in each bushing half into the hole in tine tube (A).
1020908
A
B
Figure 5.197: Support
21. Slide support (A) onto bushing (B).
MAINTENANCE AND SERVICING
