214327 245 Revision B
6.1.6 Tine Tube Reinforcing Kit

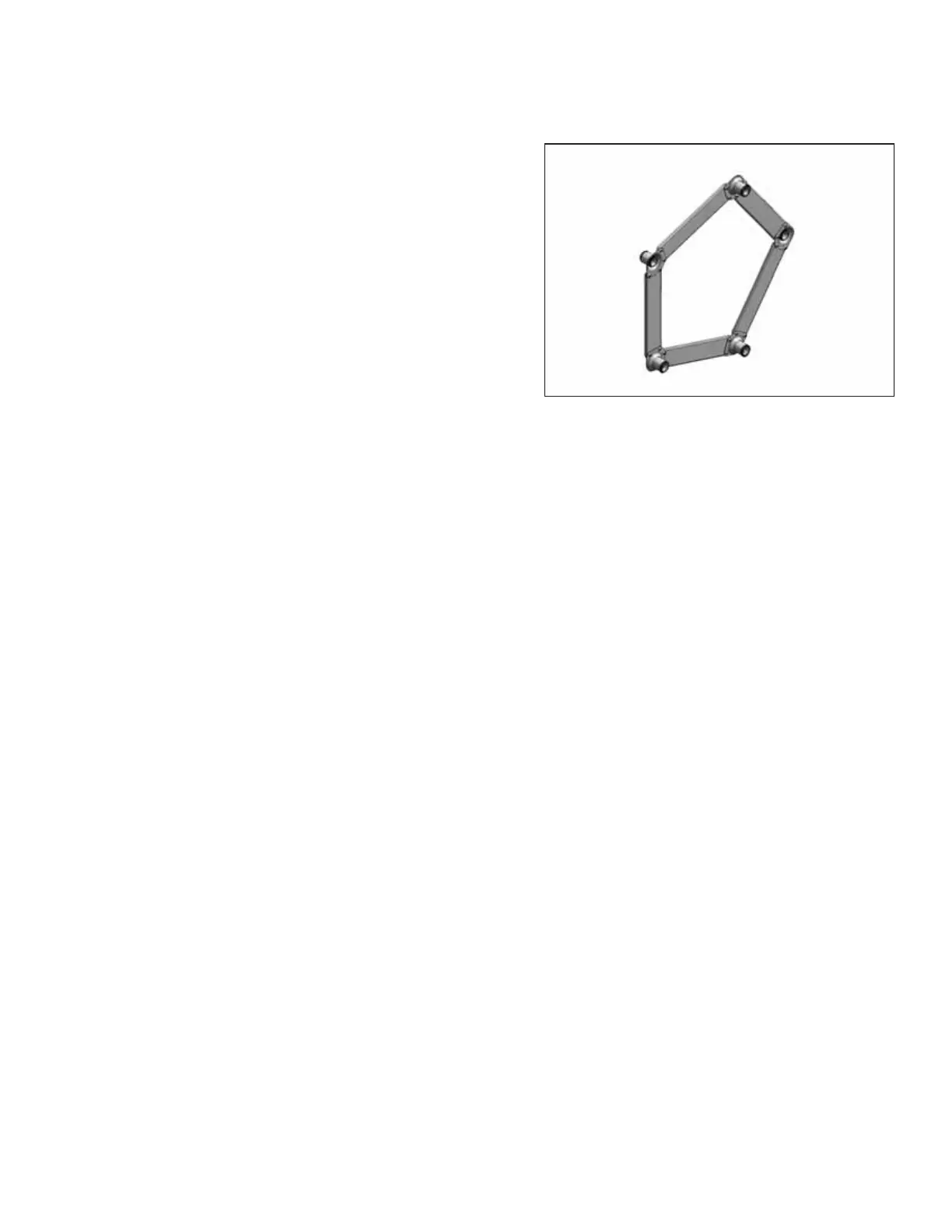

Figure 6.5: Five-Bat Reinforcing Kit Shown – Six-Bat
Reinforcing Kit Similar
Tine tube reinforcing kits are available for five- and six-bat reels.
They are designed to support high reel loads when cutting
extremely heavy crops.
Installation instructions are included in the kit.
• Five-Bat Reels – MD #B5825
• Six-Bat Reels – MD #B5826
OPTIONS AND ATTACHMENTS
