Double-Reel Drive:
1012795
A
B
C

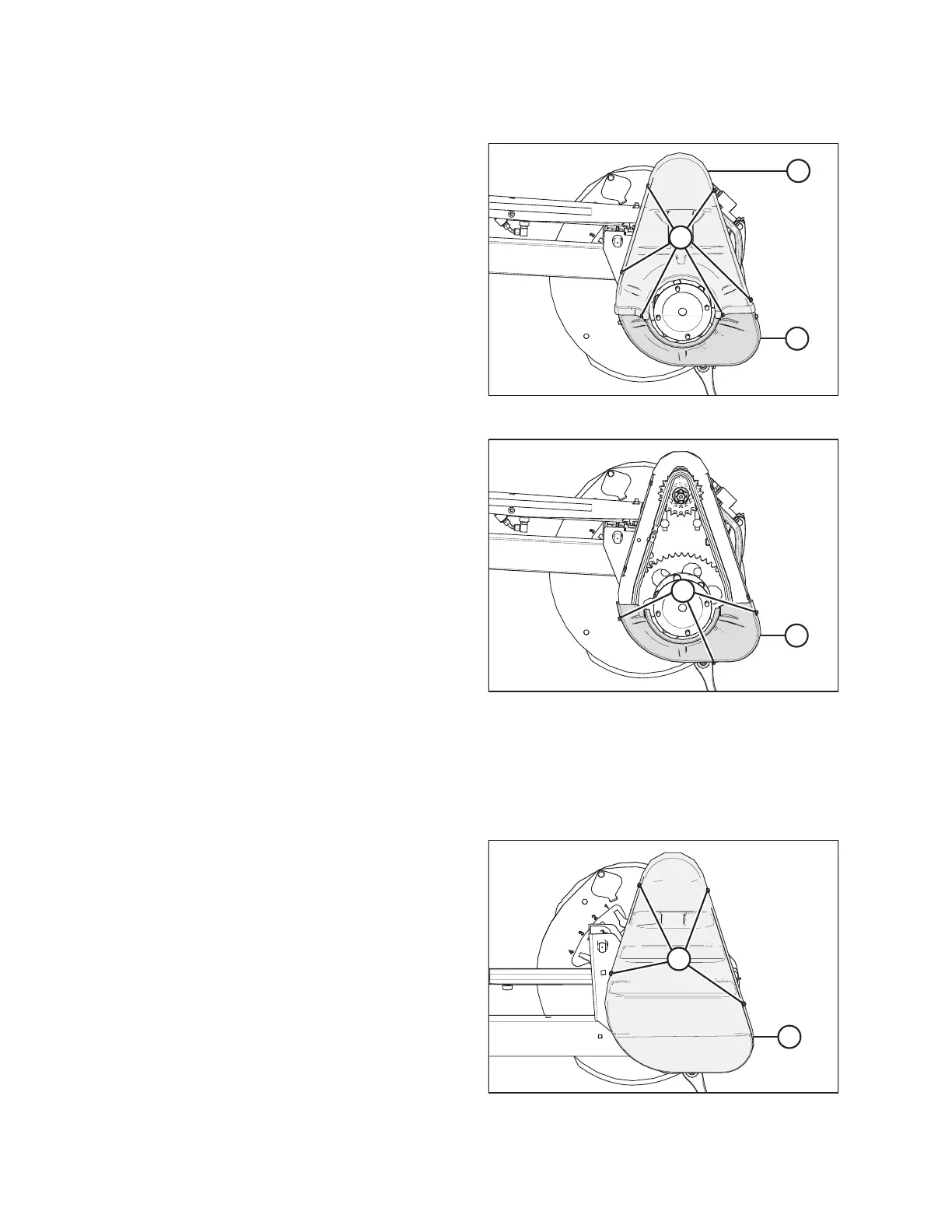

Figure 5.210: Drive Cover – Double Reel
3. Stop the engine, and remove the key from the ignition.
4. Remove six bolts (A) securing upper cover (B) to the reel
drive and lower cover (C).
1012796
A
B
Figure 5.211: Drive Cover – Double Reel
5. Remove three bolts (A) and remove lower cover (B) if
necessary.
Installing Reel Drive Cover
The reel drive cover protects the drive components from weather and debris.
Single-Reel Drive:
1012797
A
B
Figure 5.212: Drive Cover – Single Reel
1. Position drive cover (B) onto the reel drive and secure it
with four bolts (A).
