MacDon D65 - Replacing Reel Drive Sprocket; Removing Reel Drive Sprocket

214327 232 Revision B
1012801
A

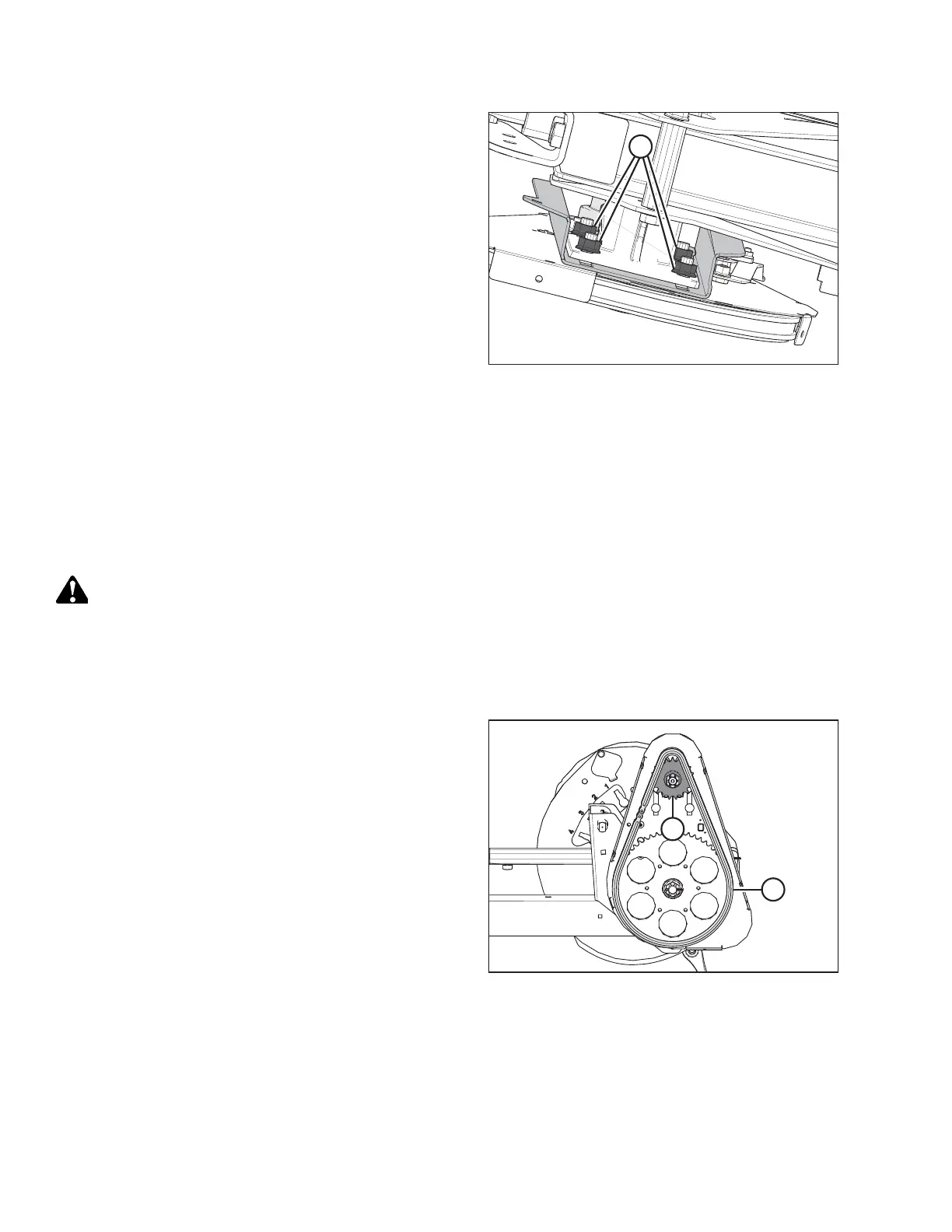

Figure 5.220: Single-Reel Drive – Viewed from
Underside of Reel
5.9.3 Replacing Reel Drive Sprocket
The reel drive sprocket is attached to the reel drive motor.
Removing Reel Drive Sprocket
The reel drive sprocket is attached to the reel drive motor.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine,
remove the key, and engage the safety props before going under the header for any reason.
1. Shut down the engine, and remove the key from the ignition.
2. Loosen the drive chain. For instructions, refer to Loosening Reel Drive Chain, page 229.
1012804
A
B
Figure 5.221: Reel Drive
3. Remove drive chain (A) from drive sprocket (B).
