MacDon D65 - Endshields; Opening Endshield

214327 35 Revision B
1001697
B
A

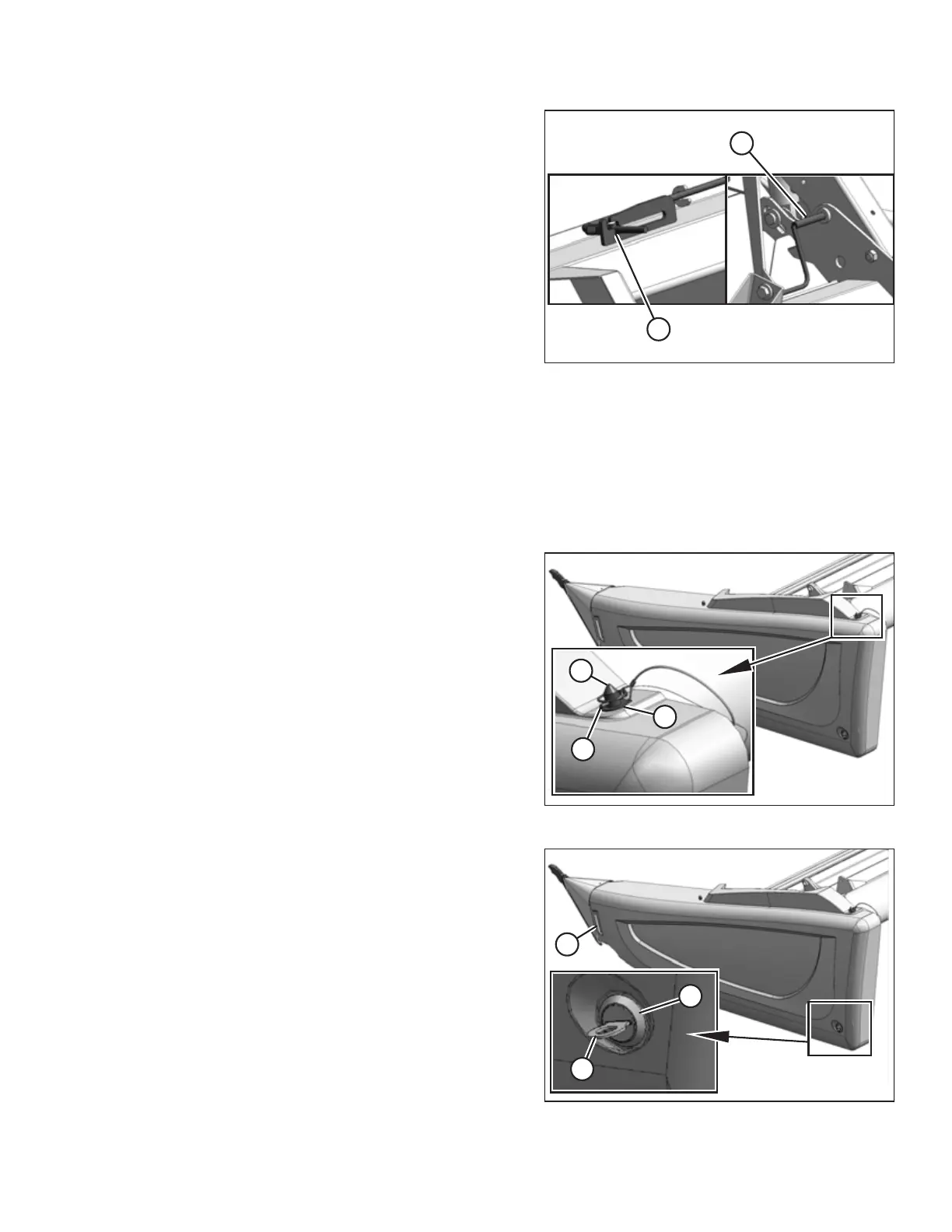

Figure 3.6: Reel Safety Prop – Center Arm
5. Double-reel headers, center reel arm: Use handle (B) to
move lock rod (A) to the outboard position.
3.2.3 Endshields
A hinged, polyethylene endshield is fitted on each end of the header.
Opening Endshield
The header endshields cover components. To access the components you will need to open the endshield.
10013651001365
A
B
C
Figure 3.7: Left Endshield
1. Remove lynch pin (A) and tool (B) from pin (C) at the top
rear of the endshield.
1004156
A
C
B
Figure 3.8: Left Endshield
2. Use tool (B) to unlock latch (A) at the lower rear corner of
the endshield.
3. Lift the endshield at the aft end to clear the pin at the top
rear of the endshield.
4. Swing the endshield out and away from the header while
maintaining forward pressure to prevent the endshield
from slipping out of tab (C) at the front of the endsheet.
OPERATION
