MacDon D65 - Tightening Reel Drive Chain

214327 230 Revision B
1012799
B
C
A

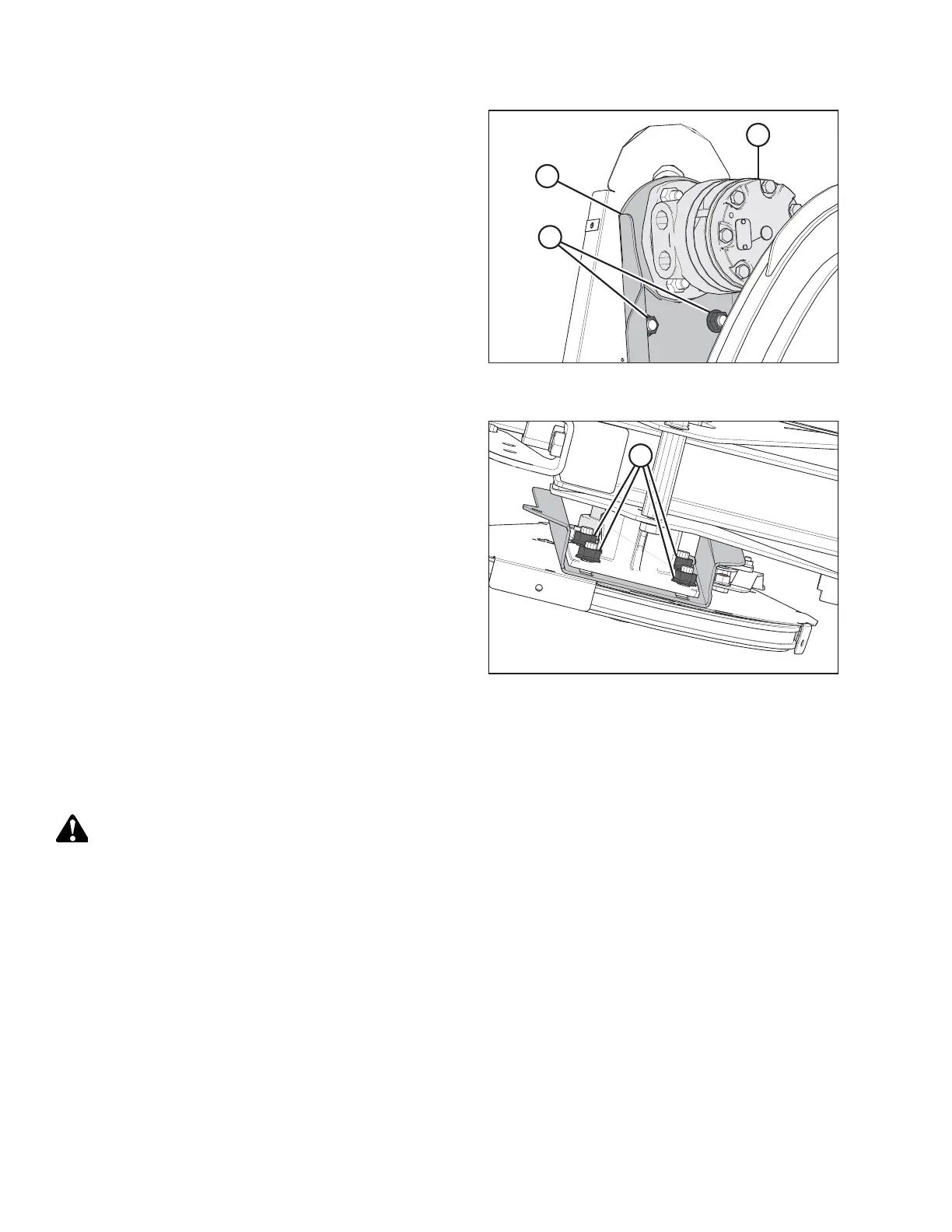

Figure 5.215: Single-Reel Drive Shown – Double-Reel
Drive Similar
1012801
A
Figure 5.216: Single-Reel Drive – Viewed from
Underside of Reel
3. Loosen six nuts (A). Slide motor (B) and motor mount (C)
down toward the reel shaft.
Tightening Reel Drive Chain
A correctly tensioned drive chain ensures optimum power transfer while minimizing component wear.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine,
remove the key, and engage the safety props before going under the header for any reason.
1. Shut down the engine, and remove the key from the ignition.
