MacDon D65 - Lubricating Reel Drive Chain - Double Reel

214327 134 Revision B
1004752
A

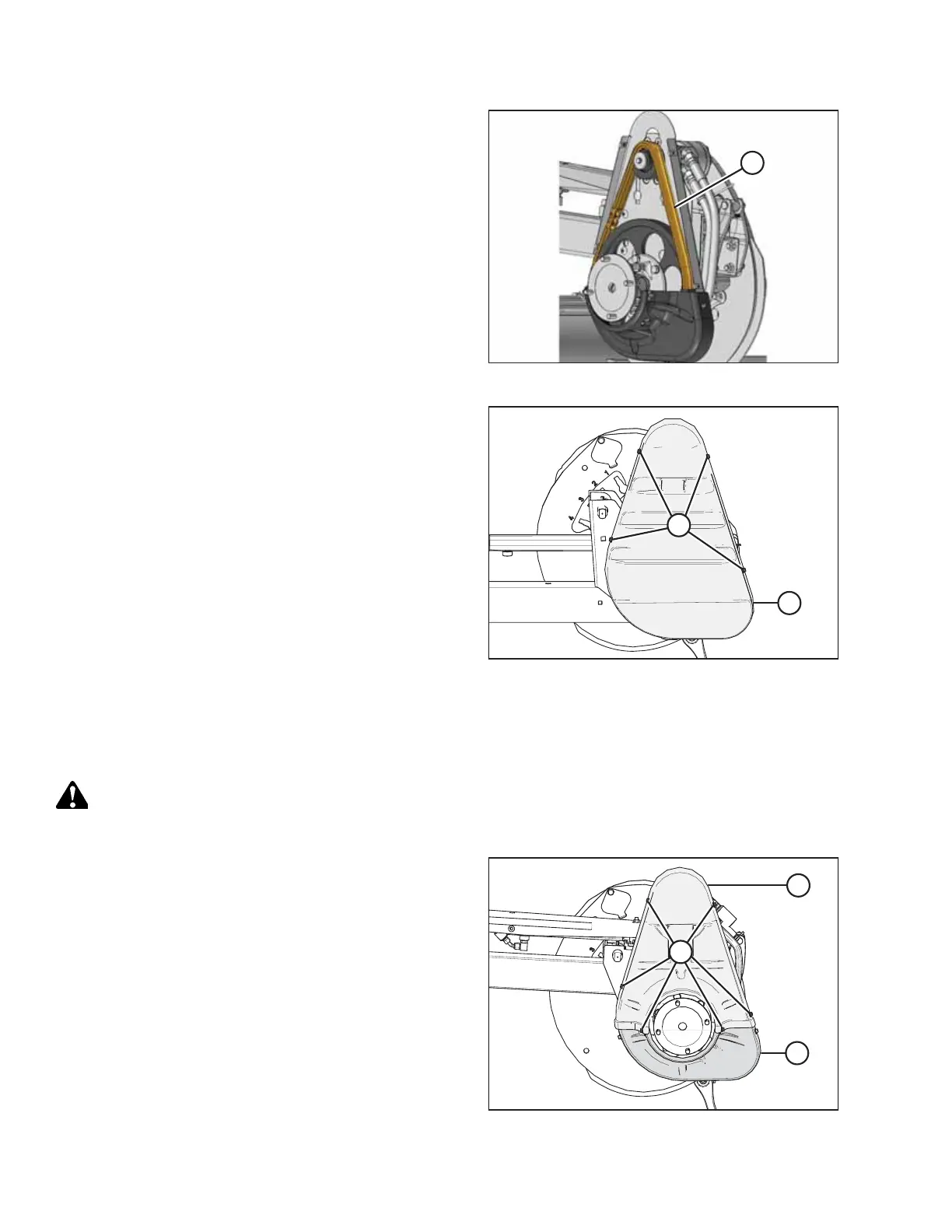

Figure 5.16: Drive Chain
3. Apply a liberal amount of grease to chain (A).
1012797
A
B
Figure 5.17: Drive Cover – Single Reel
4. Position drive cover (B) onto the reel drive and secure it
with four bolts (A).
Lubricating Reel Drive Chain – Double Reel
The reel drive chain should be lubricated every 100 hours.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1012795
A
B
C
Figure 5.18: Drive Cover – Double Reel
1. Stop the engine, and remove the key from the ignition.
2. Remove six bolts (A) securing upper cover (B) to the reel
drive and lower cover (C).
MAINTENANCE AND SERVICING
