5.9 Reel
All 7.6 m (25 ft.) and smaller headers have single reels, 9.1–10.7 m (30–35 ft.) headers are available in single-reel and
double-reel versions, and all headers larger than 10.7 m (35 ft.) are only available in double-reel configurations. Single reels
are driven from the right arm and double reels are driven from the center arm.
5.9.1 Replacing Reel Drive Cover
The reel drive cover protects the reel drive components from dirt and debris.
Removing Reel Drive Cover
The reel drive cover protects the reel drive components from dirt and debris.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
Single-reel drive:

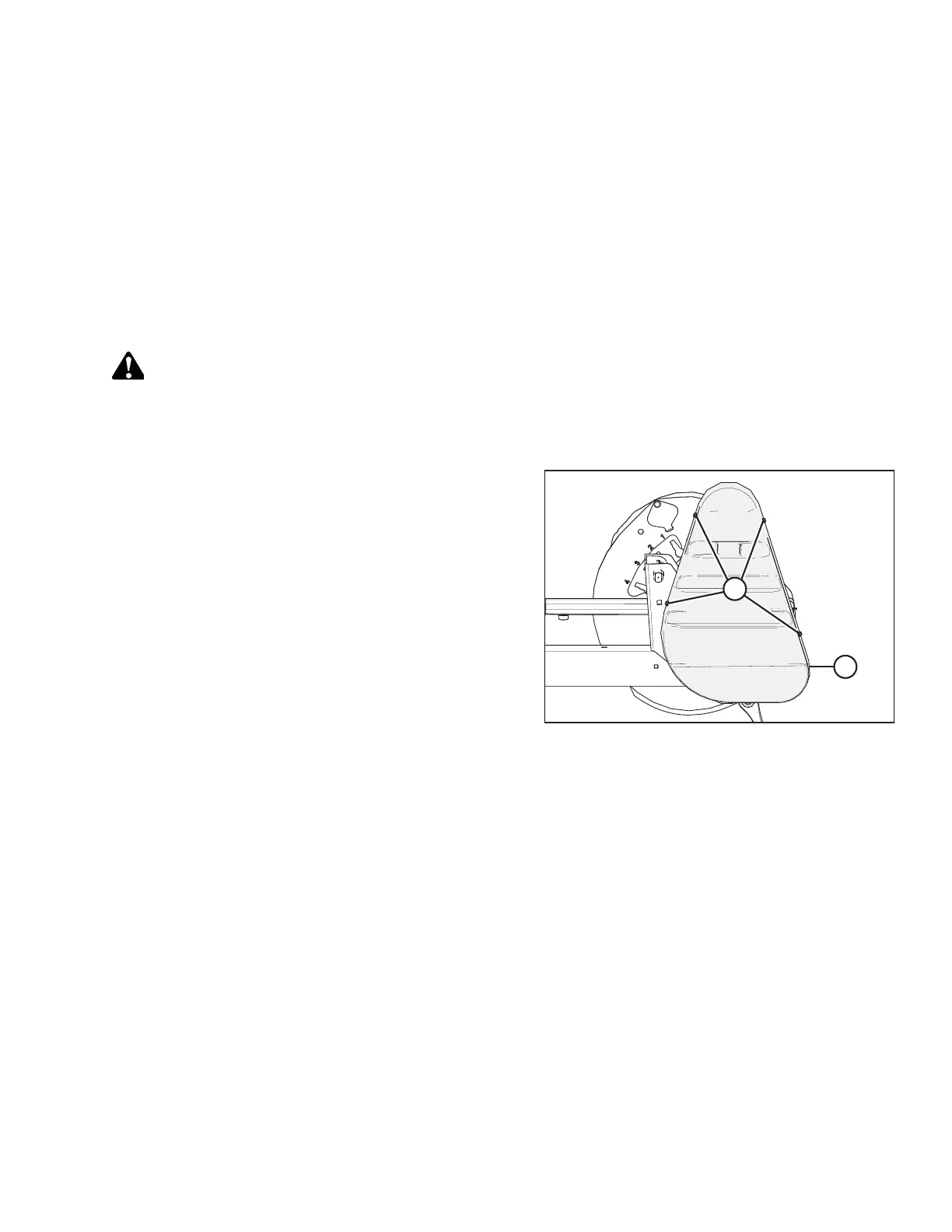

Figure 5.209: Drive Cover – Single Reel
1. Stop the engine, and remove the key from the ignition.
2. Remove four bolts (A) securing cover (B) to the reel drive.
