MacDon D65 - Replacing Draper Idler Roller Bearing

214327 190 Revision B
1009590
A

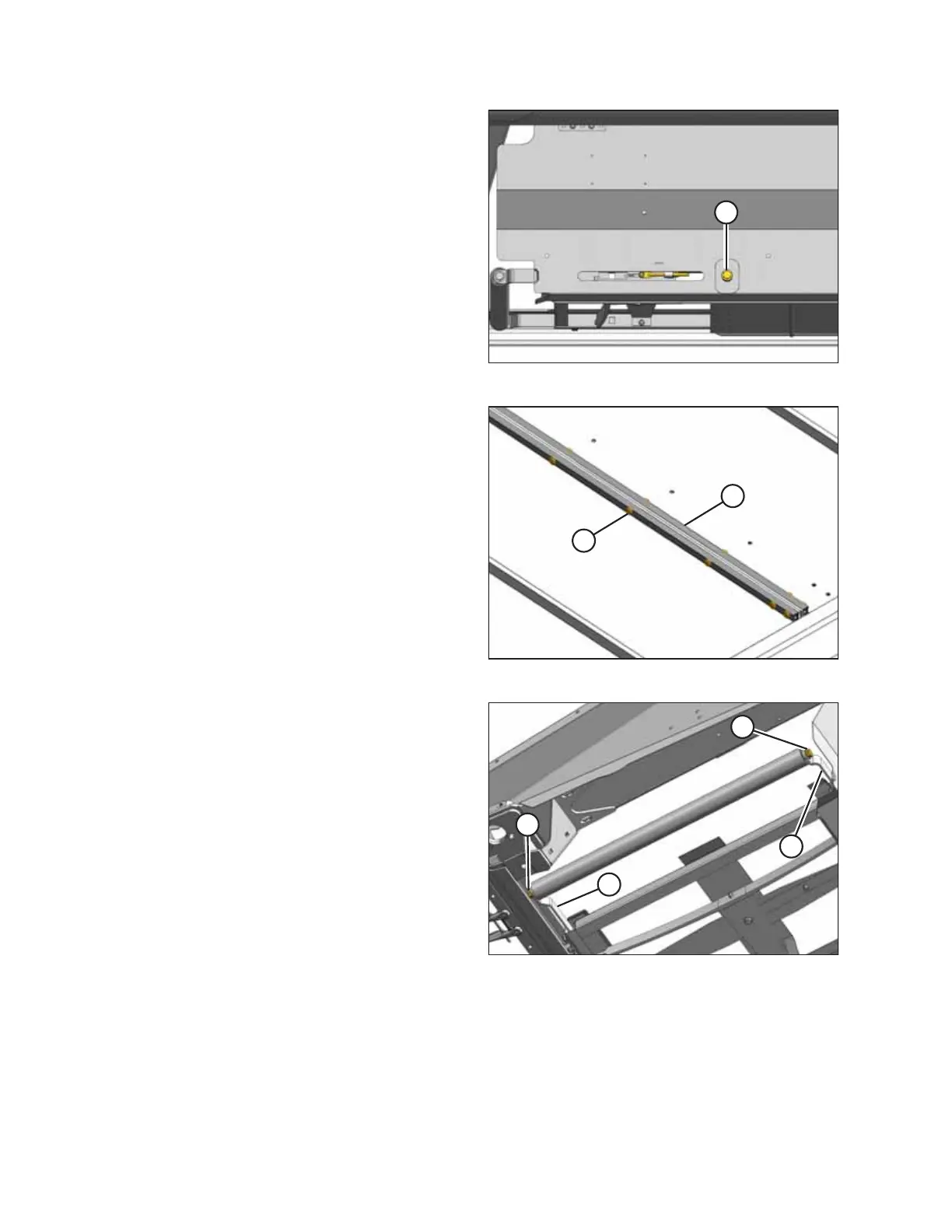

Figure 5.126: Tensioner
7. Loosen the draper by turning adjuster bolt (A)
counterclockwise.
1010063
A
B
Figure 5.127: Draper Joint
8. Remove screws (A), tube connectors (B), and nuts from the
draper joint to uncouple the draper.
9. Pull the draper off the idler roller.
1009591
A
B
C
A
Figure 5.128: Idler Roller
10. Remove bolts (A) and washers at the ends of the idler roller.
11. Spread roller arms (B) and (C) and remove the idler roller.
Replacing Draper Idler Roller Bearing
The bearing helps the roller turn. The bearing needs to be removed when replacing it.
1. Remove the draper idler roller assembly. For instructions, refer to Removing Draper Idler Roller, page 189.
MAINTENANCE AND SERVICING
