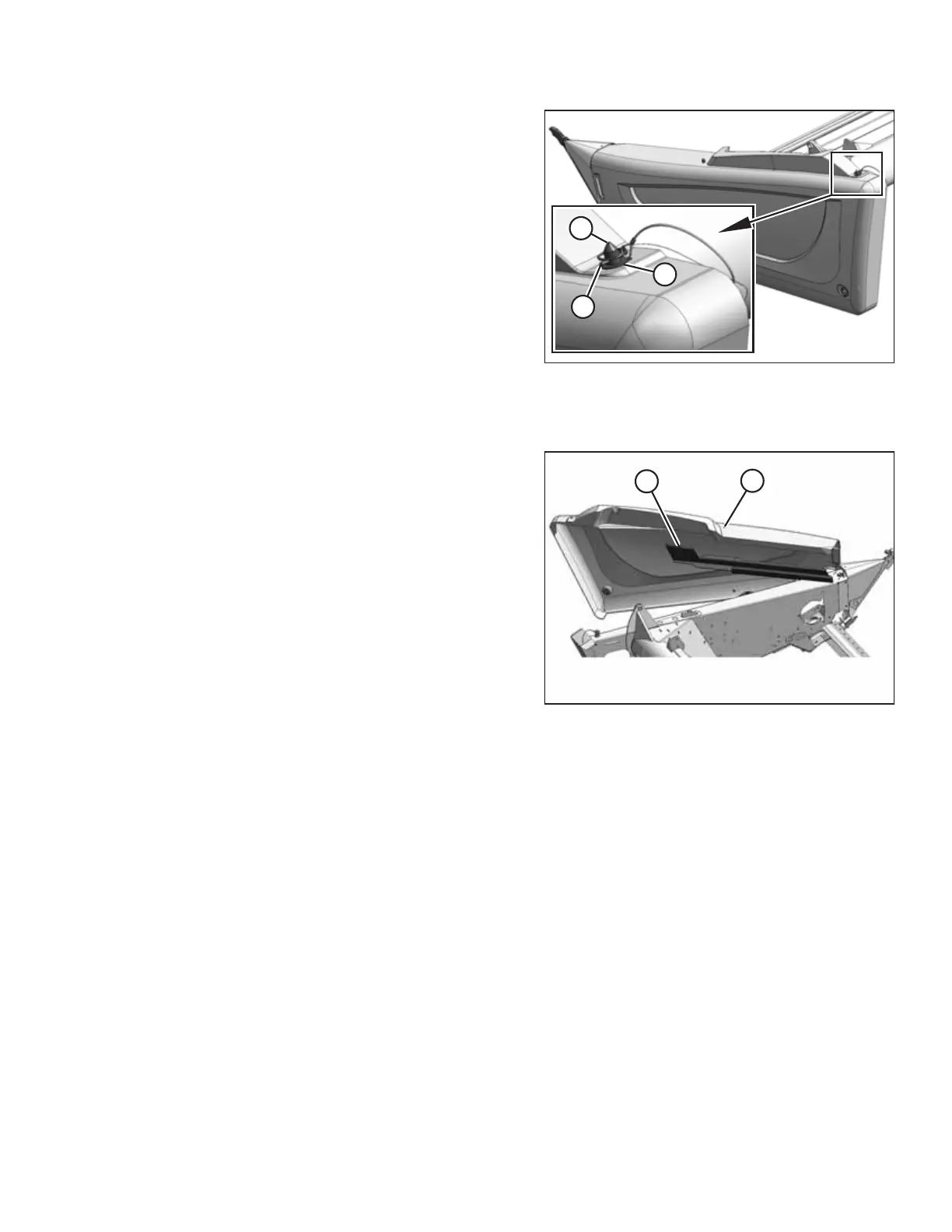

Figure 3.12: Left Endshield Pin
5. Replace tool (B) and lynch pin (A) on top pin (C).
Removing Endshield
1001228
A
B
Figure 3.13: Left Endshield
1. Open the endshield. For instructions, refer to Opening
Endshield, page 35.
2. Remove acorn nut (A) securing the endshield to
support (B).
3. Lift the endshield off support (B).
