6.4.8 Swath Forming Rods (Center Delivery)
Swath forming rods form windrows so the heads are in the center and protected from shatter. Swath forming rods are
mainly used for grass seed cutting applications.

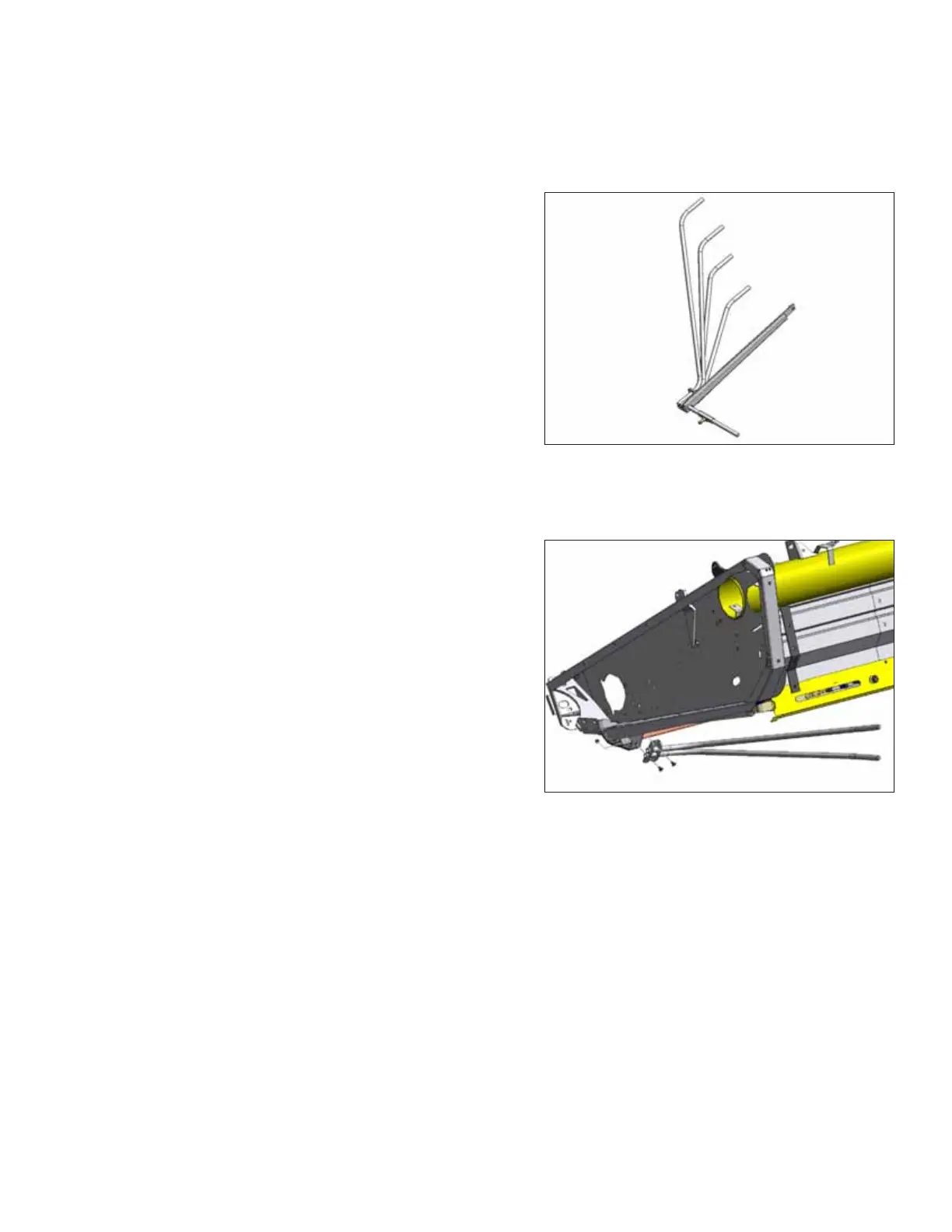

Figure 6.17: Swath Forming Rods
Installation and adjustment instructions are included with
the kit.
MD #B4803
6.4.9 Swath Deflector Rods (End Delivery)
Figure 6.18: Swath Deflector
End delivery deflector rods are used for double windrowing with
end delivery only, but can be left in place for center delivery.
The deflector rods help prevent delivered crop at the opening
from interfering with the standing crop.
Installation and adjustment instructions are included with the
bundle.
Order bundles according to left or right side:
• Left Side – MD #B5088
• Right Side – MD #B5089
