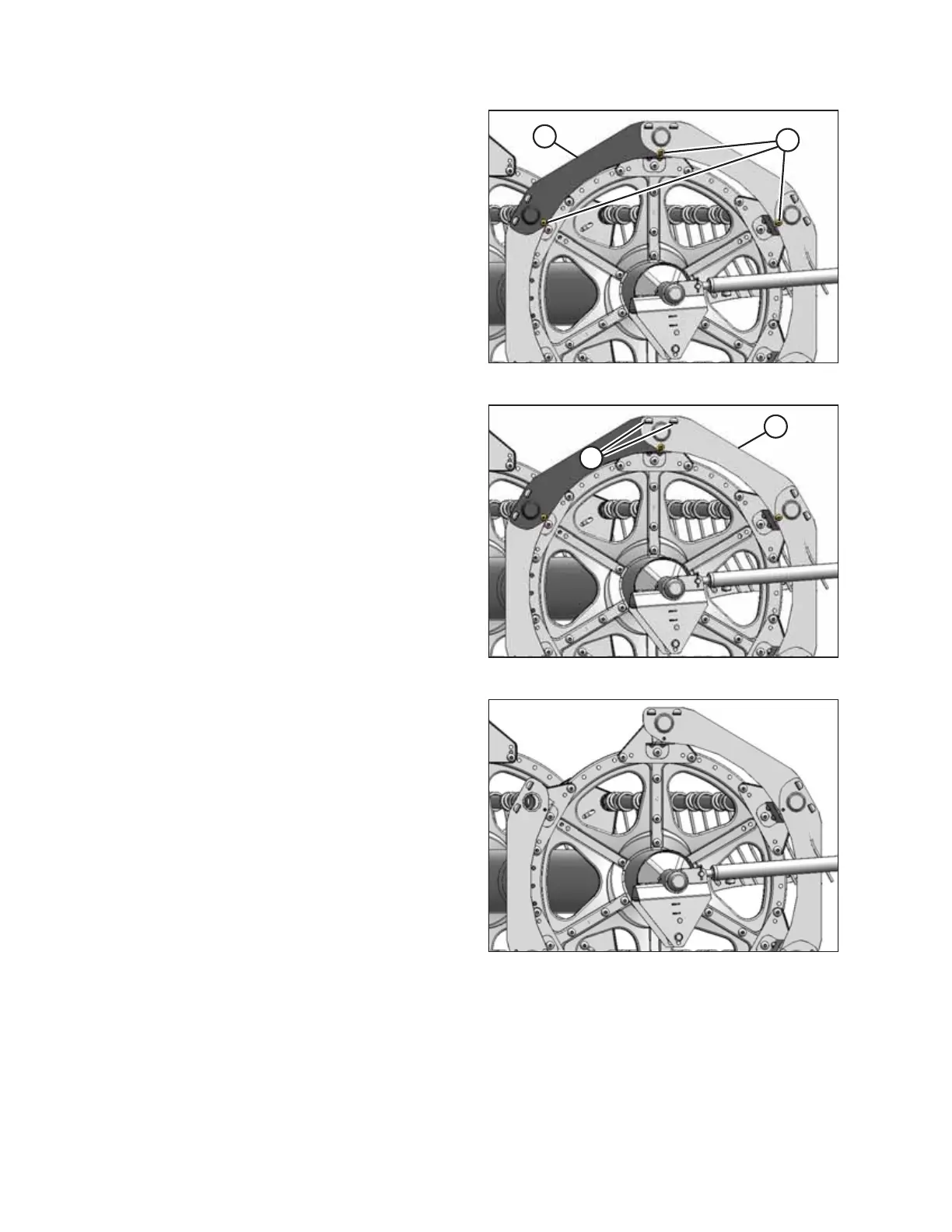

Figure 5.203: Reel Endshields
1. Lower the header and reel, shut down the engine, and
remove the key from the ignition.
2. Rotate the reel manually until reel endshield support (A)
requiring replacement is accessible.
3. Remove three bolts (B).
1005467
A
B
Figure 5.204: Reel Endshields
4. Lift the end of reel endshield (A) off support (B).
1005468
Figure 5.205: Reel Endshields
5. Remove the reel endshield from the supports.
