214327 201 Revision B

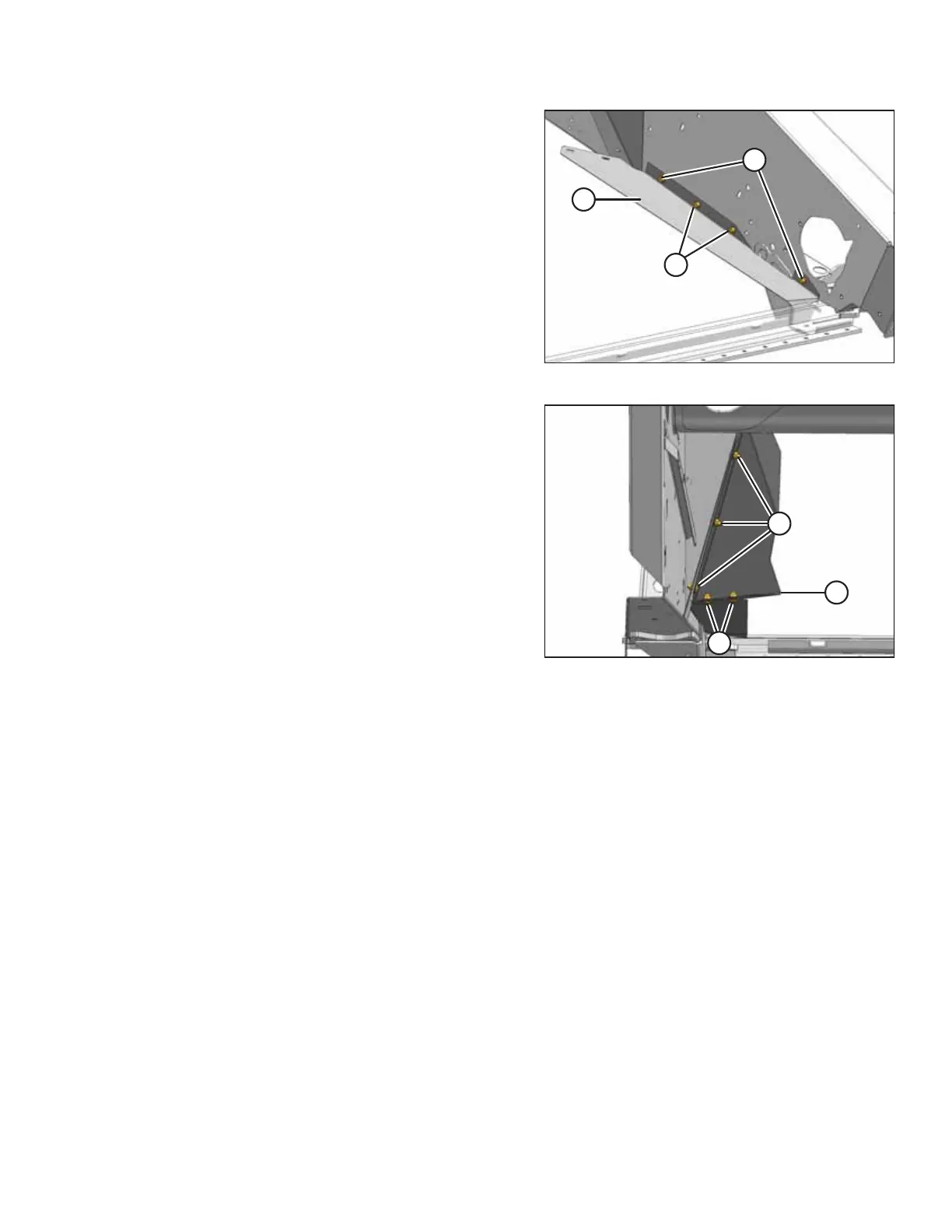

Figure 5.150: Forward Deflector
8. Position forward deflector (B) onto the endsheet and
temporarily install forward and aft 3/8 in. x 5/8 in. self-
tapping screws (A).
9. Check the fit of the forward end of deflector (B) on the
cutterbar and ensure there is no gap between the deflector
and cutterbar. Remove and bend the deflector as required
to obtain the best fit.
10. Install two 3/8 in. x 5/8 in. self-tapping screws (C), then
tighten all four screws (A) and (C).
Figure 5.151: Aft Deflector
11. Position aft deflector (C) as shown and install three
3/8 in. x 3/4 in. carriage bolts (B) and lock nuts.
12. Install two Torx
®
head screws (A) and lock nuts with the
heads facing down.
13. Tighten all fasteners.
14. Repeat this procedure for the opposite end of the header.
