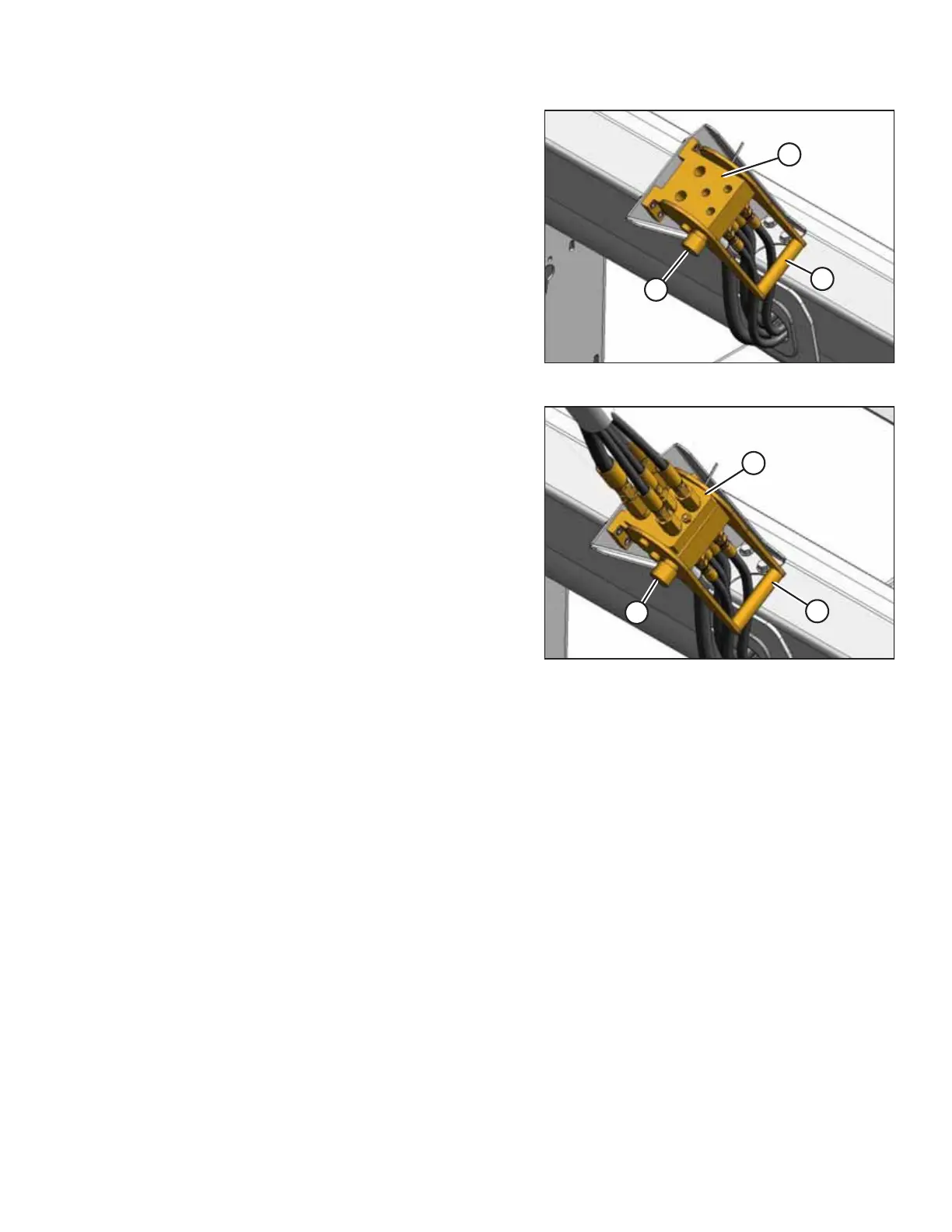

Figure 4.6: Reel Hydraulics Receptacle
11. Open the cover on header receptacle (A).
12. Push in lock button (B) and pull handle (C) to the half-open
position.
1003804
A
B
C
Figure 4.7: Reel Hose Connection
13. Remove the hose bundle with multicoupler (C) from the
windrower, place the multicoupler onto the header
receptacle, and push handle (B) to engage the
connector pins.
14. Push the handle away from the hoses until lock button (A)
snaps out.
15. Raise and lower the header and the reel a few times to
allow trapped air to pass back to the reservoir.
