214327 114 Revision B

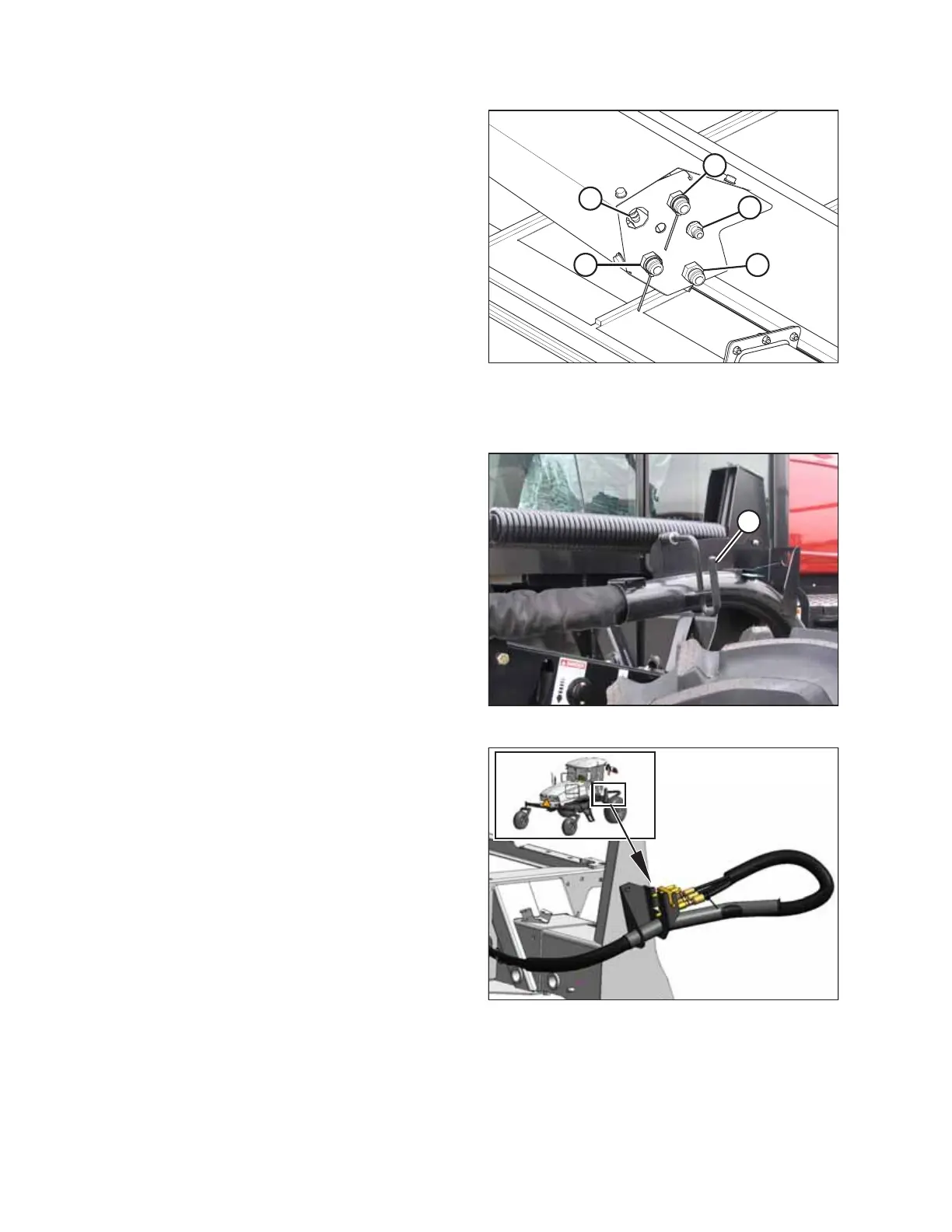

Figure 4.3: Header Receptacles
A - Electrical Receptacle B - Knife Drive
C - Case Drain (Double Knife) D - Draper Drive
E - Return
5. Push the hose connectors onto the mating receptacle until
the collar on the receptacle snaps into locked position.
6. Remove the cover from electrical receptacle (A).
7. Push the electrical connector onto the receptacle and turn
the collar on the connector to lock it in.
8. Attach the cover to the mating cover on the windrower’s
wiring harness.
Figure 4.4: Hose Storage
9. Lower lever (A) and engage it in down position.
Figure 4.5: Reel Hose Storage
10. Before connecting the reel hydraulics, check the fittings. If
the fittings are dirty, clean them.
